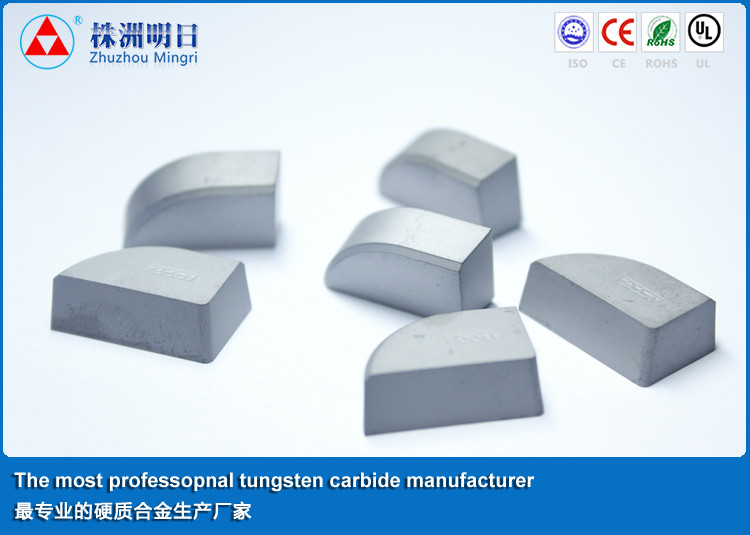

• Tungsten Carbide Brazed Tips
Tungsten Carbide Brazed Tips

Tungsten Carbide Brazed Tips

Product Details:

Place of Origin: China
Brand Name: RIXIN
Certification: ISO9001:2008
Model Number: Model A32,40,50

Payment & Shipping Terms:

Minimum Order Quantity: 10Kg
Price: $ 45.00-65.00USD per kilogram
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing.
Delivery Time: 7-20 days depending on the quantity
Supply Ability: 30TON PER MONTH
Get Best Price Contact Now

Detail Information

Material: Tungsten Carbide, Cobalt Product Name: Tungsten Carbide Welding Blades Model A32,40,50
Application: Cutting Tools Grade: YT5/P30 ,K05-K20,P10-P30
Hardness: 90.5 HRA T.R.S: 2200 MPa
Density: 12.9 G/cm³
High Light:

brazing carbide tips


brazed carbide tools

Product Description

Tungsten Carbide Brazed Tips YT5/P30 Model A12,A16,A20,A25
1, Used for steel, stainless steel, cast steel and cast iron cutting and processing.
2, Good toughness
3, Superior wear resistance & high strength
4, A comprehensive range of types with molds
5, Short deliver period,with some types always in stock
6, Full-automatic press machine,which brings stable quality and high efficiency



Tungsten Carbide Brazed Tips YT5/P30 Model A12,A16,A20,A25

Type Dimensions (mm)
L t S r
A32 32 18 10 10 18
A40 40 22 12 12 18
A50 50 25 14 14 18


Tungsten Carbide Brazed Tips 1






Density Hardness T.R.S Applications recommended
g/cm3 HRA MPa
YM3 K05 15.1 92 1400 Suitable for finishing of cast iron and nonferrous metal.
YM6X K10 14.95 91.5 1800

The finishing & semi-finishing of cast iron and nonferrous metals
 and also for the machining of manganese steel and hardening steel.

YM6 K15 14.95 90.5 1900

Suitable for the roughing of cast iron and light alloys
and also for the milling of cast iron and low-alloy steel.

YM8 K20 14.8 89.5 2200
YW1 M10 13.1 91.6 1600

Suitable for finishing and semi-finishing of stainless
 steel and conventional alloy steel.

YW2 M20 13 90.6 1800

The grade can be used for the semi-finishing of stainless steel
and low-alloy steel and it is mainly used for the machining of
railway wheel hubs.

YT15 P10 11.4 91.5 1600

Suitable for the finishing and semi-finishing for steel and
cast steel with a moderate feed rate and rather high cutting speed.

YT14 P20 11.6 90.8 1700 Suitable for the finishing and semi-finishing of steel and cast steel.
YT5 P30 12.9 90.5 2200

Suitable for the heavy duty rough turning of and cast
 steel with a big feed rate at a medium and low speed
under unfavorable working conditions.
