YG6 Yg8 Hip Sintered Tungsten Carbide Brazing Tips SS10 Carbide Tips
Product Details:
| Place of Origin: | China |
| Brand Name: | Rixin |
| Certification: | CE ROHS UL ISO |
| Model Number: | YT5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5KG |
|---|---|
| Packaging Details: | Cartons |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50+tons+per month |
|
Detail Information |
|||
| Product Name: | SS10 Carbide Tips | Material: | Tungsten Carbide |
|---|---|---|---|
| Keyword: | SS10 Carbide Tips | Usage: | Cutting Stone |
| ODM/OEM: | Yes | Size: | 15mm * 10mm * 5mm |
| Surface: | Sand Blasting | Grade: | YG8, YG6, YT5 |
| High Light: | Yg8 Carbide Brazing Tips,Hip Sintered SS10 Carbide Tips,Hip Sintered Tungsten Carbide Tips |
||
Product Description
g6 Yg8 Hip Sintered Tungsten Carbide Brazing Tips, SS10 Carbide Tips

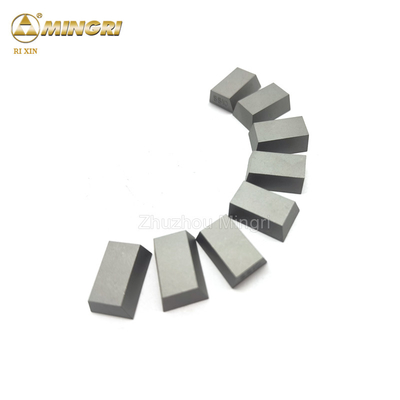

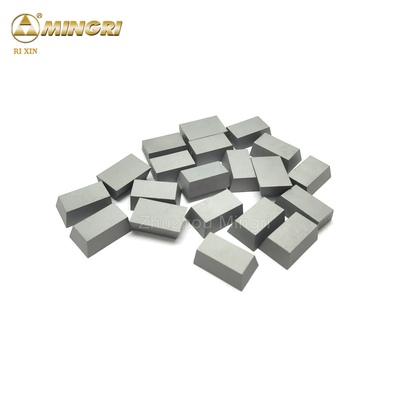

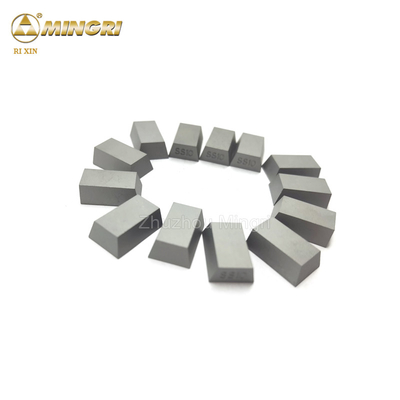

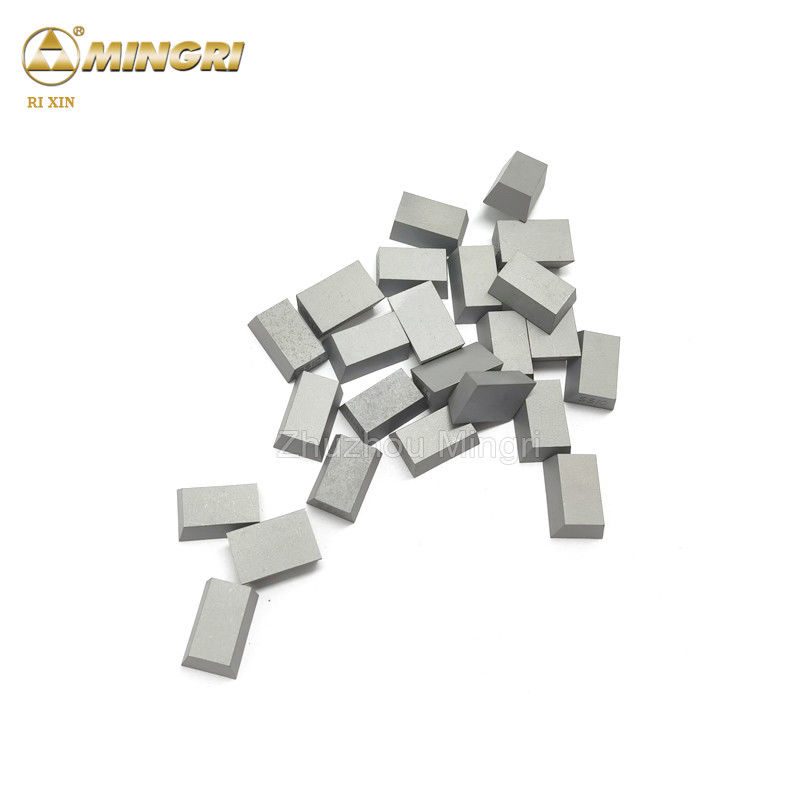

Description for SS10 carbide tips
SS10 carbide tips to be welded onto the seats on the blades for stone cutting machines, it can be used for the processing of various kinds of stones, such as limestone, sandstone, tufa stone, granite etc.
1. High quality & virgin raw material with stable properties and long working life;
2. Dark grey surface with hot sale at Kenya, Egypt and Libya market;
3. Precision dimensions with good unit weight and size accuracy;
4. Various sizes and types for your choice;
5. Longstanding old customers with over tons export amount every month.
| Grade | Density g/cm3 | Hardness HRA | T.R.S MPa | Performance&application recommend |
| YM3X | 15.2 | 92 | 1800 | suitable for finishing cast iron and nonferrous metal |
| YM6A | 14.85 | 92.5 | 2200 | suitable for the smei-finishing cast iron and nonferrous metals and also for the machining of manganese steel and hardened steel |
| YM6X | 14.9 | 91.5 | 2300 | suitable for the smei-finishing cast iron and nonferrous metals and also for the machining of manganese steel and hardened steel |
| YM6 | 14.95 | 90.5 | 2400 | suitable for finishing and semi-finishing of stainless and conventional alloy steel |
| YM8 | 14.7 | 89.8 | 2800 | suitable for finishing and semi-finishing of stainless and conventional alloy steel |
| YT15 | 11.4 | 91.5 | 1600 | suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed |
| YT5 | 12.9 | 90.5 | 2200 | suitable for the heavy cutting of steel and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions |
Packing and Shipping of SS10 carbide tips
Generally we will take care of your machine packages well like picture show.
Firstly our worker will make sure your SS10 carbide tips clean before package.
Then add plastci foam into inner box for the whole SS10 carbide tips for sweet protection.
At last we will make export standard strong cartonn or plywood case package according to your needs.
