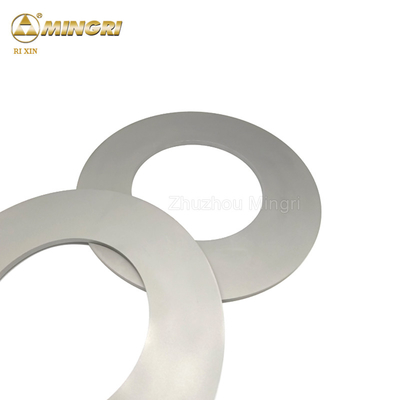

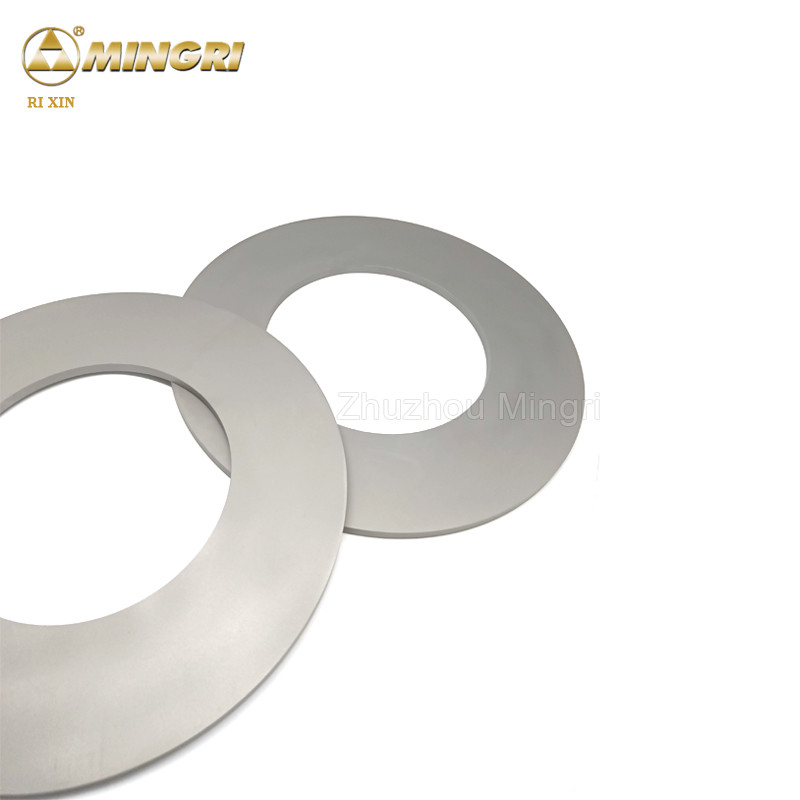

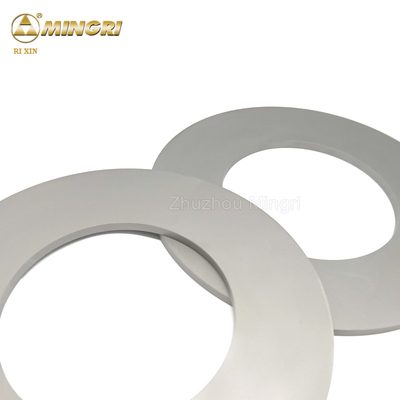

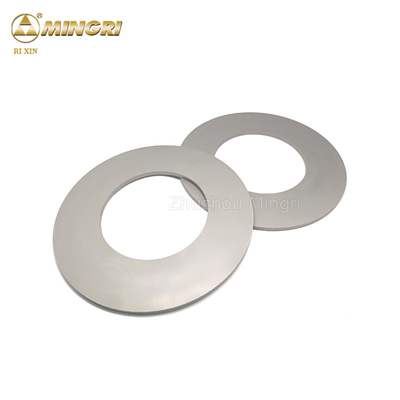

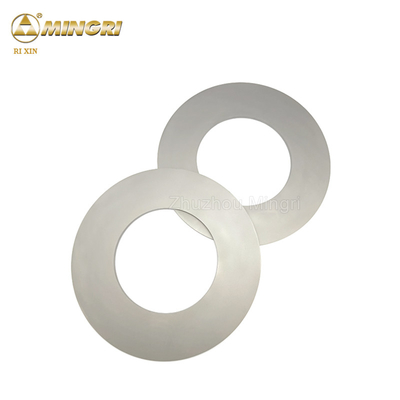

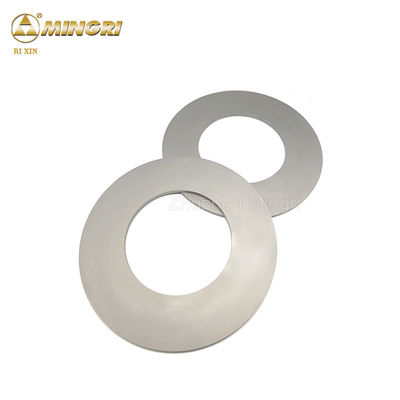

OEM / ODM Blanks Or Grinding Tungsten Carbide Shear Knife For Silicon Metal Sheet Cutting
Product Details:
| Place of Origin: | China |
| Brand Name: | Rixin |
| Certification: | CE ROHS UL ISO |
| Model Number: | 310mm*170mm*10mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 piece |
|---|---|
| Packaging Details: | Cartons |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50+tons+per month |
|
Detail Information |
|||
| Keyword: | Tungsten Carbide Shear Knife | Material: | 100% Raw Material |
|---|---|---|---|
| Usage: | Battery Cutting | Application: | Cutting Machine |
| Product Name: | Tungsten Carbide Shear Knife | Surface: | Blanks And Sand Blasting |
| Shape: | Round With Groove | Colour: | Sliver |
| MOQ: | 5PCS | Origin: | Zhuzhou City From China |
Product Description
OEM / ODM Blanks Or Grinding Tungsten Carbide Shear Knife For Silicon Metal Sheet Cuttin
Advantage of carbide cutting blade
Tungsten carbide slitter blades are also called carbide circular slitter blades.Their function is mainly to cut wider coils into narrower strips. They are widely used for slitting non-ferrous metals such as copper and aluminum, stainless steel, silicon steel coils, and high-strength steel coils. According to the material and thickness of the coil. different tool materials need to be chosen for roll shear knives.
Slitting is the most important part in the production process, so the precision of the slitting knife is very high. RIXIN use a precision grinder to process the plane of the blade, which is forged, machined, heat treated, and then specially ground
| Grade | Grain size | Density | T.R.S | Hardness | Suitable for cutting |
| g/cm3 | ≥ N/mm2 | HRA | |||
| MG30N | middle grain | 13.95-14.1 | 3000 | 87.5 | apply to regular sealing ring, die, wear part, mining tools and machining of non-ferrous cutting blades, rolling shear blade, weld assembly, suitable for cutting paper, nonferrous metals. |
| MG40N | middle grain | 13.65-13.8 | 2800 | 86.3 | apply to regular sealing ring, die, wear part, mining tools and machining of non-ferrous cutting blades, rolling shear blades ect. |
| No | OD*ID*T(mm) | No | OD*ID*T(mm) |
| 1 | 150.1*125*10 | 13 | 250*125*10.1 |
| 2 | 160*55*10.1 | 14 | 250*125*15.1 |
| 3 | 162.1*95*22.375 | 15 | 250.1*125*5 |
| 4 | 181*109*10.1 | 16 | 250.1*160*7 |
| 5 | 185.06*90*10 | 17 | 250.3*160*15 |
| 6 | 185.15*175*30 | 18 | 253*159*14.1 |
| 7 | 194*145.4*22.22 | 19 | 255*160*10 |
| 8 | 201*135*10 | 20 | 260*160*10 |
| 9 | 204*126*5.08 | 21 | 280.15*175*30 |
| 10 | 220*130*4.5 | 22 | 300.15*150*5 |
| 11 | 249.6*160*8 | 23 | 315*280*20 |
| 12 | 250*160*10 | 24 | 340*225*20 |
Appllication of carbide cutting blade
Widely use for silicon steel sheet cutting, thickness 0.5-0.7mm
Production and test of carbide cutting blade
1. We offer technical support regarding the selection of the most suitable tungsten carbide grade and heat treatment, for all metal cutting application.
2. Original and qualified standard tungsten carbide materials come from top suppliers.
3. High hardness, strict tolerance, super cutting quality, durable sharpness, long life service.
4. Door to Door, fast and convenient delivery service, provided by DHL, FedEx, UPS, TNT, EMS etc.
5. OEM service is always available. Please feel free to tell us the requirement and specification of your company.
6. Long time after sales service. We always stand by you and follow the cutting effect of our products, anytime you want, we are glad to give you a hand.
Packing and delivery of carbide cutting blade
Because of the high density but small size, tungsten Carbide Processing products are carefully packaged to minimize the risk of damage during transit. Cemented carbide products are packaged in sturdy boxes and sealed to ensure that they reach their destination safely. Packaging materials used include bubble wrap, foam, bubble bags, cardboard, and other appropriate materials provided as necessary.
We use only the highest quality packaging materials to ensure the safe arrival of your products.
We ship our products using reliable and efficient courier services, especially by air.
We mainly offer express shipping for urgent orders like DHL, FedEx, UPS, etc.
company information
Rixin is technically reliable with over 20+ years of manufacturing experience in all types of industrial knives and blades. When you use Rixin knives and blades, you save money and worries about replacing them.
We are located in one of the largest production bases of Tungsten carbide products, we have a strong ability to access almost all quality steel and other materials available in the industry. Rixin manufactures all your knives and machines from the best quality steels procured from ISO 9001 certified mills and suppliers.
If you are looking for machine knives with extra longevity, less machine downtime, and fast turnaround time, Rixin is ready to help, we are super easy to work with!
