Marble Stone Cutting Wear Resistance Tungsten Carbide Cutter Carbide Chain Saw Insert
Product Details:
| Place of Origin: | China |
| Brand Name: | Rixin |
| Certification: | CE ROHS UL ISO |
| Model Number: | YG6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5KG |
|---|---|
| Packaging Details: | Cartons |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50+tons+per month |
|
Detail Information |
|||
| Product Name: | Carbide Stone Cutting Insert | Material: | Tungsten Carbide |
|---|---|---|---|
| Keyword: | Carbide Stone Cutting Insert | Usage: | Cutting Marble Stone |
| ODM/OEM: | Yes | Size: | 12mm * 12mm * 6mm |
| Surface: | Sand Blasting | Grade: | YG8, YG6 |
| Delivery Time: | 15 Days | Packing: | Carton |
| High Light: | Wear Resistance Carbide Stone Cutting Insert,YG8 Carbide Stone Cutting Insert,Carbide Chain Saw Insert |
||
Product Description

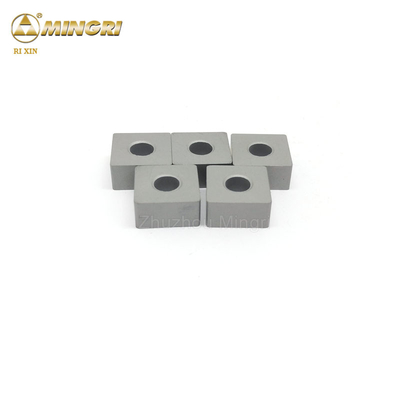

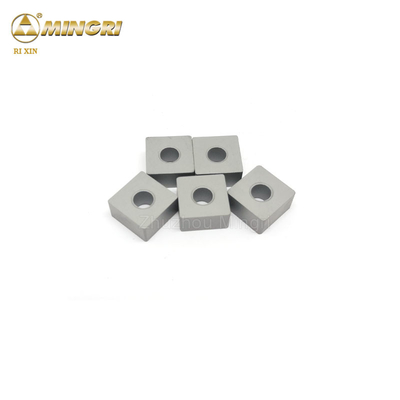

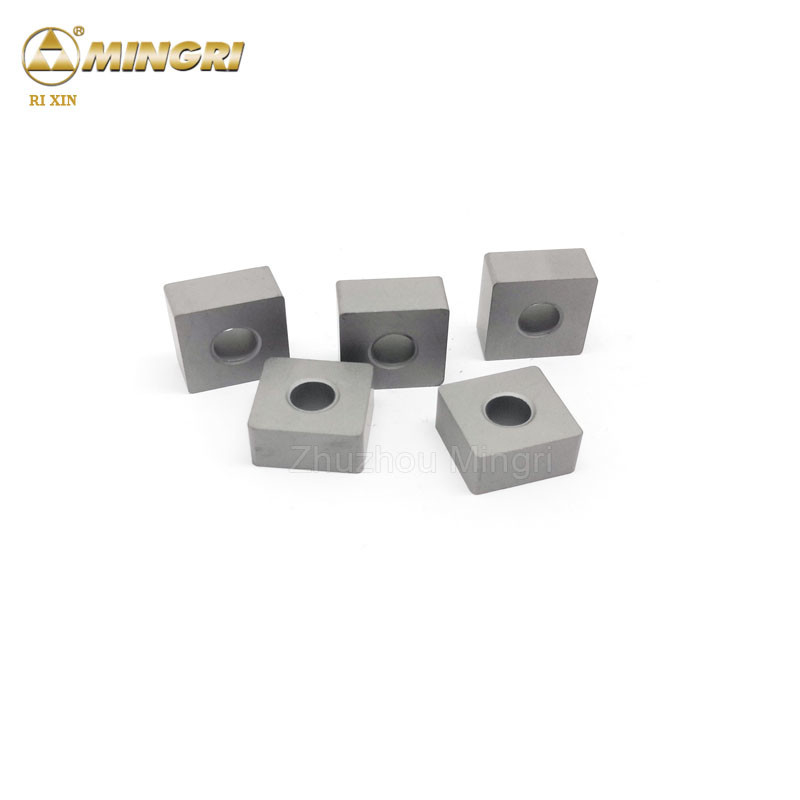

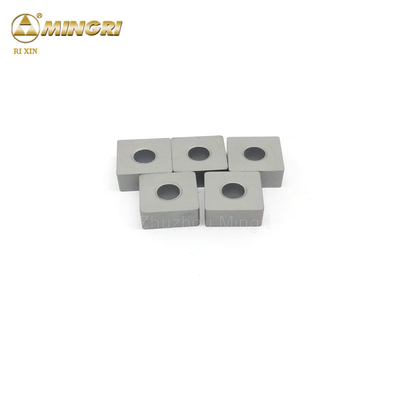

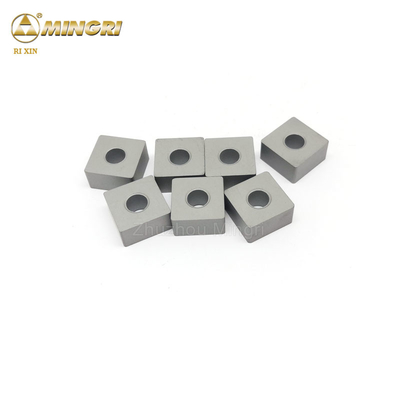

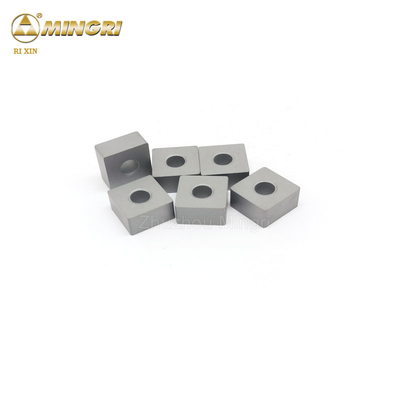

Marble Stone Cutting Wear Resistance Tungsten Carbide Cutter Carbide Chain Saw Insert
Description for carbide tips
As for carbide stone cutting inserts, below are the general features for your reference. For more details of specific type, please inform us.
A. Made of selective raw material, improve product stable properties and longer life time;
B. Special grades for different stones and countries, can provide optimum solutions for customers;
C. Improved process, ensuring higher strength
D. Pressed with precision molds, therefore have better dimensional accuracy;
E. Performed careful surface treatment, the products have better appearance;
F. Full range of sizes available, saving cost and delivery time;
| Grade | Density g/cm3 | Hardness HRA | T.R.S MPa | Performance&application recommend |
| YM6A | 14.85 | 92.5 | 2200 | suitable for the smei-finishing cast iron and nonferrous metals and also for the machining of manganese steel and hardened steel |
| YM6X | 14.9 | 91.5 | 2300 | suitable for the smei-finishing cast iron and nonferrous metals and also for the machining of manganese steel and hardened steel |
| YM6 | 14.95 | 90.5 | 2400 | suitable for finishing and semi-finishing of stainless and conventional alloy steel |
| YM8 | 14.7 | 89.8 | 2800 | suitable for finishing and semi-finishing of stainless and conventional alloy steel |
| YT15 | 11.4 | 91.5 | 1600 | suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed |
| YT5 | 12.9 | 90.5 | 2200 | suitable for the heavy cutting of steel and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions |
Our advantage of carbide tips
1. 100% raw material tungsten carbide.
2. ISO quality and environment certificate.
4. Fully adopted in advance technology and equipment.
5. Professional manufacturer over 21 years experience.
6. Quality Control System and strict inspection.
7. OEM and ODM are accepted as well.
Production of carbide tips
1, all raw materials are tested in terms of density, hardness and T.R.S before use
2. every piece of product goes through in-process and final inspection
3, every batch of product can be traced.
4, After semi-products quality is ok, then put into sintering furnace for HIP sintering
5, finished full products inspection
6, good packing to avoid products into break
Packing and Shipping of carbide tips
1, we will take care of your machine packages well .
2, our worker will make sure your carbide tips clean before package.
3, add plastci foam into inner box for the whole carbide tips for sweet protection.
4, we will make export standard strong cartonn or plywood case package according to your needs.
