Wood Cutting Carbide Rotary Burr Cutter Blanks Tungsten Carbide Tips
Product Details:
| Place of Origin: | Zhuzhou, Hunan, China |
| Brand Name: | RiXin |
| Certification: | ISO9001:2008; ISO14001:2004 |
| Model Number: | Tungsten carbide tip |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 KG |
|---|---|
| Price: | USD+49~69+KG |
| Packaging Details: | paper, then paper boxes, then exported wooden cartons or paper cases,or packed as customers'requirement. |
| Delivery Time: | 7 to 10 working days depending on the order quantity and requirements |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 tons/month High Quality Wood Cutting Carbide Rotary Burr Cutter Blanks / Tungsten carbide tip |
|
Detail Information |
|||
| Product Name: | High Quality Wood Cutting Carbide Rotary Burr Cutter Blanks / Tungsten Carbide Tip | Material: | Tungsten Carbide, Cemented Carbide, Widia |
|---|---|---|---|
| Grade: | YG6, YG8, YK05, KK06H, YG8C, ZD15, YG9C, YG10C, YG11C, YG13C, YG15C, YG15 | Surface: | Ground, Sintered Blasting, Nickel Coating, Tumble Finishing |
| Hardness: | HRA 85-90.5 | Keywords: | Tungsten Carbide Tip, Carbide Burr, Tungsten Carbide Burr, Tungsten Carbide Cutting Tip |
| Size: | Customized Or Standard | Sample: | Acceptable |
| Application: | Tungsten Carbide Rotary Burr | ||
| High Light: | Wood Cutting Carbide Rotary Burr,ISO9001 Tungsten Carbide Rotary Burr,YG9C Tungsten Carbide Tips |
||
Product Description

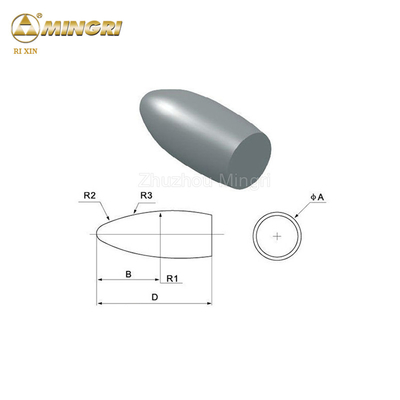

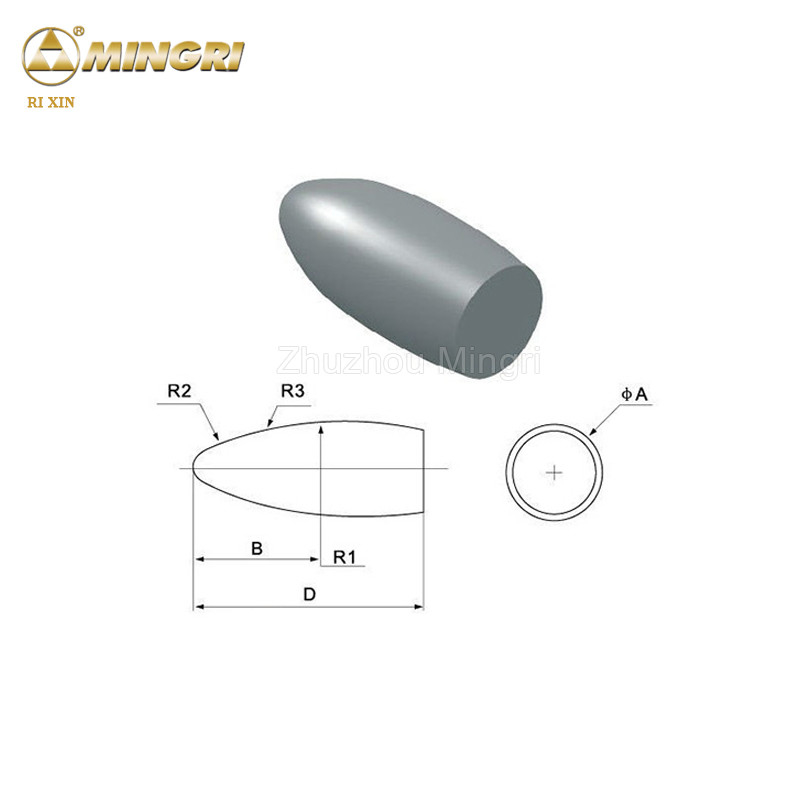

High Quality Wood Cutting Carbide Rotary Burr Cutter Blanks / Tungsten carbide tip
Description
| Item | Tungsten carbide bur |
| Grade | YG6, YG6A, YG8, YS2T, YL10.2, K10, K20, K30 ETC. |
| Type | A,B,C,D,E,F,G,H,L,M,N |
| Brand | Rixin |
| Country of Origin | Zhuzhou, China |
| Usage | Used for deburring, cleaning, finishing, smoothing, shaping, and carving many types of materials. |
widely using on all kinds industrial department ,like machine,cars,vessel,Craft sculpture etc.
1.Fine finishing on all kinds of metal mould cavity,like shoes mould.
2.working on all kinds of metal and nonmetal's Craft sculpture.
3.cleaning those trimming,burrs and weld line on casting ,forge and weldment part.
4.chamfering and rounding and processing the bore surface on machine part , cleaning the pipeline.
5 sleeking on the impeller runner part.
Grades:
| Grade | Density | T.R.S MPa |
Hardness HRA |
Performance & application recommended |
| YM6 | 14.9 | 2400 | 90.5 |
Good wear resistance, used for hard wood, used for processing original wood, aluminum section bar, brass rod and cast iron. |
| YM6A | 14.85 | 2000 | 92.5 |
Wear resistance higher than YM6, used for processing hard wood, original wood, aluminum section bar, brass rod and cast iron. |
| YM8 | 14.7 | 2800 | 89.8 | High wear and impact resistance , suitable for machining dry wood, soft wood and non-ferrous metal section bar. |
| YM2T | 14.25 | 2400 | 92 | Fine grain alloy, with high wear resistance, bending strength, bonding resistance and thermal strength. It is suitable for machining refractory alloys, stainless steel, high manganese steel, etc. |
| YS25 | 13.0 | 2200 | 91 | Wear resistance and strength comparatively higher, suitable for machining cast iron, non-ferrous metal and non-metal materials. |
| YM25 | 14.45 | 3000 | 91.8 |
Wear resistance and strength comparatively higher, suitable for processing cast iron, non-ferrous,metal and non-metallid materials. |
Other grades can be supplied according to customers’ requirements.

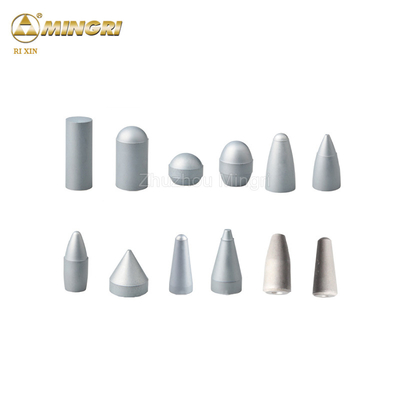

Types:
Other types can be supplied according to customers’ requirements.
Application:
Package:
| Packing | Paper+paper boxes+exported wooden cartons or paper cases. As a manufacturer, Mingri can provide any kinds of package as buyer's requirement. |
| Shipping | UPS,TNT,EMS,Fedex,DHL,or as you request. |
| Delivery | 7-10 days after confirm all details. |
Main products:
We are specialized in all kinds of tungsten carbide profiles and dies, cutting tools, mining tools, wear parts and all kinds of non-standard customized tool parts with high performance in the industry.
