• Triangle Small Plate Tungsten Carbide Scraper Blade For Clean Dirty Things In The Trough
  • Triangle Small Plate Tungsten Carbide Scraper Blade For Clean Dirty Things In The Trough
  • Triangle Small Plate Tungsten Carbide Scraper Blade For Clean Dirty Things In The Trough
  • Triangle Small Plate Tungsten Carbide Scraper Blade For Clean Dirty Things In The Trough

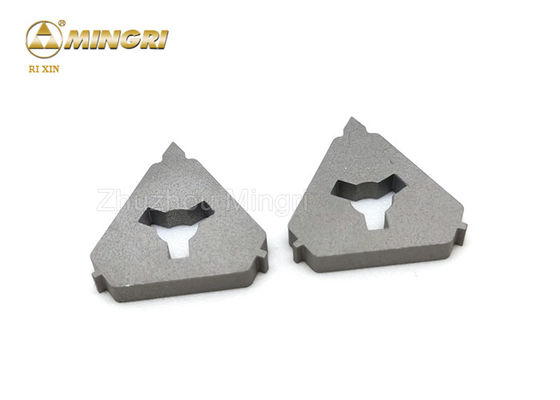

Triangle Small Plate Tungsten Carbide Scraper Blade For Clean Dirty Things In The Trough

Triangle Small Plate Tungsten Carbide Scraper Blade For Clean Dirty Things In The Trough

Product Details:

Place of Origin: China
Brand Name: rixin
Certification: CE,ISO9001:2015
Model Number: carbide strip blade

Payment & Shipping Terms:

Minimum Order Quantity: 1 kg
Price: 32-42$ /kg
Packaging Details: step 1, wrapped carbide strips in plastic foam to avoid carbide strips to broke step 2, put the carbide strips in inner small carton box step 3, put the inner box into outter carton and fill the carton with foamed plastic step 4, wrap the carton with pa
Delivery Time: 7-25 business days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 tons/month
Get Best Price Contact Now

Detail Information

Material: WC+Cobalt Application: Cleaning Dirty Things In The Through
Size: Customized Type: Blanks
K1: Carbide Cutter K2: Tungsten Carbide Blade
K3: Scraper Blade K4: Carbide Scrapper Tip
K5: Triangle Tct Tip
High Light:

tungsten carbide bar

,

tungsten carbide plate

Product Description



Grades of  Triangle small plate Tungsten Carbide Scraper Blade For Clean Dirty things in the trough





Properties and applications of carbide blade
Grade Density T.R.S
MPa

Hardness

HRA

Performance & application recommended
RX6 14.9 2150 90

Good wear resistance, used for hard wood, used for

processing original wood, aluminum section bar, brass rod and cast iron.

RX6A 14.9 1860 92

Has wear resistance higher than YG6, used for processing hard wood,

original wood, aluminum section bar, brass rod and cast iron.

RX8 14.7 2320 89.5

Wear and percussion resistance ,

used for processing hard wood, soft wood, ferrous and non-ferrous.

RX2T 14.5 2350 92

Fine carbide, High wear resistance, high bending strength, high resistance to bonding,

high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc.

RX25 14.5 2150 92.2

Wear resistance and strength comparatively higher,

suitable for processing cast iron, non-ferrous,metal and non-metallid materials.

Other grades of strips may be offered according to customers' requirement.





Triangle Small Plate Tungsten Carbide Scraper Blade For Clean Dirty Things In The Trough 0

Application of  TC tungsten carbide scraper blade for cleaning conveyor belt


It  can be used in many field such as woodworking, machining of refractory alloys, stainless steel, High manganese steel, for processing cast iron, non-ferrous metal and aluminum section bar, etc.



Production :



1, First all all ,carbide blade  will  start  to  prepare  the RTP powder as per customer’s requirement with our wet-grinding ball milling machine

2, Before mass production, we need to do a trial pressing and sintering using every mould, and we check the appearances and the sizes of carbide scraper blade samples with micrometer, projectors etc. to ensure that the requirements of the drawings can be met before batch production

3,  Bulk production ,press the raw materials to shape blanks,and all carbide scraper blade blanks must be passed by semi finished inspection,


4, Then sinter blanks to finish (HIP) and finished products inspection, we have 10 sets of vacuum sintering furnace and 2 sets of HIP in the factory ensure the best quality and production capacity.



5, 1). cleaning/tumbling is to make the carbide scraper blade look more beautiful.
     2).The carbide scraper blade can be ground according to customers’ order to a tolerance of +/-0.05



FAQ



1. Q :What is your main product ?

A: Tungsten carbide mining tool,cutting tools ,wear resistance parts and all kinds of cutting knives etc

2. Q:what's your price ?

A: please offer us your details or draing about the dimension and tolerance,application,we can recommend you the right grade,then we will offer you a clear quotation

3. Q:Are your products high quality ?

A: Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.

4. Q:Are you factory or trading ?

A: we are manufacturer in zhuzhou city ,more than 17 years old

5. Q: How to place an order?

A: 1. Fill your Order List in our online Inquiry System.

(Also you can directly contact our salesperson by E-mail / Skype / Whats App)

2. We will make a feedback to you ASAP after receive your order list
