High Precision Circular Tungsten Carbide Products Round Knife For Cutting Battery Film
|Place of Origin:||ZHUZHOU,HUNAN,CHINA|
|Brand Name:||RI XIN|
Payment & Shipping Terms:
|Minimum Order Quantity:||5KG|
|Price:||As per specific requirements|
|Packaging Details:||First in small cartons filled with cotton, then in bigger cartons.|
|Delivery Time:||7-20 days|
|Payment Terms:||L/C, D/A, D/P, T/T|
|Supply Ability:||50 Tons per month|
|Features:||High Hardness,Good Impact Resistance,High Wear Resistance||Material:||WC,Cobalt|
|Grade:||SH6A,SH10A,SH25,SH30,SH35||Application:||Metal And Wood Cutting|
|Surface Treatment:||Polishing,sand-blasting||Size:||Customer Requst|
tungsten carbide blade,
carbide rotary cutter

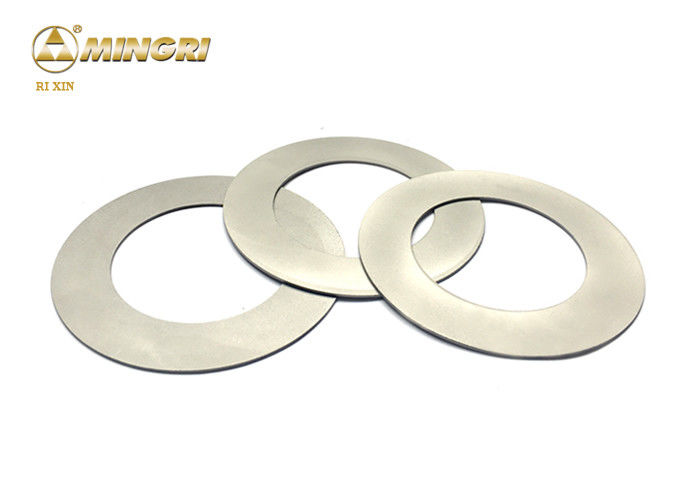

Tungsten Carbide Blade For cutting Battery Foil Cutting round knives
§.Advantages of zhuzhou mingri cemented carbide battery cutting blade
>>1.Improved durability and wear-life, up to 600% better than standard steels;
>>2.Greater productivity and less down time due to fewer blade changes;
>>3.Cleaner and more precise cuts due to reduced friction;
>>4.Reduction in start-up and end of line waste;
>>5.Better overall cutting performance in high heat and high speed cutting environments.
Tungsten carbide disc cutter is suitable for semifinishing the chilled cast iron, nonferrous
metal and its alloy. It is also suitable for semifinishing and finishing the hardened steel
and alloy steel.
Grade and Applications:
|Properties & Applications||
Fine grain alloy, good wear resistance. It is suitable for machining the chilled cast iron, nonferrous metal and its alloy. It is also suitable for semifinishing and finishing the hardened steel and alloy steel.
High wear resistance and bending strength, suitable for disc cutters in electronics industry.
Higher strength, impact and shock resistance than SH6A, but lower in wear resistance and cutting speed. It is suitable for rough machining cast iron, nonferrous metal and its alloy as well as non metallic materials at low cutting speed.
Higher strength, impact and shock resistance than SH25, but lower in wear resistance and cutting speed. It is suitable for rough machining cast iron, nonferrous metal and its alloy as well as non metallic materials at low cutting speed.
Fine grain alloy with good wear resistance. It is suitable for machining hard wood, plywood,PCB, PVC and metals.
Fine grade alloy with high wear resistance, bending strength, bonding resistance and thermal strength. It is suitable for machining plywood, PCB, PVC,refractory alloys, stainless steel and high manganese steel etc.
Moderate wear resistance and bending strength ,suitable for machining steel alloy etc.
|Description||Size||Standard Chamfer degree||
|Continuous up cutter||130*88*1.0||30 degree||26degree||Vertical||0.007-0.01|
|Continuous down cutter||130*70*3.0||90 degree||Horizontal||0.007-0.01|
|Continuous up cutter||130*97*0.7||Vertical||0.007-0.01|
|Continuous down cutter||130*95*4.0||Horizontal||0.007-0.01|
|Continuous up cutter||130*97*1.0||Vertical||0.007-0.01|
|Continuous down cutter||130*95*5.0||Horizontal||0.007-0.01|
Characteristic :The blade has good appearance,high consistency and wear resisitance,the cutting edge can pass the inspection of enlarging 200 times without chips on it.Guranteed cutting quality,long working life,also the frequency of replacing blades is very low with high cost performance
1, Soon after the order is confirmed, tungsten carbide steel knife products will start to prepare the RTP powder as per customer’s requirement with our wet-grinding machine
2, Before mass production, we need to do a trial pressing and sintering using every mould, and we check the appearances and the sizes of tungsten carbide steel knife samples with micrometer, projectors etc. to ensure that the requirements of the drawings can be met before batch production
3, Bulk production ,press the raw materials to shape blanks,and all tungsten carbide steel knife blanks must be passed by semi finished inspection,
4, Then sinter blanks to finish (HIP) and finished products inspection, we have 10 sets of vacuum sintering furnace and 2 sets of HIP in the factory ensure the best quality and production capacity.
Packing and delivery:
1. Rubber protector for cutting edges, blade in bubble pack, carton case.
Max 10 pcs blades in one carton case
2. Exterior packaging: carton or wooden case
3. Other packaging upon your request
4. We also have the professional agents shipping our products to the customers.
Enquiry: We will respond all enquiries within 24 hours (enquiries with drawings or samples) and provide quotation within 48 hours.
Order: When the order is confirmed, all the drawings and samples will be converted into CAD drawing. We will arrange time schedule for producing customer order after design drawings are confirmed by both parties. During the producing period, we will update tracking and recording progress and feedback to customers regularly.
Inspection: The inspecting work will run through the production. There is also a second inspection before delivery, in order to make sure our products are in good condition.
Packaging: All knives are packed with anti-rust paper and edge protection rubber. Corrugated paper carton will be used. Big knives will be protected by wood case with bolts. Ensure products are 100% safe and sound during delivery.
Delivery: We are the first choose UPS, TNT, DHL, FEDEX as the shippment, You can trace delivery status timely.
After-sale service: We are responsible for every piece of knife of our company. We have the ability to examine all of your cutting applications and offer you the very best solutions to help improve your performance and accuracy.
