Corrugated Cardboard Tungsten Cutting Tools Carbide Slitter Blade Wear Resistance
Product Details:
| Place of Origin: | ZHUZHOU,HUNAN,CHINA |
| Brand Name: | RI XIN |
| Certification: | ISO9001:2008 ISO14001:2004 |
| Model Number: | MR020，MR030 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | As per specific requirements |
| Packaging Details: | First in small cartons filled with cotton, then in bigger cartons. |
| Delivery Time: | 7-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 50 Tons per month |
|
Detail Information |
|||
| Features: | High Hardness,Good Impact Resistance,High Wear Resistance | Material: | WC+Cobalt |
|---|---|---|---|
| Grade: | MR020/MR030 | Application: | For Cutting Corrugated Paper |
| Surface Treatment: | Polishing | Size: | Customer Requst |
| Hardness: | 90-93 HRA | TRS: | 2400-3600 |
| Character: | With Holes Or Without | ||
| Highlight: | tungsten carbide blade,carbide rotary cutter |
||
Product Description

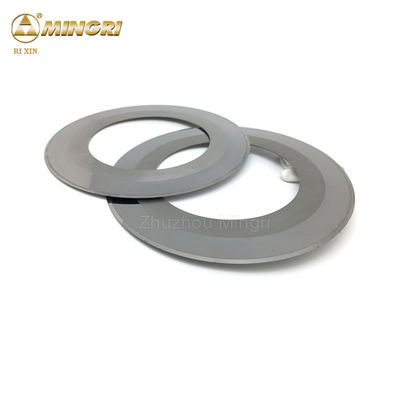

Corrugated Cardboard Cutting Tungsten Carbide Slitter Disc Cutters Blade
Advantages
1, Focusing on manufacturing tungsten carbide products over 19 years.
2, Specialist manufacturer equipped with advanced processing machines and over160 technicians.
3, Over 50 tons/month productivity to assure sustainable supply of products
4, Owing mould workshop to design & produce moulds for nonstandard products, and with mould
stocks over 10 thousand sets for different products.
5, Full ability to accept OEM & ODM orders.
6, Stringent quality control and quality consistency.
7, Professional mechanical & chemical inspecting labs to control the quality of raw material and inspect physical & mechanical properties of finished products.
Description:
Our blades are used for corrugated carton slitter scorer machine,cardboard slotting machine,carton printing machine etc.They can be made by tungsten carbide with long life working time.We have all standard size and also can customized as customers' requirements.
In addition,we can provide the grinding wheel for the blade,slotting blade and others blade used for carton ,tobacco machinery.
Grade and Applications:
MR020,fine grain size,keep sharp edge and stable physical and chemical characters .price is competitive
MR030,fine grain size,it is more stable than MrR020 ,The grade is super .So with a little high price.
| item | Common sizes OD*ID*T(mm) | Holes |
| 1 | Ø200*Ø122*1.2 | without holes |
| 3 | Ø210*Ø122*1.3 | without holes |
| 4 | Ø230*Ø110*1.3 | |
| 5 | Ø230*Ø130*1.5 | |
| 6 | Ø250*Ø105*1.5 | 6 holes*Ø11 |
| 7 | Ø250*Ø140*1.5 | |
| 8 | Ø260*Ø112*1.5 | 6 holes*Ø11 |
| 9 | Ø260*Ø114*1.6 | 8 holes*Ø11 |
| 10 | Ø260*Ø140*1.5 | |
| 11 | Ø260*Ø158*1.5 | 8 holes*Ø11 |
| 12 | Ø260*Ø112*1.4 | 6 holes*Ø11 |
| 13 | Ø260*Ø158*1.5 | 3 holes*Ø9.2 |
| 15 | Ø260*Ø170*1.5 | 8 holes*Ø9 |
| 16 | Ø265*Ø112*1.4 | 6 holes*Ø11 |
| 18 | Ø270*Ø168*1.5 | 8 holes*Ø10.5 |
| 20 | Ø270*Ø170*1.6 | 8 holes*Ø10.5 |
| 21 | Ø280*Ø168*1.6 | 8 holes*Ø12 |
| 22 | Ø290*Ø112*1.5 | 6 holes*Ø12 |
| 24 | Ø300*Ø112*1.5 | 6 holes*Ø11 |
1.Mix with Cobalt powder,we'll take about 7-15 days to keep the process
2.The choice of pressing machinery depends on the surface area of the product to be pressed,
surface area multiplied by 0.8 is pressure value . 1000 tons means that the maximum pressure
of 1000 tons products can be pressed, and each machine can adjust the appropriate pressure.
3.First,we will do degumming then we’ll use HIP sintering or vacuum sintering.we have 10 vacuum sintering furnace and 2 HIP furnace
4.Our order,normally is blanks or ground
5.Our testing system : we have a professional and experienced team to check all the process including raw material checking, half inspection,After sintering checking and before delivery checking .
Packing and delivery:
1. Rubber protector for cutting edges, blade in bubble pack, carton case.
Max 10 pcs blades in one carton case
2. Exterior packaging: carton or wooden case
3. Other packaging upon your request
4. We also have the professional agents shipping our products to the customers.
