Cemented Tungsten Carbide Disc Round Blade For Slotter Corrugated Board With 8 Holes
Product Details:
| Place of Origin: | ZHUZHOU,HUNAN,CHINA |
| Brand Name: | RI XIN |
| Certification: | ISO9001:2008 ISO14001:2004 |
| Model Number: | MR020 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | As per specific requirements |
| Packaging Details: | First in small cartons filled with cotton, then in bigger cartons. |
| Delivery Time: | 7-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 50 Tons per month |
|
Detail Information |
|||
| Features: | High Hardness,Good Impact Resistance,High Wear Resistance | Material: | WC+Cobalt |
|---|---|---|---|
| Grade: | MR020/MR030 | Application: | For Cutting Corrugated Paper |
| Surface Treatment: | Polishing | Size: | Customer Requst |
| Hardness: | 90-93 HRA | TRS: | 2400-3600 |
| Character: | With Holes Or Without | Process: | 5 Steps Or More Than |
| High Light: | tungsten carbide blade,carbide rotary cutter |
||
Product Description

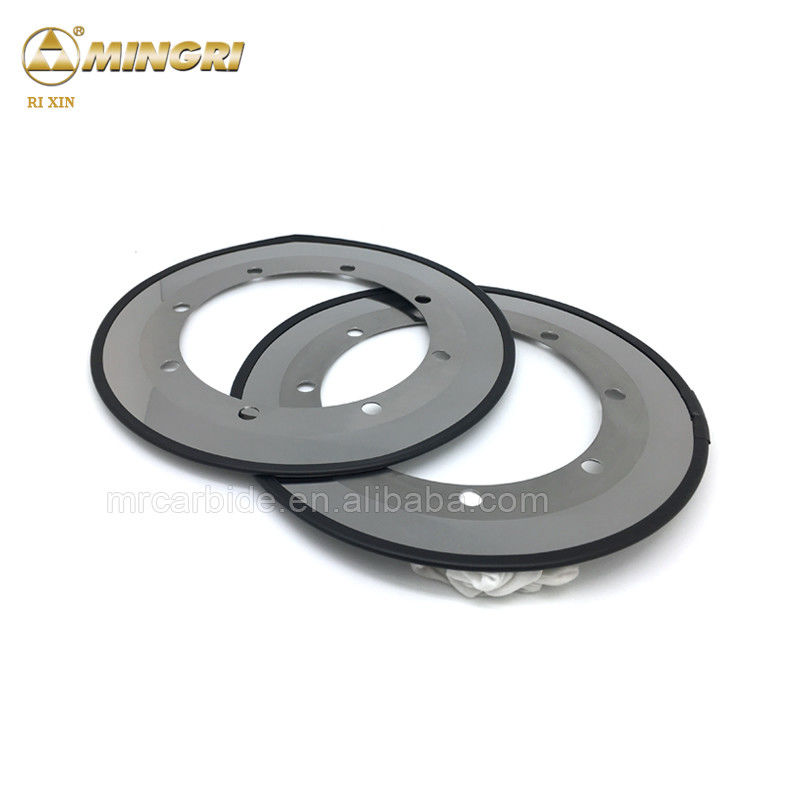

cemented carbide round blade for slotter corrugated board 260*158*1.3mm with 8 holes
Applications:
Tungsten carbide disc cutter is suitable for cutting the slitting corrugated board/paper
| items | Common size (mm) | Holes | Machine |
| 1 | φ260φ158*1.3 | 8*φ11 | Many |
Character:
The blade is made by best pure tungsten carbide raw material,then can guarantee high hardness and high wear resistance,the cutting edge is very sharp,flatness and high precision degree.
Details :
tungsten carbide steel blade is mainly used for cutting paper
tungsten carbide steel knife products require high precision, no glitches, maximum abrasion resistance.
we are using HIP sintered and fine grinding, polishing plating to reduce frictions when cutting, improved the accuracy and speed slitting greatly, tool life extended!
1.Mix with Cobalt powder for ball milling,about 2-3 days to be finished
2. 3 sets ,All the round rods in the ball mills should be made of fine grain tungsten carbide rods,glue mixing is usually mix the rubber, make the blade sometimes mix
3.The choice of pressing machinery depends on the surface area of the product to be pressed
surface area multiplied by 0.8 is pressure value . 1000 tons means that the maximum pressure
of 1000 tons products can be pressed, and each machine can adjust the appropriate pressure.
4.First,we will do degumming then we’ll use HIP sintering or vacuum sintering.we have 10 vacuum sintering furnace and 2 HIP furnace
We will use testing tablet when sintering to test the raw material performance .
For carbide antiskid stud,they are putting inside vaccum sintering furnace by degarmming and sintering together
For small products,normally under 200 gram,we will use degumming and sintering together in HIP sintering furnace
If for big products,for example carbide dies,plates ,Grade ML serious,we should do degumming firstly then use HIP sintering furnace
5.Our order,normally is blanks or ground
For customer’s grinding tolerance, we will grind/machine outside diameter ,inside diameter /the sharp edge and so on
So we will use surface grinding machine,centerless grinding machine ,cylindrical grinding machine
Testing and quality control
About package :
1 our worker will make sure that your tungsten carbide disc cutter clean before package.
2 rubber strip wrap sharp cutting edge to avoid edge broken.
3 put into plastic bag and styrofoam box to keep tungsten carbide disc cutter steady when express deliver .
4 add plastic foam into inner box for the whole tungsten carbide disc cutter for sweet protection.
5 we will make export standard strong cartonn or plywood case package according to your needs.
