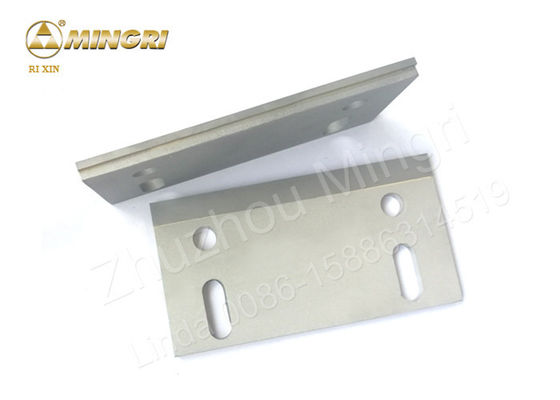

    Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips

    Product Details:

    Place of Origin: Zhuzhou, Hunan, China
    Brand Name: RiXin
    Certification: ISO9001:2008; ISO14001:2004
    Model Number: Tungsten carbide strip

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 KG
    Price: USD+49~69+KG
    Packaging Details: paper, then paper boxes, then exported wooden cartons or paper cases,or packed as customers'requirement.
    Delivery Time: 7 to 10 working days depending on the order quantity and requirements
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 50 tons/month Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips
    Get Best Price Contact Now

    Detail Information

    Product Name: Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips Keywords: Scraper Blade, Conveyor Belt Cleaner, Tungsten Carbide Scraper Blade
    Grade: K10, K20, K30, YG6, YG8, YG6A, YS2T, YG10X Material: TC, Widia, Tungsten Carbide
    Hardness: 91 - 92 Surface: Ground, Sintered Blasting
    Sample: Acceptable
    High Light:

    tungsten carbide bar

    ,

    tungsten carbide block

    Product Description

    Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips

    Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips



    Description


    Item Tungsten carbide strip
    Grade K10, K20, K30, YG6, YG8, YG6A, YS2T, YG10X
    Sizes standard or customized.
    Brand Rixin
    Country of Origin Zhuzhou, China
    Usage scraper blade, conveyor belt cleaner.



    Why are tungsten carbide blades used on belt cleaners?
    Tungsten carbide tipped blades provide superior cleaning efficiency. They also feature a lower lifetime cost—due to their durability—compared to many other blade types. Traditionally, tungsten carbide blades have been compatible only with vulcanized belts. Today, technical advancements with certain blade options make these blades more compatible with mechanically spliced belts as well.



    Are all tungsten carbide blades the same?
    • Absolutely not! Carbide is a composite of carbide granules and binder metals that provides a very hard, long-wearing material for belt cleaner blades.There are several ways to vary the mixture.
    • Some low cost carbides can have inferior wear resistance which results in short blade life. Others have poor impact resistance and can chip out—potentially causing damage to the belt.

    • Many blade tips are weakened with voids or binder pooling due to inferior production processes. Bargain-priced carbide isn’t always a bargain.



    Why choose a tungsten carbide blade. Look for blades that offer:
    • Better cleaning efficiency. When optimally tensioned, the thin, hard blade will provide
    superior cleaning performance.
    • Good value. When you consider lifetime cost vs. initial cost, a tungsten carbide blade’s durability and lower required maintenance often makes up the cost difference over the life of the blade.
    • Versatility. Some designs can be used with mechanical belt fasteners.



    Where to use tungsten carbide blades.
    • Highest cleaning efficiency is another attribute that makes tungsten carbide the right choice
    in applications where unbeatable performance is required.
    • Highly abrasive materials are commonly conveyed on belts that use these wear-resistant blades.
    • Reduced maintenance is the reason why many users choose carbide-tipped blades; they’re well worth the investment in applications where less durable blade materials result in unacceptable wear rates, cause frequent retensioning tasks and increase maintenance costs.



    Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 0

    Grades:


    Properties and applications of carbide strips
    Grade Density T.R.S
    MPa

    Hardness

    HRA

    Performance & application recommended
    YM6 14.9 2400 90.5

    Good wear resistance, used for hard wood, used for

    processing original wood, aluminum section bar, brass rod and cast iron.

    YM6A 14.85 2000 92.5

    Wear resistance higher than YM6, used for processing hard wood,

    original wood, aluminum section bar, brass rod and cast iron.

    YM8 14.7 2800 89.8 High wear and impact resistance , suitable for machining dry wood, soft wood and non-ferrous metal section bar.
    YM2T 14.25 2400 92 Fine grain alloy, with high wear resistance, bending strength, bonding resistance and thermal strength. It is suitable for machining refractory alloys, stainless steel, high manganese steel, etc.
    YS25 13.0 2200 91 Wear resistance and strength comparatively higher, suitable for machining cast iron, non-ferrous metal and non-metal materials.
    YM25 14.45 3000 91.8

    Wear resistance and strength comparatively higher,

    suitable for processing cast iron, non-ferrous,metal and non-metallid materials.

    Other grades of strips may be offered according to customers' requirement.



    Sizes:


    Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 1

    Type   Unit:mm
    Type L W T Type L W T
    140 * W * T 140 6 1.5-6.0 230 * W * T 230 8 2.0-6.0
    140 * W * T 8 230 * W * T 10
    140 * W * T 10 230 * W * T 12
    140 * W * T 12 230 * W * T 16
    140 * W * T 14 230 * W * T 18
    140 * W * T 16 230 * W * T 20
    140 * W * T 18 230 * W * T 22
    140 * W * T 20 2.0-6.0 230 * W * T 25 2.5-6.0
    140 * W * T 22 230 * W * T 28
    140 * W * T 25 230 * W * T 30
    165 * W * T 165 6 1.5-6.0 230 * W * T 32
    165 * W * T 8 230 * W * T 40
    165 * W * T 10 320 * W * T 320 8 2.0-6.0
    165 * W * T 12 320 * W * T 10
    165 * W * T 14 320 * W * T 12
    165 * W * T 16 320 * W * T 14
    165 * W * T 18 320 * W * T 16
    165 * W * T 20 2.0-6.0 320 * W * T 18
    165 * W * T 22 320 * W * T 20
    165 * W * T 24 320 * W * T 22
    165 * W * T 25 320 * W * T 24
    165 * W * T 26 320 * W * T 25 2.5-6.0
    165 * W * T 28 320 * W * T 28
    165 * W * T 30 2.5-6.0 320 * W * T 30
    165 * W * T 32 320 * W * T 32
    165 * W * T 35 320 * W * T 35
    165 * W * T 40 320 * W * T 40
    ··· ··· ··· ··· ··· ··· ··· ···
    Other types of strips may be offered according to customers' requirement.



    Application:


    Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 2



    Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 3



    Package:


    Packing Paper+paper boxes+exported wooden cartons or paper cases.
    As a manufacturer, Mingri can provide any kinds of package as buyer's requirement.
    Shipping UPS,TNT,EMS,Fedex,DHL,or as you request.
    Delivery 7-10 days after confirm all details.

    Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 4



    Main products:


    We are specialized in all kinds of tungsten carbide profiles and dies, cutting tools, mining tools, wear parts and all kinds of non-standard customized tool parts with high performance in the industry.



    For details about the below products, please click the More on below pictures:

    Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 5 Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 6 Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 7 Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 8
    Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 9 Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 10 Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 11 Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 12
    Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 13 Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 14 Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 15 Widia Tungsten Carbide Mining Conveyor Belt Cleaner Scraper Replacement Blade Tips 16





    For details about our company, equipments, inspection and quality, please refer to

    http://www.tungstencarbide-tools.com/aboutus.html

    http://www.tungstencarbide-tools.com/factory.html

    http://www.tungstencarbide-tools.com/quality.html





    FAQ:




    Q1 : Are you Factory or trading company ?



    We are Factory with 18 years of production experience.



    Q2: Where is your factory located ?



    We are located in Zhuzhou city, Hunan province where is 4 hour away from Shanghai ,



    Q3: Is the price Competitive?



    We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.



    Q4: Are the products High Quality?



    Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.



    Q5: How to place an order?

    1. Fill your Order List in our online Inquiry System.

    (Also you can directly contact our salesperson by E-mail / Skype / Whats App)

    2. We will make a feedback to you ASAP after receive your order list.
