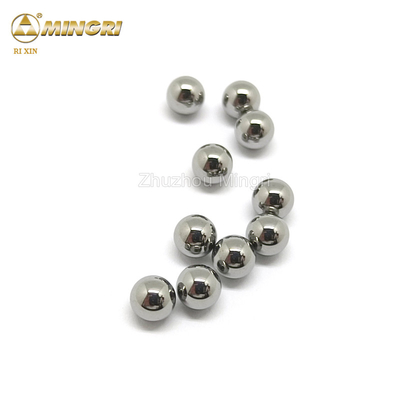

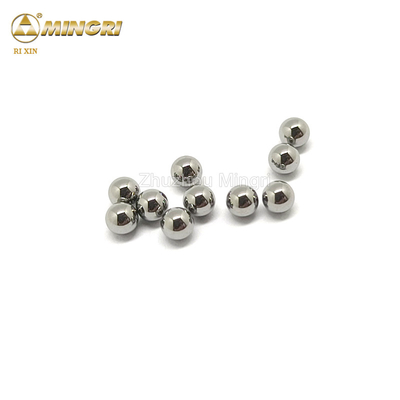

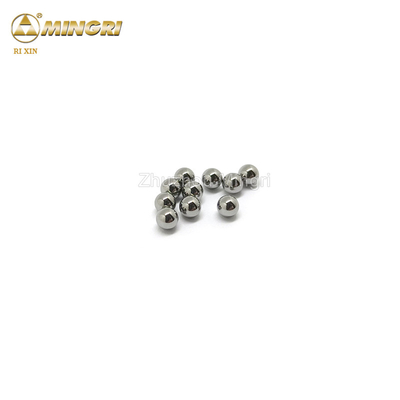

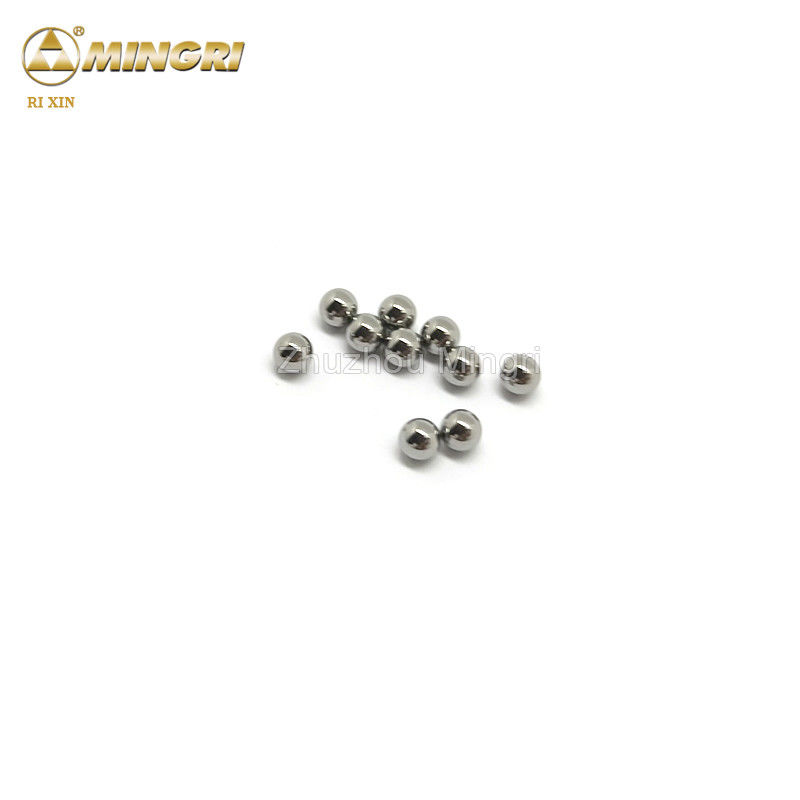

Yg6 Dia3mm Grinding G10 Tungsten Carbide hartmetal Ball For Bearing Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | Rixin |
| Certification: | CE ROHS UL ISO |
| Model Number: | YG8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1KG |
|---|---|
| Packaging Details: | Cartons |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50+tons+per month |
|
Detail Information |
|||
| Keyword: | Carbide Hartmetal Ball | Material: | 100% Raw Material |
|---|---|---|---|
| Usage: | Used For Mill Machine | Component: | WC+CO |
| Tolerance: | As Per Your Requirment | Product Name: | Carbide Hartmetal Ball |
| Surface: | Blanks Or Polished | Size: | 3mm, 6mm, 10mm Ect |
| Grade: | YG6,YG8 | HS Code: | 820900 |
| High Light: | Dia3mm Tungsten Carbide Ball,G10 Tungsten Carbide Ball,Grinding Tungsten Carbide Ball |
||
Product Description
Yg6 Dia3mm Grinding G10 Tungsten Carbide Hartmetal Ball For Bearing Industry
Specification of tungsten carbide ball
1.For sealing of valves of oil pumps in petroleum industry's sand containing wells, viscous oil wells, sea oil wells, high pressure sulfur resistant oil wells, compatible Cemented Carbide valve seats, etc.
2.Various grades for cemented carbide balls/pellets can be supplied according to customer's drawings.
3.The surface finish, tolerance class and tolerances of dimensions have respectively reached the standards of the machine industry.
| Grade | Density ( g/cm3) | Hardness ( HRA) | T.R.S(MPa) | Grain size ( μm) | Composition ( % ) | Equal to ISO |
| YL10.2 | 14.4~14.6 | ≥91.8 | ≥3000 | 0.6~0.8 | 10%CO 90%WC | K30 |
| YG6X | 14.9~15.0 | ≥91.5 | ≥2300 | 0.8~1.0 | 6% CO 94%WC | K10 |
| YG15 | 14.0~14.1 | ≥87 | ≥3000 | 1.2~2.0 | 15%CO 85%WC | / |
| YG10 | 14.4~14.6 | ≥88 | ≥2400 | 1.2~1.6 | 10%CO 90%WC | K20 |
| YG8 | 14.65~14.8 | ≥89.5 | ≥2800 | 1.2~1.6 | 8%CO 92%WC | K20 |
| YG6 | 14.85~15.0 | ≥90.2 | ≥2400 | 1.2~1.6 | 6%CO 94%WC | K10 |
Sizes of tungsten carbide ball
Mingri also can produce the other customized carbide parts, not only the sizes & shape, but also the grades based on your using purpose. If you need more specification of the tungsten carbide ball, please kindly contact us.
Product DIA. specifications:
| 2mm | 2.381mm (3/32") |
3mm | 3.175mm (1/8") |
4mm | 4mm |
| 6mm | 6.35mm (1/4") |
8mm | 8.5mm | 12mm | 11.1125mm (7/16") |
| 14mm | 14.2875mm (9/16") |
15mm | 15.875mm (5/8") |
20mm | 22.225mm (7/8") |
Application of tungsten carbide ball
♦ Material: cobalt-base alloy, nickel -base alloy and stellite alloy, Titanium carbide and other corrosion resistant
material.
♦ Application fields: Subsurface pump/Oilfield Tubing pump/Insert pump, sealing, it is widely used in petroleum industry and other anti-corrosion machine parts.
♦ Properties: Seat-ball valves for oilfield Insert Pumps have good resistance against corrosion and oxidation;
Tungsten carbide valve ball and seat are widely used in petroleum drill and exploitation equipment. It's used to the stationary
and roving unidirectional valve in various tube-type oil suction pump due to their high hardness, wear and corrosion resistance as well as good anti-compression and thermal shock characters with a high pump effect.
