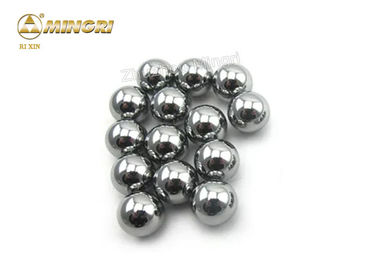

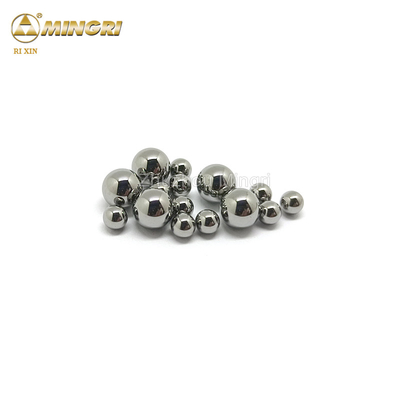

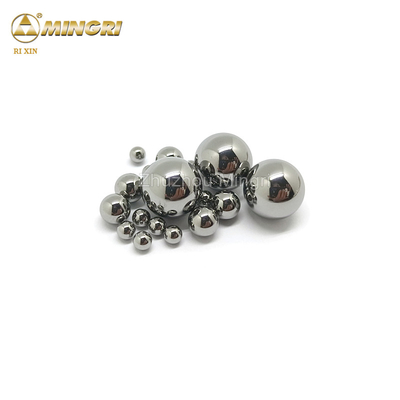

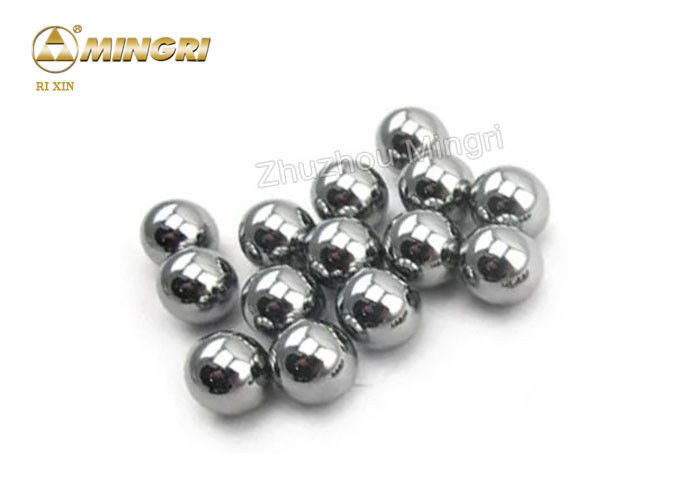

Long Life 0.4-50.8mm Tungsten Carbide Ball , Cemented Carbide Valves Balls

China Long Life 0.4-50.8mm Tungsten Carbide Ball , Cemented Carbide Valves Balls supplier
Long Life 0.4-50.8mm Tungsten Carbide Ball , Cemented Carbide Valves Balls supplier Long Life 0.4-50.8mm Tungsten Carbide Ball , Cemented Carbide Valves Balls supplier Long Life 0.4-50.8mm Tungsten Carbide Ball , Cemented Carbide Valves Balls supplier Long Life 0.4-50.8mm Tungsten Carbide Ball , Cemented Carbide Valves Balls supplier

Large Image :  Long Life 0.4-50.8mm Tungsten Carbide Ball , Cemented Carbide Valves Balls

Product Details:

Place of Origin: China
Brand Name: Rixin
Certification: CE ROHS UL ISO
Model Number: YG8

Payment & Shipping Terms:

Minimum Order Quantity: 1KG
Packaging Details: Cartons
Delivery Time: 7-20 days
Payment Terms: L/C, T/T
Supply Ability: 50+tons+per month
Contact Now
Detailed Product Description
Keyword: Tungsten Carbide Valves Balls Material: 100% Raw Material
Usage: Used In Endmill Component: WC+CO
Tolerance: As Per Your Requirment Product Name: Tungsten Carbide Valves Balls



Long Life 0.4-50.8mm Tungsten Carbide Ball , Cemented Carbide Valves Balls







Specification of tungsten carbide ball




Original Manufacturer of Hard Metal Tungsten Carbide Ball supplied in Diameter of 1mm ,2mm, 4mm, 5mm, 8mm, 10mm 12mm 15mmetc.



It's widely used for valves, flowmeters, ball screw and linear bearings,ballizing,gauging and ball pens etc.


They can be used as golf counterweight, fishing pendant, etc; also can be used in some other top precision fields, such as mobile phone vibrators, the pendulum for the clock and automatic watch balances, , flywheel weight etc.



Product name tungsten carbide bearing ball / carbide valves balls
Material YG6
Size range 0.4-50.8mm
Hardness HRA91
Surface Polished / blanks
Packing Condition Dry / Oil
Composition WC94%, CO6%
Density 14.6-15.0g/cm³
Characteristic (a)Very high hardness
(b)Good abrasion resistance
(c)High vibration resistance











Sizes of carbide composite welding rod




The tungsten carbide balls with sizes ranging from ¢0.4mm to ¢70mm,are produced according to the national standard GB308-2002,the ones reach precision degree at G5-G100 with good roundness, high precision, long service life, which are mainly taken for precision gauge vales,hydraulic fittings, hardness testers etc.Meanwhile, the common grades to make the carbide balls are YG3,YG6,YG6X,YG8,YG8X,YN6 and YN9 with precision degree as G5,G16,G25,G50,G100 etc.













Application of carbide composite welding rod




1. Vavle, precious bearing, grinding, Golf counterweight,

2. Fishing pendant, mobile phone vibration



Long Life 0.4-50.8mm Tungsten Carbide Ball , Cemented Carbide Valves Balls
