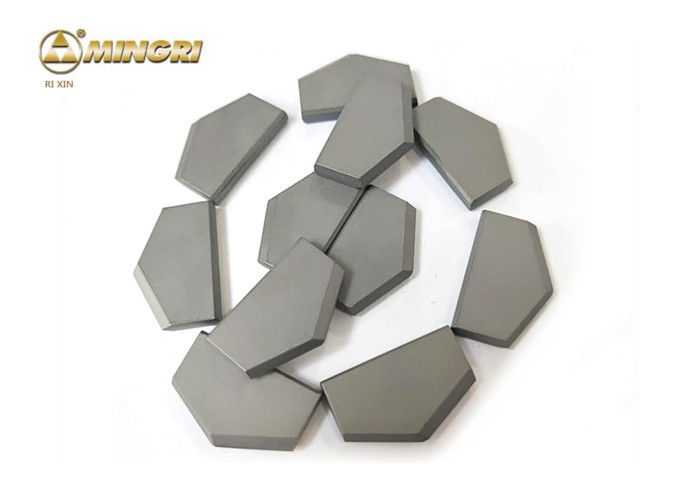

TC Cemented Tungsten Carbide Cutting Tips , Tungsten Carbide Tool Tips

China TC Cemented Tungsten Carbide Cutting Tips , Tungsten Carbide Tool Tips supplier
TC Cemented Tungsten Carbide Cutting Tips , Tungsten Carbide Tool Tips supplier TC Cemented Tungsten Carbide Cutting Tips , Tungsten Carbide Tool Tips supplier

Large Image :  TC Cemented Tungsten Carbide Cutting Tips , Tungsten Carbide Tool Tips

Product Details:

Place of Origin: China
Brand Name: Rixin
Certification: ISO9001:2008
Model Number: customized

Payment & Shipping Terms:

Minimum Order Quantity: 10kg
Price: USD + 32~62 + KG
Packaging Details: cartons
Delivery Time: 5-15 days
Payment Terms: L/C, T/T
Supply Ability: 50+tons+per month
Detailed Product Description
Features: Super Quality / Long Using Life Product Name: TC Carbide Cross Tips
Keyword: TC Carbide Cross Tips Material: Tungsten Carbide
Grade: YG8 Application: Drill Steel Reinforced Concrete Wall

High Quality TC Cemented carbide Cross Tips SDS Electric Hammer Drill Bits


advantage of TC carbide cross tips



Product Name TC carbide cross tips
Material Tungsten Carbide
Color Sliver gray
Standard  ISO
Material YG8, YG6, YG10, YG10X
Application Widely used for drilling building,geology and coal mining and heavy rock




Description of TC carbide cross tips

Grade


Density


Hardness


T.R.S

Applications recommended ISO Code


g/cm3


HRA


MPa


MR9-B


14.4


87.0


2800

Used for deep well or heavy rock drill



K30





Other grades can be offered by customers' requirement





TC Cemented Tungsten Carbide Cutting Tips , Tungsten Carbide Tool Tips
 TC Cemented Tungsten Carbide Cutting Tips , Tungsten Carbide Tool Tips



S type electric hammer dill bits:

Specification D mm Tolerance W mm Tolerance T mm Tolerance B° A
3 3

+0.35

+0.22

3.5

+0.2

0

1.0

+0

-0.1

20 0.2
4 4 4.5 1.2 0.3
5 5 5.0 1.5 0.4
6 6 5.7 1.4 0.5
6.2 6.0 5.1 1.75 0.5
6.5 6.5 5.3 1.6 0.5
7 7 5.7 1.6 0.5
8 8

+0.38

+0.22

6.3 1.8 0.6
8.5 8.5 6.5

+0.3

0

1.8 0.6
9 9 6.5 1.8 0.6
10 10 7.3 2.0 0.7
10.5 10.5 7.3 2.0 0.7
12 12 8.0 2.2 0.8
12.5 12.5 8.0 2.2 30 0.8
12.7 12.7 8.0 2.2 0.8
14 14

+0.45

+0.26

9.0 2.6 1.0
15 15 10

+0.5

0

2.8 0.8
16 16 10 2.8 1.0
17 17 10 2.8 1.0
18 18 11 3.2 1.2
19 19

+0.5

+0.28

11 3.2 1.2
20 20 13 3.2 1.3
22 22 14 3.5 1.3
24 24 15 4.0 1.3
25 25 15 4.0 1.3
26 26 15 4.5     1.6
32 32

+0.55

+0.3

19.5 5.5     1.7
  • All kinds of non-standard drill bits and eccentric drill bits can be customized as per customers’ requirements.



Application of TC carbide cross tips
1, SDS hammer carbide tips are brazed on percussion drill or electric drill or pneumatic drill to drill wall, ground, mining ect.



2, SDS hammer carbide tips widely used for electric drill in special condition, also used for electric dill or pneumatic drill for building,geology and coal mining

3, SDS hammer carbide tips suitable for harder rock or rock with hard stratum or metallic rock,



4, SDS hammer carbide tips suitable for all kinds of cement drill bits



Production and test of TC carbide cross tips
1)  TC carbide cross tips will start to prepare the RTP powder as per customer’s requirement with our wet-grinding machine


2)  Before mass production of TC carbide cross tips, we need to do a trial pressing and sintering, and we check the appearances and the sizes of the samples with micrometer to ensure that the requirements of the drawings can be met before batch production


3)  Bulk production ,press the raw materials to shape blanks,and TC carbide cross tips must be passed by semi finished inspection.

4)  sinter blanks to finish (HIP) and finished products inspection to ensure the best quality and production capacity.
TC Cemented Tungsten Carbide Cutting Tips , Tungsten Carbide Tool Tips



Packing and delivery of SDS hammer carbide tips

wrapped TC carbide cross tips in plastic bottle to avoid TC carbide cross tips to broke   put the TC carbide cross tips in inner small carton box  →  put the inner box into outter carton and fill the carton with foamed plastic → wrap the carton with packaging tape    you can choose any delivery way such as DHL,TNT,UPS ect.
 TC Cemented Tungsten Carbide Cutting Tips , Tungsten Carbide Tool Tips

Company brief introduction

230 workers, 8000 m2 non-dust workshop, 18 years experience , 10000 sets mould, 5 workshop included grinding powder workshop, pressing workshop, sintering workshop, processing workshop, mould production workshop, production capacity 50tons/month, well-known brand ”Ri Xin” has registered in Europe for 6 years , ISO, CE&FDA certificated, one hour reach Shanghai port, this is how we keep superior quality and competitive offers for global valued customers.



Our main products cover cold heading dies, wire drawing dies, strips and plates, saw tips, brazed tips, disc cutters, round rods, rock drilling bits and buttons, milling tools, also we can make all kinds of customized proposal to meet customers’ requirement.
