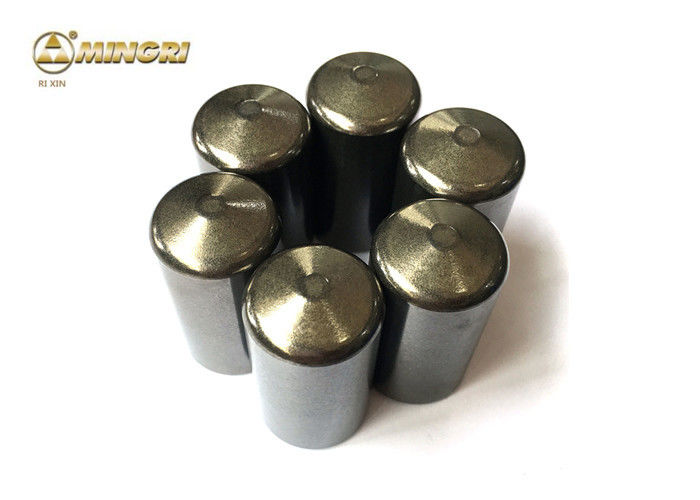

    High Pressure Grinding Roll HPGR Cemented / Tungsten Carbide Studs

    Product Details:

    Place of Origin: China
    Brand Name: Rixin
    Certification: CE ROHS UL ISO
    Model Number: RX-11,RX-15,RX650,RX20

    Payment & Shipping Terms:

    Minimum Order Quantity: 5KG
    Price: USD + 65~32 + KG
    Packaging Details: Cartons
    Delivery Time: 5-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 50+tons+per month
    Get Best Price Contact Now

    Detail Information

    Keyword: Tungsten Carbide Studs Material: 100% Virgin Gungsten Carbide
    Usage: HPGR Studs Place Of Origin: Hunan, China
    Product Name: Tungsten Carbide Studs Surface: Blank / Finished
    Tolerance: As Per Your Requirment
    High Light:

    carbide button bit

    ,

    tungsten carbide tips

    Product Description

    High Pressure Grinding Roll HPGR Cemented / Tungsten Carbide Studs


    factory directly supply HPGR cemented carbide studs high pressure grinding roll







    Description of tungsten carbide studs


    grade above are exclusive grade we developed for rolling machine,good wear resistance and high strength are suitable for metal smashing with high working efficiency.lifetime of carbide stud is over 8000-10000 hrs.



    Grades Density(g/cm3) Hardness(HRA) T.R.S≥N/mm2
    RX-11 14.4 87 2700
    RX-15 14 87 3000
    RX650 13.8 88.2 3100
    RX20 13.5 85.5 3200









    Advantages of cemented carbide studs


    1. continuous production of buttons over 18 years

    2. total production quantity of buttons up to 800 tons

    3. widely exported to Europe,America,Austrialia,Brazil,India,Russia etc

    4. round edges,protect the studs being damaged during production,transpotation,installment and using

    5. Hip sintering ensure good compactness and high toughness for the products

    6. grease used on surface of the products to avoid oxidization

    7. hemishperical top,protect the studs from being destroyed by stress concentration









     Model available of cemented carbide studs


    If rolling machine uses cemented carbide stud,it gets high density,high strength and good impacting property,lifetime of cemented carbide stud is over 10 times more than surfacing material



    High Pressure Grinding Roll HPGR Cemented / Tungsten Carbide Studs 0





    Specification

    Height

    H

    Diameter

    D

    Accuracy surface finish(Ra)
    Z1160200 20±0.3 16±0.01 H7 0.2
    Z1200250 25±0.3 20±0.01 H7 0.2
    Z1220300 30±0.3 22±0.01 H7 0.2
    Z1220350 35±0.3 22±0.01 H7 0.2
    Z1220400 40±0.3 22±0.01 H7 0.2

    Remarks:

    1.Dimension refers to sketch.

    2.Customize for client’s requirements is available.

    3.Fully angular differs from different models.








     Production process of cemented carbide studs


    1, Soon after the order is confirmed, tungsten carbide studs products will start to prepare the RTP powder as per customer’s requirement with our wet-grinding machine

    2, Before mass production, we need to do a trial pressing and sintering using every mould, and we check the appearances and the sizes of tungsten carbide studs samples with micrometer, projectors etc. to ensure that the requirements of the drawings can be met before batch production

    3, Bulk production ,press the raw materials to shape blanks,and all tungsten carbide studs blanks must be passed by semi finished inspection,









    company information


    2001.05  factory of Zhuzhou Mingri Cemented Carbide Company was established in Zhuzhou

    2003.04  the company renamed Zhuzhou Mingri Cemented Carbide Co., Ltd

    2006.06  the company moved into SME Promotion Park in Tianyuan District, Zhuzhou

    2009.03  Zhuzhou Mingri moved to Liyu Industrial Area, where our newly built factory is located

    2010.01  the road built with our company's sponsorship is formally named" Mingri Road",which is a conspicusous landmark in Zhuzhou

    2010.05  Zhuzhou Mingri was invited to take part in World Expo Shanghai

    2010.12  our first invention patent was formally granted

    2010.12  our brand "RIXIN" was rated as famous trademark of Hunan province

    2011.05  10th Anniversary celebration

    2011.06   Zhuzhou Mingri was honored as high-tech enterprise in Hunan Province

    2012.09   our own brand RIXIN was successfully registered

    2013.08   our brand RIXIN was rated as internationally well-known brand

    2013.12   Zhuzhou Mingri passed the authentication of ISO9001:14001 successfully

    High Pressure Grinding Roll HPGR Cemented / Tungsten Carbide Studs 1
