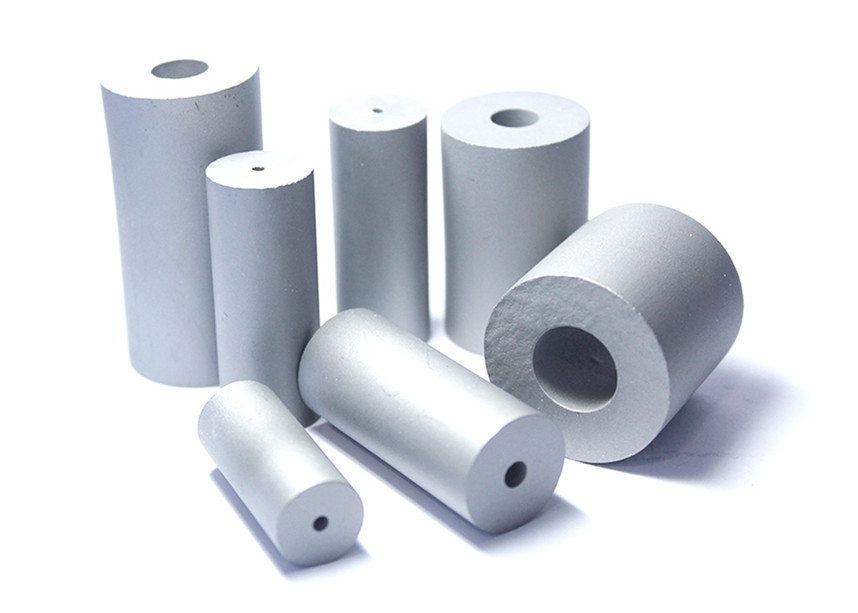

Ground / Unground Tungsten Carbide Die , Cold Heading Die For Bolt / Nut Forming

Ground / Unground Tungsten Carbide Die , Cold Heading Die For Bolt / Nut Forming

Product Details:

Place of Origin: china
Brand Name: Ri Xin
Certification: SO9001:2008 ISO14001:2004
Model Number: Various

Payment & Shipping Terms:

Minimum Order Quantity: 5kg
Packaging Details: First in small cartons filled with cotton, then in bigger cartons.
Delivery Time: 7-20 days depending on the quantity
Supply Ability: 30 ton per month
Get Best Price Contact Now

Detail Information

Product Name: Ground / Unground Tungsten Carbide Cold Heading Die For Bolt / Nut Forming Material: Tungsten Carbide, Cemented Carbide, Hard Metal
Grade: YG20C YG22C YG25C GT40 GT55 Application: Cold Heading, Cold Forging, Cold Stamping, Cold Pressing, Cold Punching, Bolt/nut Forming
Surface: Sintered Blank, Ground, Polished
Highlight:

tungsten carbide tools

,

tungsten carbide tooling

,

Unground Tungsten Carbide Die

Product Description

Ground / unground Tungsten Carbide Die , Cold Heading Die for Bolt / Nut Forming





Description:

ML60  It is suitable for stainless screw dies and semifinishing rollers.



Applications:





Cemented carbide pellets are widely used in cold heading dies and punching dies

for maufacturing nuts, screw caps, bolts, cans and many other products.



Grade:

Grade Density
g/cm3
T.R.S
MPα
Hardness
HRA
Properties & Applications Approx Grades in China
A 13.5 3000 83.5 Good wear resistance and  bending strength. It is often preferrd by  nut forming dies and high impact-resistant dies.
YM11 14.4 2420 88.5 Forming or stamping dies for metal powders and nonmetal powders. YG11
YM15 14.0 2500 87.5 It is suitable for drawing steel tubes and rods under high compression ratio, manufactuing upsetting, punching and forging tools under large stress. YG15
YM20 13.5 2800 85.5 It is suitable for manufacturing punching dies for watch parts, leaf spring of musical instruments, battery jars, small sized steel balls, screws, screw caps, etc. YG20
ML32 13.9 2750 85.5 It is suitable for impact-resistant forging dies. YG16C
ML36 13.7 2800 84.5 It is suitable for impact-resistant forging dies, hot-forging dies and finishing rollers. YG18C
ML40 13.5 2850 83.5 It is suitable for wear resistant or impact resistant dies. YG20C ZL40.2
ML50 13.3 2900 83.0 It is suitable for nut forming dies and high impact-resistant dies.               YG22C ZL40.5
ML60 13.1 2950 82.5 It is suitable for stainless screw dies and semifinishing rollers. YG25C ZL40B
ML80 13.1 3050 83.4 It is suitable for screw cap forming dies with high strength ( highest impact-resistant forging dies). YG25C GT55
Other grades of cemented carbide blanks for cold-forging dies may be offered by customers' requirements



Specifications:

Including but not limited to the following types.

Ground / Unground Tungsten Carbide Die , Cold Heading Die For Bolt / Nut Forming 0


Type


 Dinension


Appllcable




d

D


Range of L



BDP00710-

0.7

10

12.0-20.0

M1



BDP01010-

1.0

10

12.0-20.0

M1.5-M2



BDP01013-

1.0

13

15.0-40.0

M1.5-M2



BDP01213-

1.2

13

15.0-40.0

M1.5-M2



BDP01510-

1.5

10

12.0-25.0

M2



BDP01516-

1.5

16

15.0-45.0

M2



BDP01813-

1.8

13

12.0-45.0

M2.5



BDP01816-

1.8

16

20.0-45.0

M2.5



BDP02113-

2.1

13

15.0-30.0

M3



BDP02116-

2.1

16

25.0-45.0

M3



BDP02316-

2.3

16

15.0-45.0

M3



BDP02522-

2.5

22

20.0-60.0

M3



BDP02813-

2.8

13

15.0-30.0

M4



BDP02816-

2.8

16

25.0-40.0

M4



BDP02818-

2.8

18

20.0-50.0

M4



BDP02820-

2.8

20

20.0-50.0

M4



BDP02822-

2.8

22

20.0-60.0

M4



BDP02825-

2.8

25

20.0-60.0

M4



BDP03216-

3.2

16

15.0-45.0

M4



BDP03218-

3.2

18

15.0-50.0

M4



BDP03616-

3.6

16

20.0-50.0

M5



BDP03618-

3.6

18

20.0-60.0

M5



BDP03822-

3.8

22

20.0-40.0

M5



BDP03830-

3.8

30

50.0-60.0

M5
