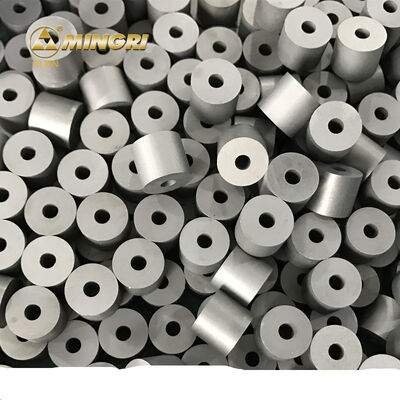

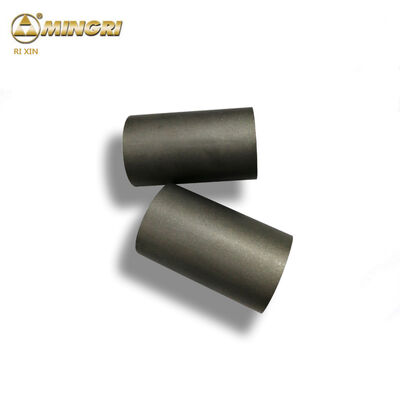

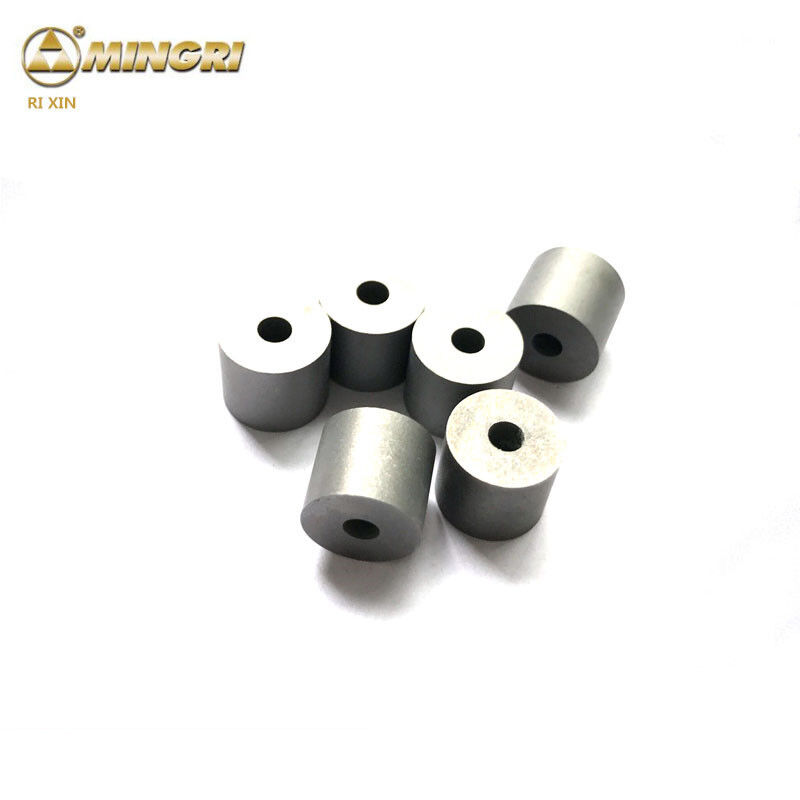

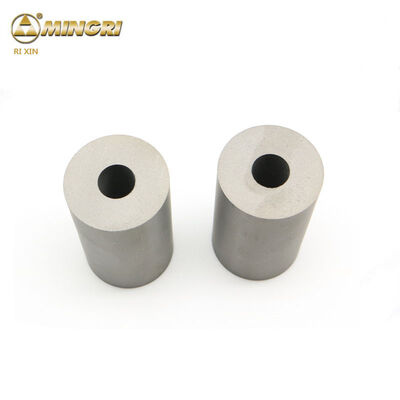

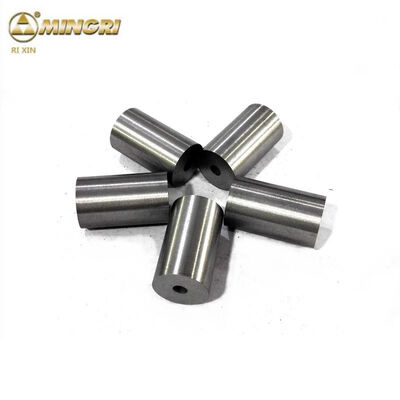

Customizable OEM Tungsten Carbide Die Insert with Polished Surface and High Bending Strength for Forging and Stamping
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | rixin |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $1.55 |
|
Detail Information |
|||
| Material: | WC+Cobalt | Grade: | YG20, YG20C, YG22C, YG25C, GT55, ML40, ML100 |
|---|---|---|---|
| Surface: | Polished, Sand-blasted, Grinding, Polishing | TRS: | > 3000 N/mm3 |
| Hardness: | 85-92HRA | Outer Diameter: | 10-100mm |
| Inner Diameter: | 2-30mm | Length: | 10-60mm |
| Density: | 13.1-14.4 G/cm3 | Bending Strength: | 2800-3100 MPα |
| Impact Resistance: | High | Wear Resistance: | Good |
| Tolerance: | Blank, Semi Finished, Finished | Customizable Sizes: | Yes |
| Surface Treatment: | Polished, Sand-blasted, Grinding | ||
| Highlight: | Customizable OEM Tungsten Carbide Die,Polished Surface Carbide Die Insert,High Bending Strength Carbide Tool Die |
||
Product Description
Tungsten Carbide Tool Die Insert for Forging, Heading, Trimming, Stamping & Pressing Moulds
Product Specifications
| Item | Tungsten carbide die |
| Grade | YG6, YG8, YG11, YG12, YG15, YG20, YG20C, YG22C, YG25C, GT55, ML40, ML100 |
| Sizes | Standard or customized |
| Brand | Rixin |
| Country of Origin | Zhuzhou, China |
| Usage | Cold heading die, forging mold, cold forming die, extrusion die, press mold, mould parts, die casting mould, punch dies, wire drawing die, machine mold, progressive die, trimming die, etc. |
- Tungsten carbide die blanks are widely used for making finished die casting mould, punch dies, wire drawing die, machine mold, progressive die, extrusion die, press mold, mould parts, trimming die, cold heading die, forging mold, and cold forming die.
- Mingri maintains extensive stock of available moulds for various carbide die sizes, providing significant cost savings for customers.
- Mingri offers the widest and most stable range of carbide die grades with superior cost performance compared to industry leaders.
Grade Specifications and Applications
| Grade | Density (g/cm³) | T.R.S (MPa) | Hardness (HRA) | Properties & Applications | Approx Grades in China |
|---|---|---|---|---|---|
| A | 13.5 | 3000 | 83.5 | Good wear resistance and bending strength. Preferred for nut forming dies and high impact-resistant dies. | -- |
| YM11 | 14.4 | 2420 | 88.5 | Forming or stamping dies for metal powders and non-metal powders. | YG11 |
| YM15 | 14.0 | 2500 | 87.5 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and forging tools under large stress. | YG15 |
| YM20 | 13.5 | 2800 | 85.5 | Suitable for manufacturing punching dies for watch parts, leaf spring of musical instruments, battery jars, small sized steel balls, screws, screw caps, etc. | YG20 |
| ML32 | 13.9 | 2750 | 85.5 | Suitable for impact-resistant forging dies. | YG16C |
| ML36 | 13.7 | 2800 | 84.5 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers. | YG18C |
| ML40 | 13.5 | 2850 | 83.5 | Suitable for wear resistant or impact resistant dies. | YG20C ZL40.2 |
| ML50 | 13.3 | 2900 | 83.0 | Suitable for nut forming dies and high impact-resistant dies. | YG22C ZL40.5 |
| ML60 | 13.1 | 2950 | 82.5 | Suitable for stainless screw dies and semifinishing rollers. | YG25C ZL40B |
| ML80 | 13.1 | 3050 | 83.4 | Suitable for screw cap forming dies with high strength (highest impact-resistant forging dies). | YG25C GT55 |
| ML100 | 13.1 | 3100 | 84 | Suitable for screw cap forming dies with high strength (highest impact-resistant forging dies). | GT55 plus |
Other grades of cemented carbide blanks for cold-forging dies may be offered according to customers' requirements.
Standard Dimensions
OD: 10-100mm
ID: 2-30mm
Length: 10-60mm
Other sizes available according to customer requirements.
Packaging and Delivery
| Packing | Paper + paper boxes + exported wooden cartons or paper cases. Custom packaging available per buyer requirements. |
| Shipping | UPS, TNT, EMS, Fedex, DHL, or as requested. |
| Delivery | 7-10 days after confirming all details. |
Product Range
We specialize in manufacturing all types of tungsten carbide profiles and dies, cutting tools, mining tools, wear parts, and custom non-standard tool parts with exceptional industry performance.
Company Profile
Zhuzhou Mingri Cemented Carbide Co., Ltd was established in 2001 with an investment of $10 million, covering an area of 33,300 square meters with 160 staff members. We hold 35 patents in invention, utility model and design, and maintain ISO9001:2015 Quality Certification and GB/T 24001-2004/ISO 14001:2004 Environmental Certification. We provide high-quality tungsten carbide products and technical services to clients worldwide. Our products are exported to the US, Europe, Japan, Taiwan, and Southeast Asia, earning trust and support from domestic and international customers.
Manufacturing Capabilities
Our comprehensive facilities include powder mixing, pressing, sintering, finishing, surface treatment, mould design workshops, and physical/chemical laboratories for comprehensive inspection. We operate hundreds of updated equipment units ensuring a monthly production capacity of 50 tons while maintaining excellent quality standards.
Quality Assurance
All products undergo strict ultrasonic inspection, with only defect-free items shipped. Our dies feature high density, exceptional wear resistance, and impact resistance for extended service life.
