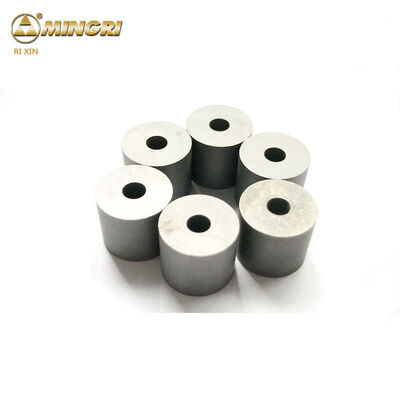

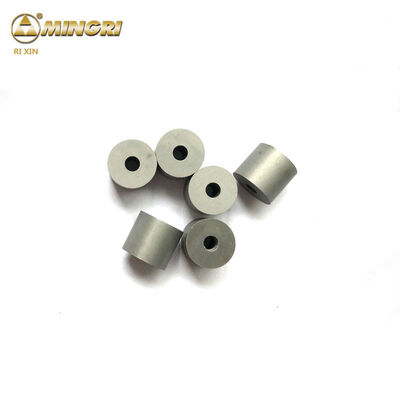

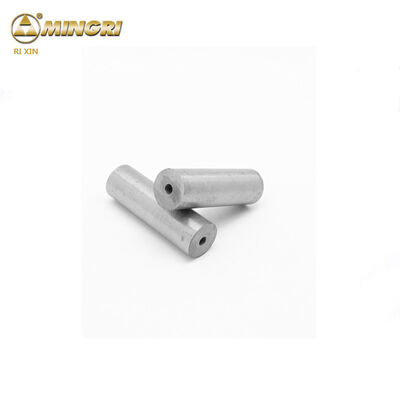

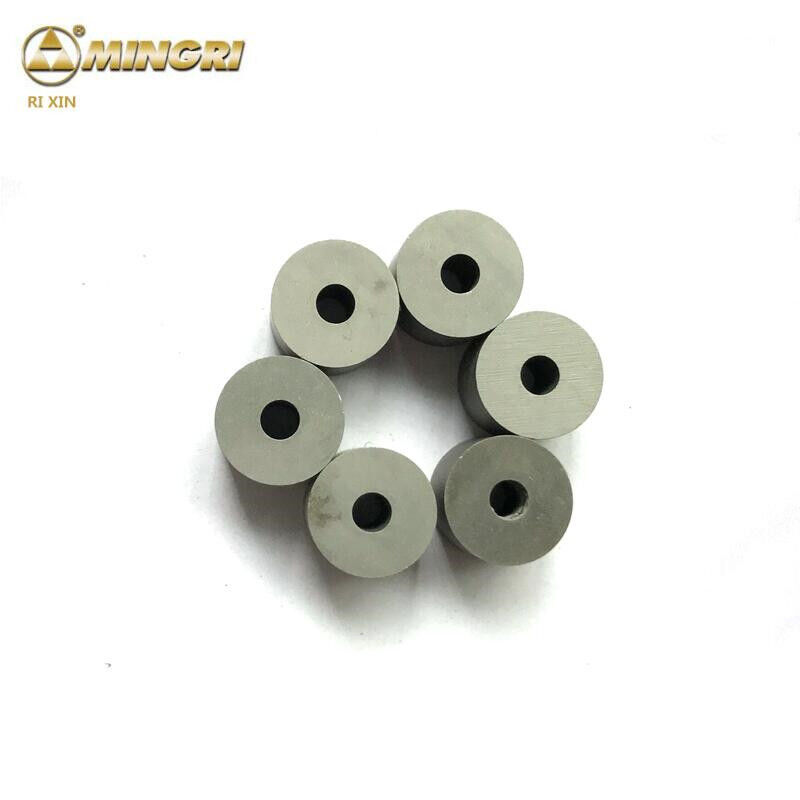

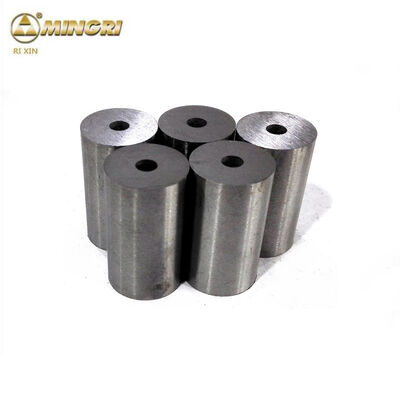

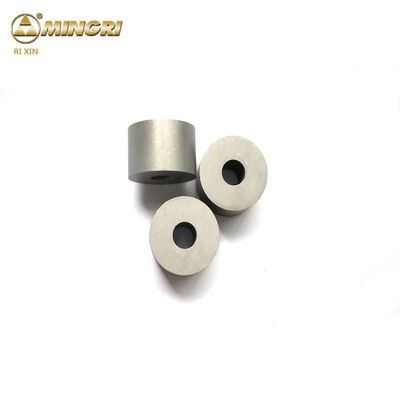

Customized OEM Polished Surface WC+Cobalt Tungsten Carbide Extrusion Die Mold for Tube Rod Drawing
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | RIXIN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $1.88 |
|
Detail Information |
|||
| Material: | WC+Cobalt | Grade: | YG20, YG20C, YG22C, YG25C, GT55, ML40, ML100 |
|---|---|---|---|
| Surface: | Polished, Sand-blasted, Grinding, Polishing | TRS: | > 3000 N/mm3 |
| Hardness: | 85-92HRA | Outer Diameter: | 10-100mm |
| Inner Diameter: | 2-30mm | Length: | 10-60mm |
| Density: | 13.1-14.4 G/cm3 | Bending Strength: | 2420-3100 MPα |
| Impact Resistance: | High | Wear Resistance: | Good |
| Tolerance: | Blank, Semi Finished, Finished | Surface Treatment: | Polished, Sand-blasted |
| Customizable Sizes: | Yes | ||
| Highlight: | Polished Surface Tungsten Carbide Die,Customized OEM Carbide Extrusion Die,WC+Cobalt Material Carbide Mold |
||
Product Description
Widia Customized OEM Polished Surface Cemented Tungsten Carbide Aluminum Extrusion Die Mold
Professional tungsten carbide die mold for tube and rod drawing/extrusion applications, manufactured by RIXIN.
Product Specifications
| Item | Tungsten carbide die |
| Grade | YG6, YG8, YG11, YG12, YG15, YG20, YG20C, YG22C, YG25C, GT55, ML40, ML100 |
| Sizes | Standard or customized |
| Brand | Rixin |
| Country of Origin | Zhuzhou, China |
| Usage | Cold heading die, forging mold, cold forming die, extrusion die, press mold, mould parts, die casting mould, punch dies, wire drawing die, machine mold, progressive die, trimming die, etc. |
- Tungsten carbide die blanks are widely used for making finished die casting mould, punch dies, wire drawing die, machine mold, progressive die, extrusion die, press mold, mould parts, trimming die, cold heading die, forging mold, and cold forming die
- Mingri maintains extensive stock of available moulds for various sizes of carbide dies, providing significant cost savings for customers
- Offers wide and stable grades for carbide dies with highest cost performance compared to Kennametal and Cbcarbide
Grade Specifications and Applications
| Grade | Density (g/cm³) | T.R.S (MPa) | Hardness (HRA) | Properties & Applications | Approx Grades in China |
|---|---|---|---|---|---|
| A | 13.5 | 3000 | 83.5 | Good wear resistance and bending strength. Preferred for nut forming dies and high impact-resistant dies. | -- |
| YM11 | 14.4 | 2420 | 88.5 | Forming or stamping dies for metal powders and non-metal powders. | YG11 |
| YM15 | 14.0 | 2500 | 87.5 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and forging tools under large stress. | YG15 |
| YM20 | 13.5 | 2800 | 85.5 | Suitable for manufacturing punching dies for watch parts, leaf spring of musical instruments, battery jars, small sized steel balls, screws, screw caps, etc. | YG20 |
| ML32 | 13.9 | 2750 | 85.5 | Suitable for impact-resistant forging dies. | YG16C |
| ML36 | 13.7 | 2800 | 84.5 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers. | YG18C |
| ML40 | 13.5 | 2850 | 83.5 | Suitable for wear resistant or impact resistant dies. | YG20C ZL40.2 |
| ML50 | 13.3 | 2900 | 83.0 | Suitable for nut forming dies and high impact-resistant dies. | YG22C ZL40.5 |
| ML60 | 13.1 | 2950 | 82.5 | Suitable for stainless screw dies and semifinishing rollers. | YG25C ZL40B |
| ML80 | 13.1 | 3050 | 83.4 | Suitable for screw cap forming dies with high strength (highest impact-resistant forging dies). | YG25C GT55 |
| ML100 | 13.1 | 3100 | 84 | Suitable for screw cap forming dies with high strength (highest impact-resistant forging dies). | GT55 plus |
Other grades of cemented carbide blanks for cold-forging dies may be offered according to customers' requirements.
Size Specifications
OD: 10-100mm
ID: 2-30mm
Length: 10-60mm
ID: 2-30mm
Length: 10-60mm
Other sizes can be offered according to customers requirements.
Packaging and Delivery
| Packing | Paper + paper boxes + exported wooden cartons or paper cases. As a manufacturer, Mingri can provide any kinds of package as buyer's requirement. |
| Shipping | UPS, TNT, EMS, Fedex, DHL, or as requested. |
| Delivery | 7-10 days after confirming all details. |
Main Products
We specialize in all kinds of tungsten carbide profiles and dies, cutting tools, mining tools, wear parts and all kinds of non-standard customized tool parts with high performance in the industry.
Company Information
Zhuzhou Mingri Cemented Carbide Co., Ltd was established in 2001 with the investment of 10 million dollars, area of 33300 square meters and 160 staffs. We have obtained 35 patents in invention, utility model and design, and passed ISO9001:2015 Certification in quality and GB/T 24001-2004/ISO 14001:2004 Certification in environment. We offer all kinds of high quality tungsten carbide products and technical services to all clients. Our products are exported to US, Europe, Japan, Taiwan and South-east Asia etc. We have won support and trust from customers both home and abroad.
Workshop Facilities
We have powder mixing, pressing, sintering, finishing, surface treatment, mould design workshops and physical and chemical labs for inspection. We have hundreds of updated equipments to ensure monthly capacity of 50 tons and excellent quality.
Quality Assurance
All products undergo strict ultrasonic inspection and only those without any defects such as pores are shipped out. Our products feature high density, high wear & impact resistance, ensuring long lifetime performance.
