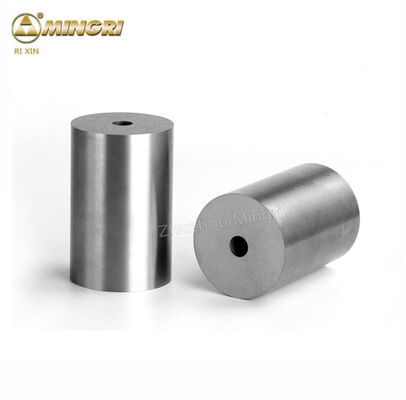

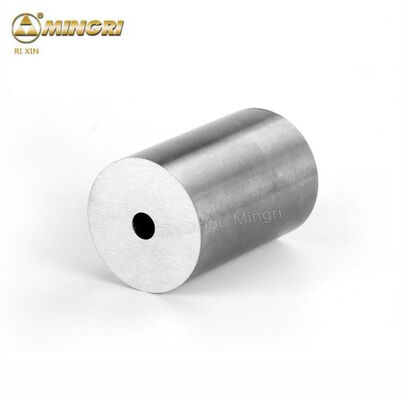

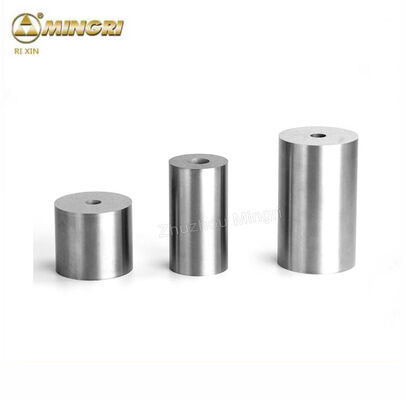

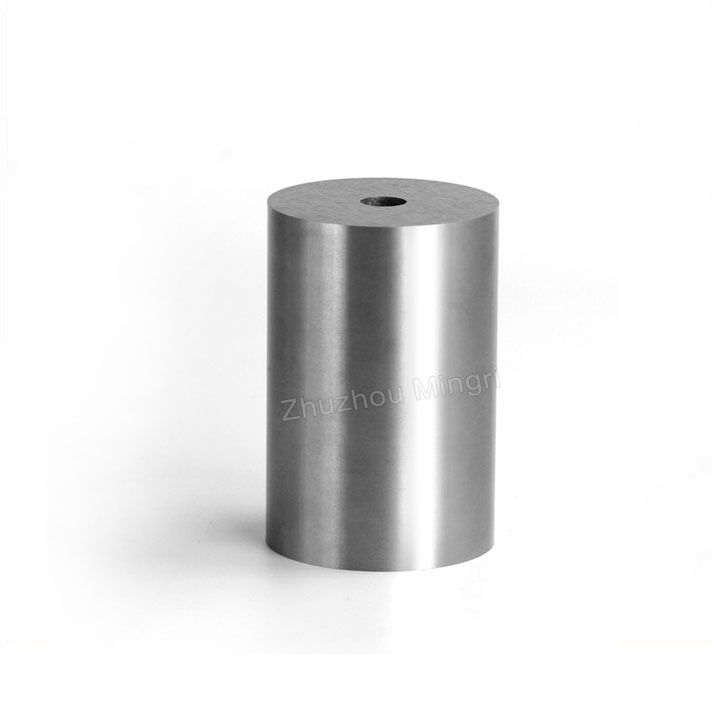

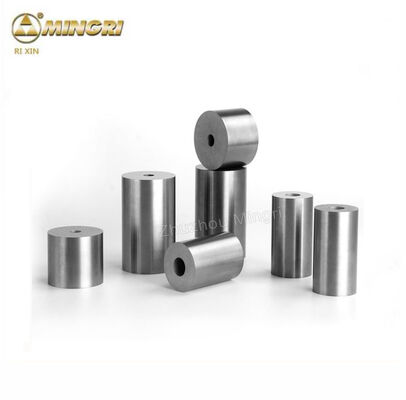

OEM Customized 100% Virgin Tungsten Carbide Nibs for Fastener Die Applications
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | RIXIN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $5-50 |
|
Detail Information |
|||
| Material: | 100% Virgin Tungsten Carbide | Color: | Silvery Grey |
|---|---|---|---|
| Surface Treatment: | Grinding, Sand Blasting | Grade: | G40, G55 |
| Density: | 14.4 G/cm3 (YG11) | Hardness: | 88.5 HRA (YG11) |
| Tensile Strength: | 2420 Mpa (YG11) | Die Blank Diameter: | 10-16 Mm |
| Die Blank Length: | 15-40 Mm | Tolerance: | +/-0.05 |
| Production Capacity: | 50 Tons/month | Workshop Area: | 8000 M2 |
| Sintering Furnaces: | 10 Sets | HIP Furnaces: | 2 Sets |
| Mould Inventory: | 10000 Sets | ||
| Highlight: | 100% Virgin Tungsten Carbide Nibs,OEM Customized Carbide Die Nibs,Fastener Die Application Tungsten Carbide Die |
||
Product Description
Tungsten Cemented Carbide Nibs for Fastener Die OEM Customized 100% Virgin Tungsten Carbide
Premium grade G40 G55 hard alloy dies tungsten cemented carbide nibs
Company Advantages
- Zhuzhou Mingri maintains the richest molds stock of Zhuzhou carbide punch die from Zhuzhou manufacturer
- 20 years of stable relationships with our customers
- The most advanced tooling house
- The largest production capacity and fastest delivery
- The most reliable testing machines for all specifications
- The best and reliable after-sales service
Technical Specifications
| Grade | Density g/cm³ | Hardness HRA | T.R.S MPa | Performance & Application Recommended |
|---|---|---|---|---|
| YG11 | 14.4 | 88.5 | 2420 | Forming or stamping dies for metal powders and nonmetal powders |
| YG15 | 14.0 | 87 | 3000 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and stamping tools under large stress |
| YG20 | 13.5 | 85.5 | 2800 | Suitable for manufacturing punching dies for watch parts, leaf spring of musical instrument, battery jars, small sized steel balls, screws, screw caps, etc |
| YG16C | 13.9 | 85 | 2750 | Suitable for impact-resistant forging dies |
| YG18C | 13.7 | 84 | 2800 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers |
| YG20C | 13.5 | 83 | 2850 | Suitable for wear resistant or impact resistant dies |
| YG22C | 13.3 | 82 | 2900 | Suitable for nut forming dies and high impact-resistant dies |
| YG25C | 13.1 | 81.5 | 2950 | Suitable for stainless screw dies and semifinishing rollers |
| Other grades and sizes can be offered as per customers' requirement | ||||
Standard Die Blank Sizes
| TYPE | d (mm) | D (mm) | L (mm) |
|---|---|---|---|
| BD0131015 | 10 | 1.3 | 15 |
| BD0171020 | 10 | 1.7 | 20 |
| BD0171230 | 12 | 1.7 | 30 |
| BD0211230 | 12 | 2.1 | 30 |
| BD0211630 | 16 | 2.1 | 30 |
| BD0241015 | 10 | 2.4 | 15 |
| BD0241225 | 12 | 2.4 | 25 |
| BD0291425 | 14 | 2.9 | 35 |
| BD0291640 | 16 | 2.9 | 40 |
| … | … | … | … |
Product Applications
- Carbide precision tooling & machine components
- Zhuzhou carbide punch die for the fastener industries
- Zhuzhou carbide punch die for bearing industries
- Forming tools
- Wear parts
- Standard, impact and trapped extrusion applications
- Segmented carbide wafer assemblies
- Segmented carbide die inserts or assemblies
Production Process
- Order confirmation triggers preparation of RTP powder using wet-grinding machines
- Trial pressing and sintering with mold verification using micrometers and projectors
- Bulk production with pressing of raw materials into shaped blanks
- Semi-finished inspection before sintering
- Sintering process using 10 sets of vacuum sintering furnaces and 2 sets of HIP equipment
- Final inspection and optional cleaning/tumbling for enhanced appearance
- Grinding to tolerance of +/-0.05mm as per customer requirements
Packaging & Shipping
- Individual paper wrapping to prevent breakage
- Inner carton box packaging
- Outer carton with foamed plastic filling
- Secure packaging tape sealing
- Multiple delivery options including DHL, TNT, UPS
Company Profile
Our company employs 230 workers with 8000 m² non-dust workshop, 10000 sets of molds, and 10 specialized workshops including grinding powder, pressing, sintering, processing, and mold production. Monthly production capacity reaches 50 tons. Our well-known brand "Ri Xin" has been registered in Europe for 6 years, with ISO and CE certification. Located one hour from Shanghai port, we maintain superior quality and competitive pricing for global customers.
Product range includes cold heading dies, wire drawing dies, strips and plates, saw tips, brazed tips, disc cutters, round rods, rock drilling bits and buttons, milling tools, and customized solutions.
Why Choose Zhuzhou Mingri
- Alibaba Trade Assurance ensures 100% payment protection if contract terms are not met
- 21 years of factory experience specializing in carbide punch die research and manufacturing
- Global customer base with positive feedback and reviews from multiple countries
