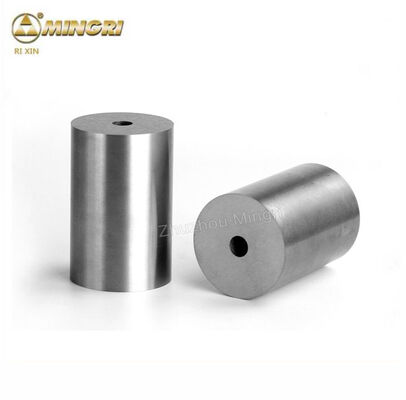

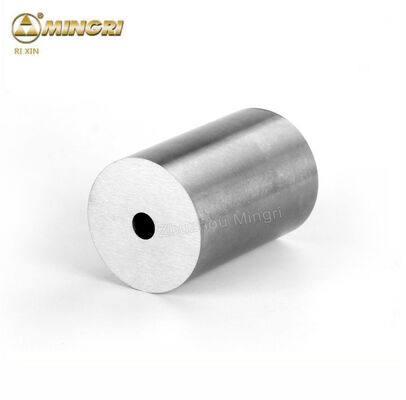

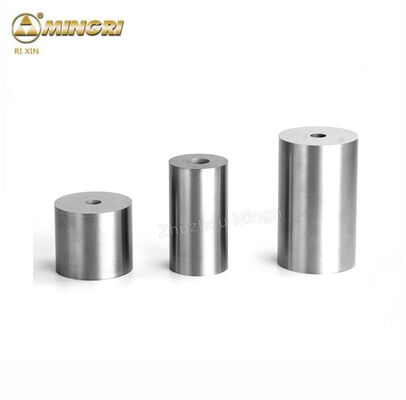

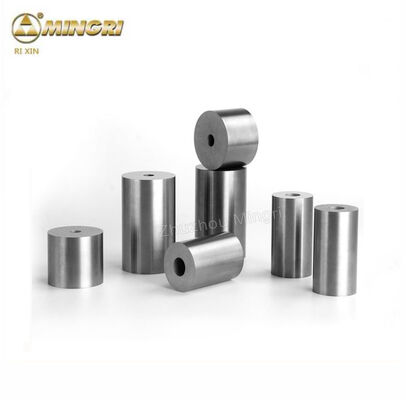

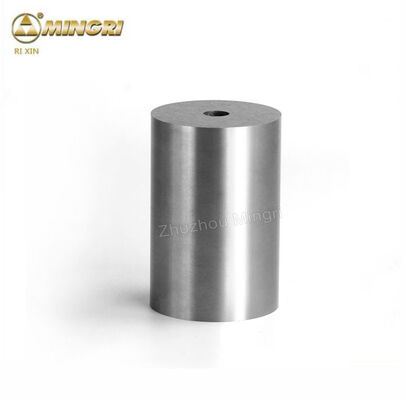

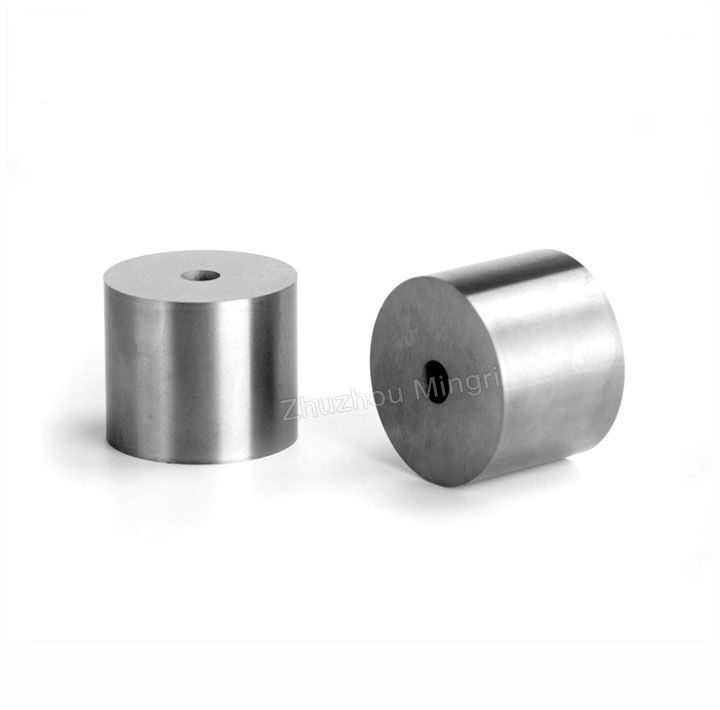

ISO9001 Certified 100% Virgin Tungsten Carbide Heading Nibs with 3-Year Warranty for Fastener Die Use
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | RIXIN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $32-50 |
|
Detail Information |
|||
| Material: | 100% Virgin Tungsten Carbide | Color: | Silvery Grey |
|---|---|---|---|
| Surface Treatment: | Grinding | Grade Density: | 14.4 G/cm3 (YG11) |
| Hardness HRA: | 88.5 (YG11) | T.R.S: | 2420 Mpa (YG11) |
| Die Blank Diameter: | 10-16 Mm | Die Blank Thickness: | 1.3-2.9 Mm |
| Die Blank Length: | 15-40 Mm | Tolerance: | +/-0.05 |
| Production Capacity: | 50 Tons/month | Workshop Area: | 8000 M2 |
| Sintering Furnaces: | 10 Sets | HIP Furnaces: | 2 Sets |
| Mould Inventory: | 10000 Sets | ||
| Highlight: | ISO9001 Certified Tungsten Carbide Heading Nibs,100% Virgin Tungsten Carbide Heading Dies,3-Year Warranty Carbide Die Nibs |
||
Product Description
High Quality OEM Tungsten Carbide Heading Nibs
Premium tungsten carbide heading nibs for nuts, screws, rivets, and fastener die applications. ISO9001 certified RIXIN brand with 3-year quality guarantee.
Manufacturing Excellence
- Zhuzhou Mingri maintains the richest mold stock of Zhuzhou carbide punch dies
- 20 years of stable customer relationships and industry experience
- Advanced tooling house with state-of-the-art equipment
- Largest production capacity with fastest delivery times
- Comprehensive testing machines for all specifications
- Reliable after-sales service and technical support
Material Specifications
| Grade | Density g/cm³ | Hardness HRA | T.R.S MPa | Performance & Application |
|---|---|---|---|---|
| YG11 | 14.4 | 88.5 | 2420 | Forming or stamping dies for metal powders and nonmetal powders |
| YG15 | 14.0 | 87 | 3000 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and stamping tools under large stress |
| YG20 | 13.5 | 85.5 | 2800 | Suitable for manufacturing punching dies for watch parts, leaf spring of musical instrument, battery jars, small sized steel balls, screws, screw caps, etc. |
| YG16C | 13.9 | 85 | 2750 | Suitable for impact-resistant forging dies |
| YG18C | 13.7 | 84 | 2800 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers |
| YG20C | 13.5 | 83 | 2850 | Suitable for wear resistant or impact resistant dies |
| YG22C | 13.3 | 82 | 2900 | Suitable for nut forming dies and high impact-resistant dies |
| YG25C | 13.1 | 81.5 | 2950 | Suitable for stainless screw dies and semifinishing rollers |
Other grades and sizes available according to customer requirements.
Standard Die Blank Sizes
| TYPE | d (mm) | D (mm) | L (mm) |
|---|---|---|---|
| BD0131015 | 10 | 1.3 | 15 |
| BD0171020 | 10 | 1.7 | 20 |
| BD0171230 | 12 | 1.7 | 30 |
| BD0211230 | 12 | 2.1 | 30 |
| BD0211630 | 16 | 2.1 | 30 |
| BD0241015 | 10 | 2.4 | 15 |
| BD0241225 | 12 | 2.4 | 25 |
| BD0291425 | 14 | 2.9 | 35 |
| BD0291640 | 16 | 2.9 | 40 |
| … | … | … | … |
Product Applications
- Carbide precision tooling and machine components
- Fastener industry applications
- Bearing industry components
- Forming tools and dies
- Wear-resistant parts
- Standard, impact, and trapped extrusion applications
- Segmented carbide wafer assemblies
- Segmented carbide die inserts and assemblies
Production Process
- Order confirmation initiates RTP powder preparation using wet-grinding machines
- Trial pressing and sintering with mold verification using micrometers and projectors
- Bulk production with raw material pressing and semi-finished inspection
- Sintering process using 10 vacuum sintering furnaces and 2 HIP units
- Cleaning/tumbling for enhanced appearance
- Precision grinding available to tolerance of ±0.05mm
Packaging & Shipping
- Paper wrapping to prevent breakage
- Inner carton box protection
- Outer carton with foam padding
- Secure packaging tape sealing
- Flexible delivery options including DHL, TNT, UPS
Company Profile
230 employees, 8000 m² dust-free workshop, 10000 mold sets, 10 specialized workshops including grinding powder, pressing, sintering, processing, and mold production. Monthly production capacity of 50 tons. Well-known "Ri Xin" brand registered in Europe for 6 years, ISO and CE certified. Located one hour from Shanghai port.
Product Range
Cold heading dies, wire drawing dies, strips and plates, saw tips, brazed tips, disc cutters, round rods, rock drilling bits and buttons, milling tools, and custom solutions.
Why Choose RIXIN
- Alibaba Trade Assurance for buyer protection and 100% payment return if contract terms are not met
- 21 years of manufacturing expertise in Zhuzhou carbide punch dies
- Global customer base with positive feedback and reviews
