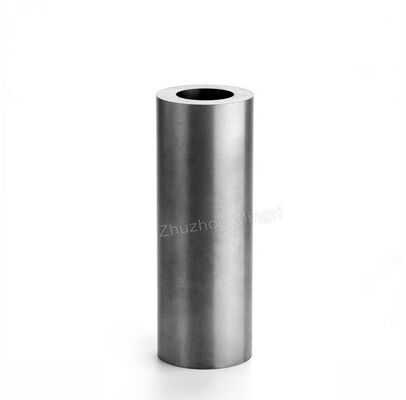

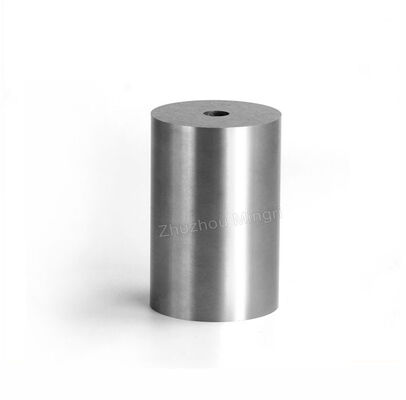

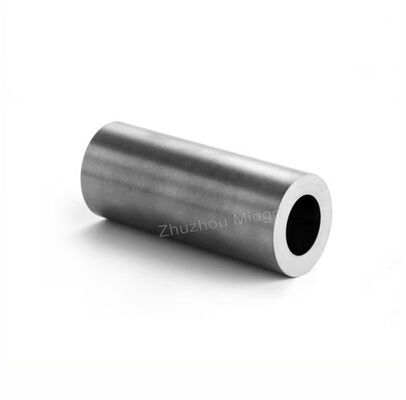

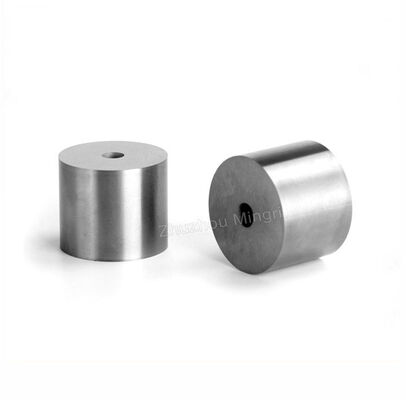

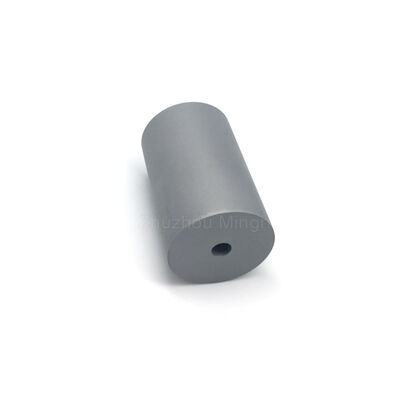

Long-Life Customizable OEM 100% Virgin Tungsten Carbide Die Nut Forming Die Nibs
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | RIXIN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $32-50 |
|
Detail Information |
|||
| Material: | 100% Virgin Tungsten Carbide | Color: | Silvery Grey |
|---|---|---|---|
| Surface Treatment: | Grinding, Sand Blasting | Density YG11: | 14.4 G/cm3 |
| Hardness YG11: | 88.5 HRA | T.R.S YG11: | 2420 Mpa |
| Density YG15: | 14.0 G/cm3 | Hardness YG15: | 87 HRA |
| T.R.S YG15: | 3000 Mpa | Density YG20: | 13.5 G/cm3 |
| Hardness YG20: | 85.5 HRA | T.R.S YG20: | 2800 Mpa |
| Die Blank D: | 10 Mm | Die Blank D: | 1.3 Mm |
| Die Blank L: | 15 Mm | ||
| Highlight: | Long-Life Tungsten Carbide Die,Customizable OEM Carbide Nut Nibs,100% Virgin Tungsten Carbide Nut Forming Die |
||
Product Description
High Quality Tungsten Carbide Nut Forming Die Nibs
Long-life, customizable OEM polishing dies for industrial applications
Product Overview
- Zhuzhou Mingri maintains the richest inventory of carbide punch dies from Zhuzhou manufacturers
- 20 years of stable relationships with global customers
- Advanced tooling house with state-of-the-art equipment
- Largest production capacity with fastest delivery times
- Comprehensive testing machines for all specifications
- Reliable after-sales service and technical support
Material Specifications
| Grade | Density g/cm³ | Hardness HRA | T.R.S MPa | Performance & Application |
|---|---|---|---|---|
| YG11 | 14.4 | 88.5 | 2420 | Forming or stamping dies for metal powders and nonmetal powders |
| YG15 | 14.0 | 87 | 3000 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and stamping tools under large stress |
| YG20 | 13.5 | 85.5 | 2800 | Suitable for manufacturing punching dies for watch parts, leaf spring of musical instrument, battery jars, small sized steel balls, screws, screw caps, etc. |
| YG16C | 13.9 | 85 | 2750 | Suitable for impact-resistant forging dies |
| YG18C | 13.7 | 84 | 2800 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers |
| YG20C | 13.5 | 83 | 2850 | Suitable for wear resistant or impact resistant dies |
| YG22C | 13.3 | 82 | 2900 | Suitable for nut forming dies and high impact-resistant dies |
| YG25C | 13.1 | 81.5 | 2950 | Suitable for stainless screw dies and semifinishing rollers |
| Other grades and sizes can be offered as per customers' requirements | ||||
Standard Die Blank Sizes
| TYPE | d | D | L |
|---|---|---|---|
| BD0131015 | 10 | 1.3 | 15 |
| BD0171020 | 10 | 1.7 | 20 |
| BD0171230 | 12 | 1.7 | 30 |
| BD0211230 | 12 | 2.1 | 30 |
| BD0211630 | 16 | 2.1 | 30 |
| BD0241015 | 10 | 2.4 | 15 |
| BD0241225 | 12 | 2.4 | 25 |
| BD0291425 | 14 | 2.9 | 35 |
| BD0291640 | 16 | 2.9 | 40 |
| … | … | … | … |
Product Applications
- Carbide precision tooling & machine components
- Fastener industry applications
- Bearing industry components
- Forming tools and dies
- Wear-resistant parts
- Standard, impact, and trapped extrusion applications
- Segmented carbide wafer assemblies
- Segmented carbide die inserts and assemblies
Production Process
- Order confirmation initiates RTP powder preparation using wet-grinding machines
- Trial pressing and sintering with comprehensive quality checks using micrometers and projectors
- Bulk production with raw materials pressed into shaped blanks
- Sintering process using 10 vacuum sintering furnaces and 2 HIP units
- Cleaning/tumbling for enhanced appearance and precision grinding to ±0.05 tolerance
Packaging & Shipping
- Paper wrapping to prevent damage during transit
- Secure placement in inner carton boxes
- Outer carton packaging with foam cushioning
- Reinforced packaging with protective tape
- Flexible shipping options including DHL, TNT, UPS and others
Company Profile
Zhuzhou Mingri employs 230 workers in an 8000 m² dust-free workshop with 10,000 sets of molds. Our production capacity reaches 50 tons per month across 10 specialized workshops. The well-known "Ri Xin" brand is registered in Europe, with ISO and CE certifications. Strategic location provides one-hour access to Shanghai port, ensuring superior quality and competitive pricing for global customers.
Product Range
Our comprehensive product line includes cold heading dies, wire drawing dies, strips and plates, saw tips, brazed tips, disc cutters, round rods, rock drilling bits and buttons, milling tools, and custom solutions tailored to specific customer requirements.
