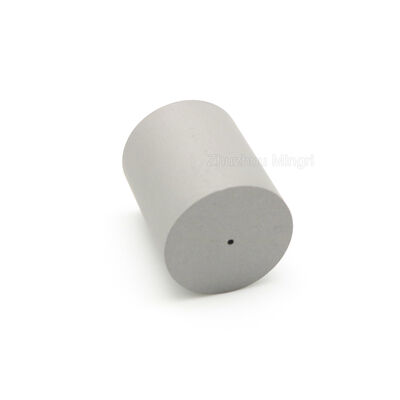

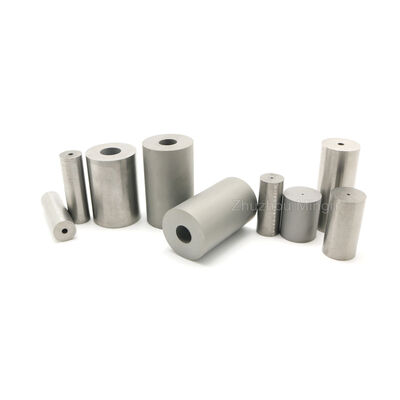

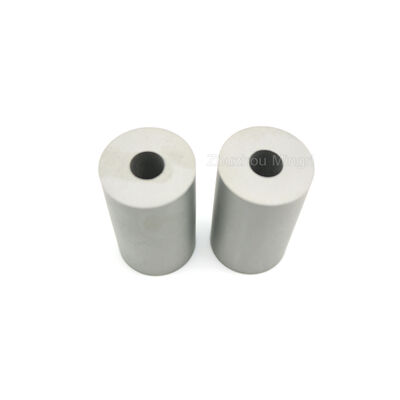

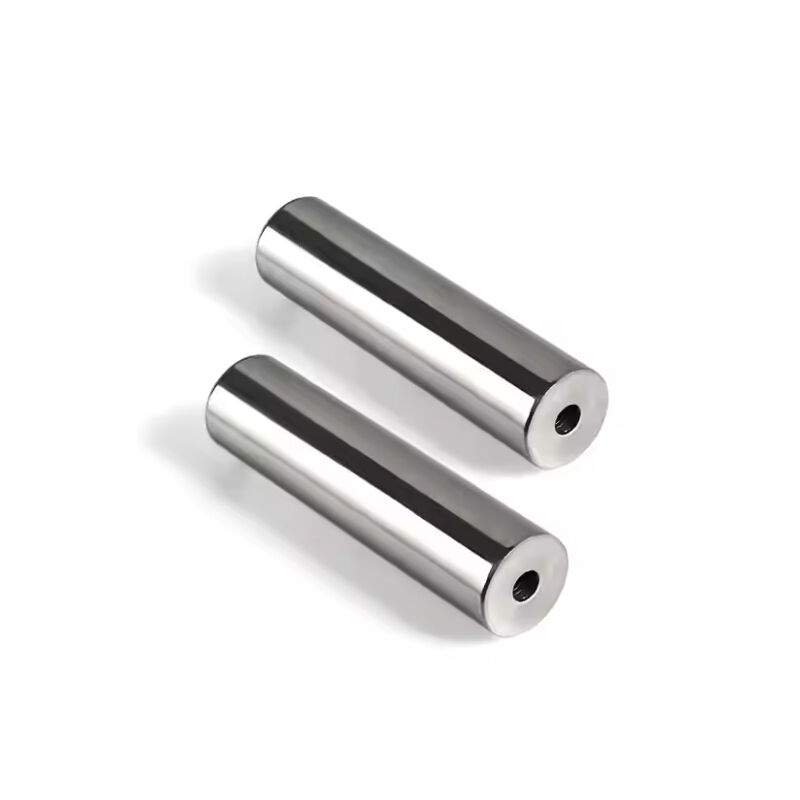

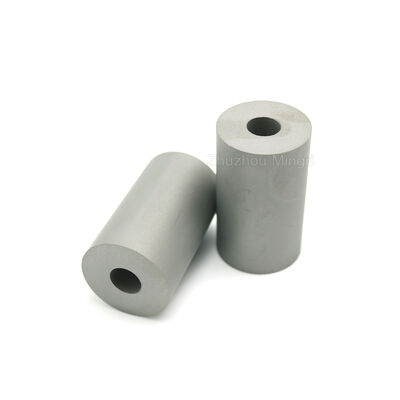

YG20C YG25C High Performance 100% Virgin Tungsten Carbide Die ISO9001 Certified with 3-Year Warranty for Cold Forging Nibs
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | RIXIN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $32-50 |
|
Detail Information |
|||
| Material: | 100% Virgin Tungsten Carbide | Color: | Silvery Grey |
|---|---|---|---|
| Surface Treatment: | Sand Blasting | Density YG11: | 14.4 G/cm3 |
| Hardness YG11: | 88.5 HRA | T.R.S YG11: | 2420 Mpa |
| Density YG15: | 14.0 G/cm3 | Hardness YG15: | 87 HRA |
| T.R.S YG15: | 3000 Mpa | Density YG20: | 13.5 G/cm3 |
| Hardness YG20: | 85.5 HRA | T.R.S YG20: | 2800 Mpa |
| Die Blank D: | 10-16 Mm | Die Blank D: | 1.3-2.9 Mm |
| Die Blank L: | 15-40 Mm | ||
| Highlight: | 100% Virgin Tungsten Carbide Die,ISO9001 Certified Tungsten Carbide Die,3-Year Warranty Cold Heading Dies |
||
Product Description
YG20C YG25C High Performance Tungsten Carbide Cold Tool Parts
Premium 100% virgin tungsten carbide cold forging nibs and cold heading dies manufactured by RIXIN Brand, ISO9001 certified with 3-year warranty and OEM support.
Manufacturing Excellence
- Zhuzhou Mingri maintains the richest inventory of carbide punch die molds from Zhuzhou manufacturers
- 20 years of stable customer relationships and industry expertise
- State-of-the-art tooling facilities and production capabilities
- Largest production capacity with fastest delivery times in the industry
- Comprehensive testing equipment for all product specifications
- Reliable after-sales service and technical support
Tungsten Carbide Grade Specifications
| Grade | Density g/cm³ | Hardness HRA | T.R.S MPa | Performance & Application |
|---|---|---|---|---|
| YG11 | 14.4 | 88.5 | 2420 | Forming or stamping dies for metal powders and nonmetal powders |
| YG15 | 14.0 | 87 | 3000 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and stamping tools under large stress |
| YG20 | 13.5 | 85.5 | 2800 | Suitable for manufacturing punching dies for watch parts, leaf spring of musical instrument, battery jars, small sized steel balls, screws, screw caps, etc. |
| YG16C | 13.9 | 85 | 2750 | Suitable for impact-resistant forging dies |
| YG18C | 13.7 | 84 | 2800 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers |
| YG20C | 13.5 | 83 | 2850 | Suitable for wear resistant or impact resistant dies |
| YG22C | 13.3 | 82 | 2900 | Suitable for nut forming dies and high impact-resistant dies |
| YG25C | 13.1 | 81.5 | 2950 | Suitable for stainless screw dies and semi-finishing rollers |
Other grades and sizes available according to customer requirements.
Standard Die Blank Sizes
| Type | d (mm) | D (mm) | L (mm) |
|---|---|---|---|
| BD0131015 | 10 | 1.3 | 15 |
| BD0171020 | 10 | 1.7 | 20 |
| BD0171230 | 12 | 1.7 | 30 |
| BD0211230 | 12 | 2.1 | 30 |
| BD0211630 | 16 | 2.1 | 30 |
| BD0241015 | 10 | 2.4 | 15 |
| BD0241225 | 12 | 2.4 | 25 |
| BD0291425 | 14 | 2.9 | 35 |
| BD0291640 | 16 | 2.9 | 40 |
| … | … | … | … |
Product Applications
- Carbide precision tooling and machine components
- Zhuzhou carbide punch die for fastener industries
- Zhuzhou carbide punch die for bearing industries
- Forming tools and industrial applications
- Wear-resistant parts and components
- Standard, impact, and trapped extrusion applications
- Segmented carbide wafer assemblies in various forms
- Segmented carbide die inserts and assemblies
Production Process
- Order confirmation initiates RTP powder preparation using wet-grinding machines
- Trial pressing and sintering with comprehensive quality checks using micrometers and projectors
- Bulk production with raw materials pressed into shaped blanks
- Semi-finished inspection before sintering process
- Vacuum sintering (HIP) with 10 furnaces ensuring optimal quality and capacity
- Cleaning/tumbling for enhanced appearance and precision grinding to ±0.05 tolerance
Packaging & Shipping
- Individual paper wrapping to prevent breakage
- Secure placement in inner carton boxes
- Outer carton protection with foamed plastic cushioning
- Reinforced packaging with secure tape sealing
- Flexible shipping options including DHL, TNT, UPS and other carriers
Company Overview
Zhuzhou Mingri employs 230 workers in an 8000 m² dust-free workshop with 10,000 mold sets. Monthly production capacity reaches 50 tons under the well-known "Ri Xin" brand, registered in Europe for 6 years with ISO and CE certification. Strategic location provides one-hour access to Shanghai port, ensuring superior quality and competitive pricing for global customers.
Product Range
Comprehensive product line includes cold heading dies, wire drawing dies, strips and plates, saw tips, brazed tips, disc cutters, round rods, rock drilling bits and buttons, milling tools, plus customized solutions for specific requirements.
