100% Virgin Tungsten Carbide Die ISO9001:2008 Certified Customizable OEM/ODM Carbide Cold Heading Nibs for Fastener Dies
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | RIXIN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $32-50 |
|
Detail Information |
|||
| Material: | 100% Virgin Tungsten Carbide | Color: | Silvery Grey |
|---|---|---|---|
| Grade YG11 Density: | 14.4 G/cm3 | Grade YG11 Hardness: | 88.5 HRA |
| Grade YG11 TRS: | 2420 Mpa | Grade YG15 Density: | 14.0 G/cm3 |
| Grade YG15 Hardness: | 87 HRA | Grade YG15 TRS: | 3000 Mpa |
| Grade YG20 Density: | 13.5 G/cm3 | Grade YG20 Hardness: | 85.5 HRA |
| Grade YG20 TRS: | 2800 Mpa | Die Blank D: | 10 Mm |
| Die Blank D: | 1.3 Mm | Die Blank L: | 15 Mm |
| Surface Treatment: | Sand Blasting | ||
| Highlight: | 100% Virgin Tungsten Carbide Die,ISO9001:2008 Certified Carbide Cold Heading Nibs,Customizable OEM/ODM Carbide Punch Die |
||
Product Description

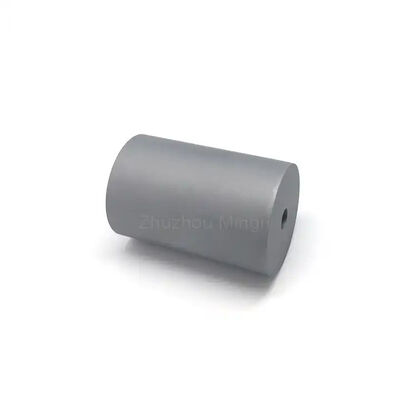

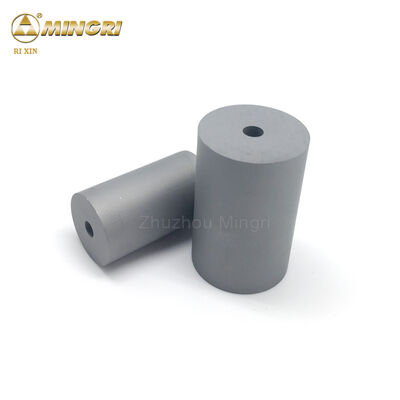

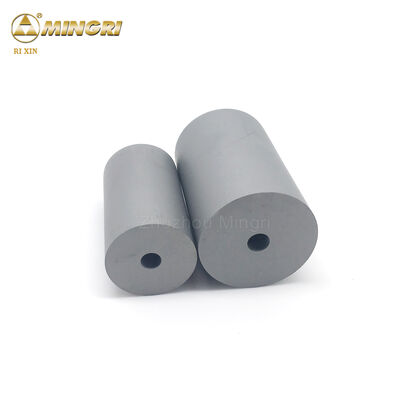

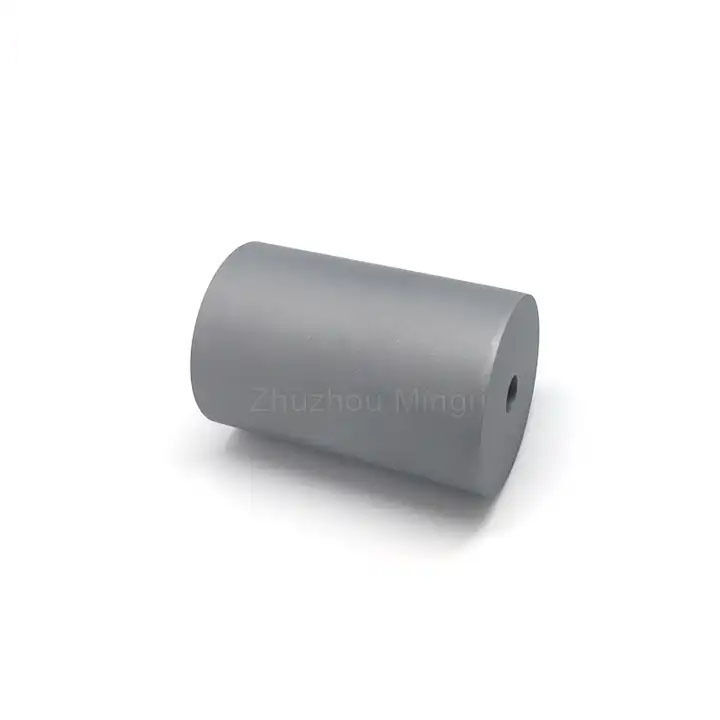

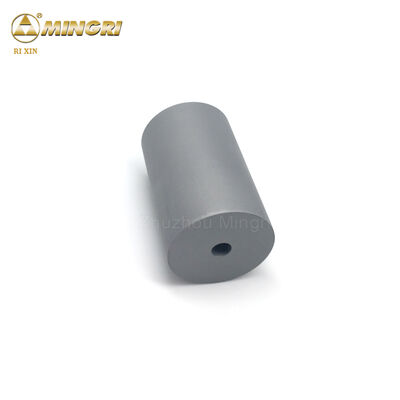

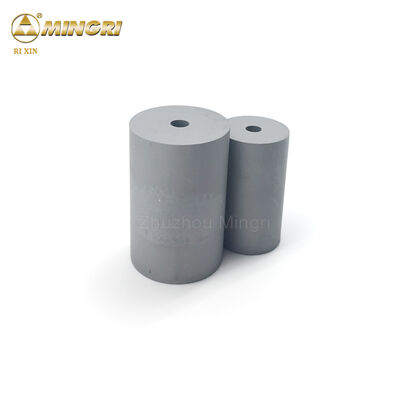

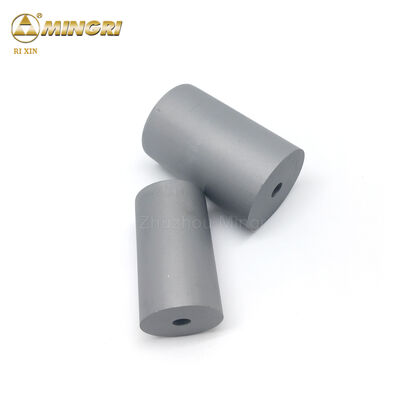

High Quality Tungsten Carbide Cold Heading Nibs
Premium tungsten cemented carbide cold heading nibs designed for nuts, screws, and mould applications.
Company Advantages
- Zhuzhou Mingri maintains the richest inventory of carbide punch dies from Zhuzhou manufacturers
- Years of stable relationships with our valued customers
- Most advanced tooling facilities and equipment
- Largest production capacity with fastest delivery times
- Comprehensive testing machines for all specifications
- Reliable after-sales service and technical support
Material Specifications
| Grade | Density g/cm³ | Hardness HRA | T.R.S MPa | Performance & Application |
|---|---|---|---|---|
| YG11 | 14.4 | 88.5 | 2420 | Forming or stamping dies for metal and nonmetal powders |
| YG15 | 14.0 | 87 | 3000 | Drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and stamping tools under large stress |
| YG20 | 13.5 | 85.5 | 2800 | Manufacturing punching dies for watch parts, leaf spring of musical instrument, battery jars, small sized steel balls, screws, screw caps |
| YG16C | 13.9 | 85 | 2750 | Impact-resistant forging dies |
| YG18C | 13.7 | 84 | 2800 | Impact-resistant forging dies, hot-forging dies and finishing rollers |
| YG20C | 13.5 | 83 | 2850 | Wear resistant or impact resistant dies |
| YG22C | 13.3 | 82 | 2900 | Nut forming dies and high impact-resistant dies |
| YG25C | 13.1 | 81.5 | 2950 | Stainless screw dies and semi-finishing rollers |
| Other grades and sizes available as per customer requirements | ||||
Standard Die Blank Sizes
| TYPE | d | D | L |
|---|---|---|---|
| BD0131015 | 10 | 1.3 | 15 |
| BD0171020 | 10 | 1.7 | 20 |
| BD0171230 | 12 | 1.7 | 30 |
| BD0211230 | 12 | 2.1 | 30 |
| BD0211630 | 16 | 2.1 | 30 |
| BD0241015 | 10 | 2.4 | 15 |
| BD0241225 | 12 | 2.4 | 25 |
| BD0291425 | 14 | 2.9 | 35 |
| BD0291640 | 16 | 2.9 | 40 |
| … | … | … | … |
Product Applications
- Carbide precision tooling and machine components
- Carbide punch dies for fastener industries
- Carbide punch dies for bearing industries
- Forming tools for various manufacturing processes
- Wear-resistant parts for industrial equipment
- Standard, impact, and trapped extrusion applications
- Segmented carbide wafer assemblies in various forms
- Segmented carbide die inserts and assemblies
Manufacturing Process
- Order confirmation initiates RTP powder preparation using wet-grinding machines
- Trial pressing and sintering with each mould to verify specifications before mass production
- Bulk production with raw materials pressed into shaped blanks
- Semi-finished inspection of all carbide punch die blanks
- Sintering blanks to finish using HIP (Hot Isostatic Pressing) technology
- Final product inspection with 10 vacuum sintering furnaces and 2 HIP systems ensuring quality and capacity
- Cleaning/tumbling for enhanced appearance
- Grinding available to tolerance of ±0.05mm per customer requirements
Packaging & Shipping
- Individual paper wrapping to prevent damage
- Inner carton box packaging
- Outer carton with foam plastic filling
- Secure packaging tape sealing
- Flexible delivery options including DHL, TNT, UPS
Company Overview
Our facility employs 230 workers in an 8000 m² dust-free workshop with 10,000 mould sets. Monthly production capacity reaches 50 tons. Our "Ri Xin" brand is registered in Europe, ISO and CE certified, with convenient access to Shanghai port for superior quality and competitive global offerings.
Product Range
Cold heading dies, wire drawing dies, strips and plates, saw tips, brazed tips, disc cutters, round rods, rock drilling bits and buttons, milling tools, plus customized solutions.
Why Choose Zhuzhou Mingri
- Alibaba Trade Assurance protection - 100% payment refund if contract terms aren't met
- 21 years of manufacturing expertise in carbide punch dies
- Dedicated to research and development of diverse types and sizes
- Global customer base with positive feedback and reviews worldwide
