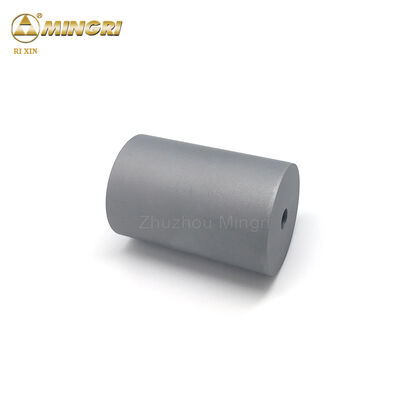

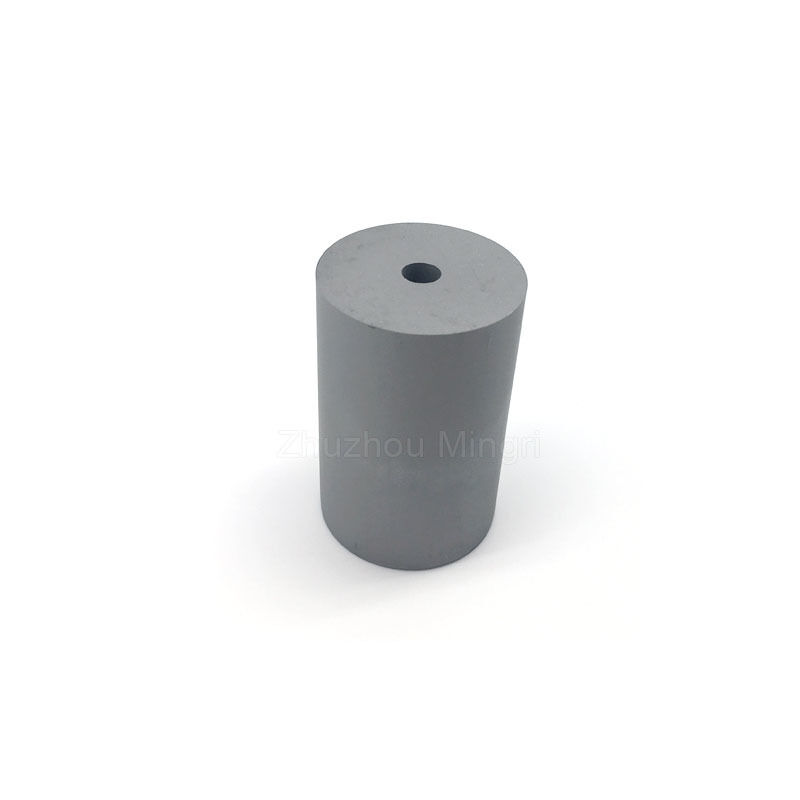

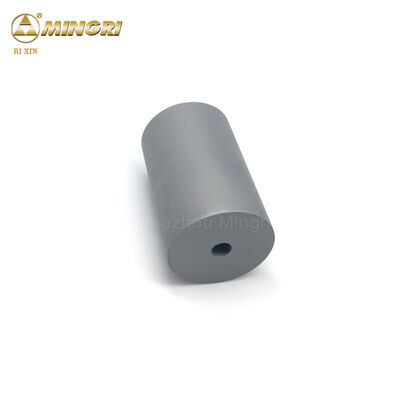

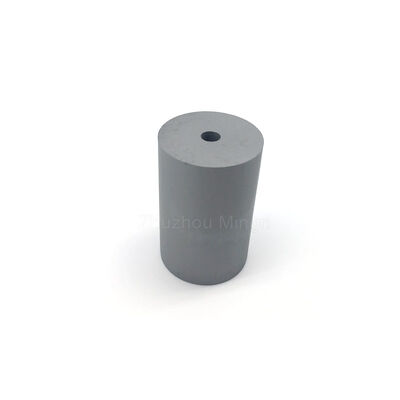

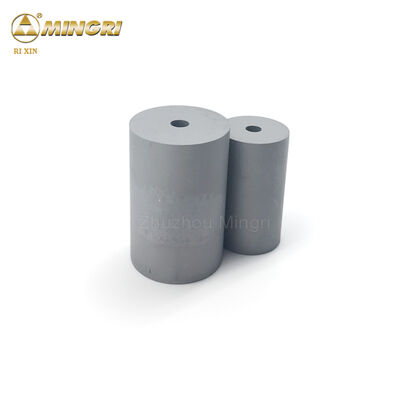

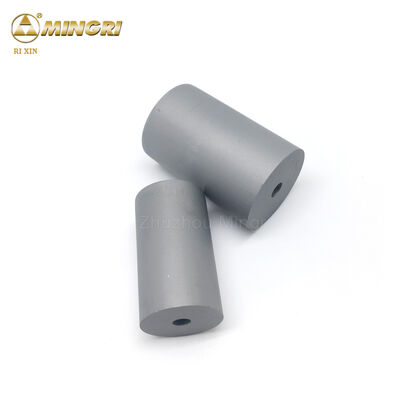

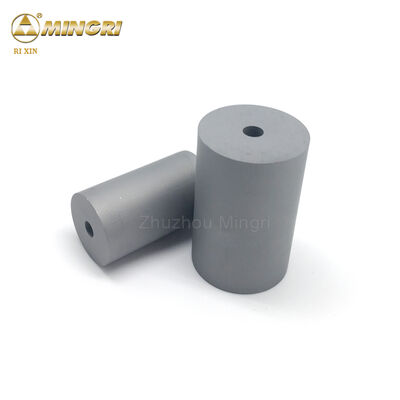

100% Virgin Tungsten Carbide ISO9001:2008 Certified OEM Support Carbide Heading Die and Punching Die for Fastener Industries
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | RIXIN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $32-50 |
|
Detail Information |
|||
| Material: | 100% Virgin Tungsten Carbide | Color: | Silvery Grey |
|---|---|---|---|
| Surface Treatment: | Grinding, Sand Blasting/grinding | Density: | 14.4 G/cm3 (YG11) |
| Hardness: | 88.5 HRA (YG11) | Tensile Strength: | 2420 Mpa (YG11) |
| Die Blank Diameter: | 10-16 Mm | Die Blank Length: | 15-40 Mm |
| Tolerance: | +/-0.05 Mm | Production Capacity: | 50 Tons/month |
| Workshop Area: | 8000 M2 | Sintering Furnaces: | 10 Sets |
| HIP Furnaces: | 2 Sets | Mould Inventory: | 10000 Sets |
| Powder Preparation: | Wet-grinding Machine | ||
| Highlight: | 100% Virgin Tungsten Carbide Die,ISO9001:2008 Certified Carbide Die,OEM Support Carbide Heading Die |
||
Product Description
ML100 / G5 Tungsten Carbide Heading Dies for Nuts and Bolts
High-performance tungsten cemented carbide heading dies and punching dies for tool parts, designed for fastener and bearing industries.
Product Advantages
- Zhuzhou Mingri maintains the richest inventory of carbide punch dies from Zhuzhou manufacturers
- 20 years of stable relationships with global customers
- Most advanced tooling house with modern equipment
- Largest production capacity and fastest delivery times
- Comprehensive testing machines for all specifications
- Reliable after-sales service and technical support
Material Specifications
| Grade | Density g/cm³ | Hardness HRA | T.R.S MPa | Performance & Application |
|---|---|---|---|---|
| YG11 | 14.4 | 88.5 | 2420 | Forming or stamping dies for metal powders and nonmetal powders |
| YG15 | 14.0 | 87 | 3000 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and stamping tools under large stress |
| YG20 | 13.5 | 85.5 | 2800 | Suitable for manufacturing punching dies for watch parts, leaf spring of musical instrument, battery jars, small sized steel balls, screws, screw caps, etc. |
| YG16C | 13.9 | 85 | 2750 | Suitable for impact-resistant forging dies |
| YG18C | 13.7 | 84 | 2800 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers |
| YG20C | 13.5 | 83 | 2850 | Suitable for wear resistant or impact resistant dies |
| YG22C | 13.3 | 82 | 2900 | Suitable for nut forming dies and high impact-resistant dies |
| YG25C | 13.1 | 81.5 | 2950 | Suitable for stainless screw dies and semifinishing rollers |
| Other grades and sizes can be offered as per customers' requirements | ||||
Standard Die Blank Sizes
| TYPE | d (mm) | D (mm) | L (mm) |
|---|---|---|---|
| BD0131015 | 10 | 1.3 | 15 |
| BD0171020 | 10 | 1.7 | 20 |
| BD0171230 | 12 | 1.7 | 30 |
| BD0211230 | 12 | 2.1 | 30 |
| BD0211630 | 16 | 2.1 | 30 |
| BD0241015 | 10 | 2.4 | 15 |
| BD0241225 | 12 | 2.4 | 25 |
| BD0291425 | 14 | 2.9 | 35 |
| BD0291640 | 16 | 2.9 | 40 |
| … | … | … | … |
Product Applications
- Carbide precision tooling & machine components
- Fastener industry applications
- Bearing industry manufacturing
- Forming tools and dies
- Wear-resistant parts
- Standard, impact, and trapped extrusion applications
- Segmented carbide wafer assemblies
- Segmented carbide die inserts and assemblies
Production Process
- Upon order confirmation, prepare RTP powder using wet-grinding machines according to customer specifications
- Conduct trial pressing and sintering with each mold, verifying appearance and dimensions with precision measuring instruments
- Bulk production with raw materials pressed into shaped blanks, all undergoing semi-finished inspection
- Sinter blanks to finished products (HIP process) with comprehensive finished product inspection
- Cleaning/tumbling for improved appearance and optional grinding to tolerance of ±0.05mm
Packaging & Shipping
- Individual paper wrapping to prevent damage
- Secure placement in inner carton boxes
- Outer carton packaging with foam cushioning
- Reinforced packaging with protective tape
- Flexible shipping options including DHL, TNT, UPS and others
Company Profile
With 230 workers, 8000 m² dust-free workshops, 10,000 sets of molds, and 10 specialized workshops including grinding powder, pressing, sintering, and processing facilities. Monthly production capacity of 50 tons with registered "Ri Xin" brand in Europe, ISO and CE certifications. Strategically located one hour from Shanghai port.
Product Range
Cold heading dies, wire drawing dies, strips and plates, saw tips, brazed tips, disc cutters, round rods, rock drilling bits and buttons, milling tools, plus customized solutions.
Why Choose Zhuzhou Mingri
- Alibaba Trade Assurance protection with 100% payment refund if contract terms are not met
- 21 years of specialized manufacturing experience in carbide tooling
- Global customer base with positive feedback and reviews from multiple countries
