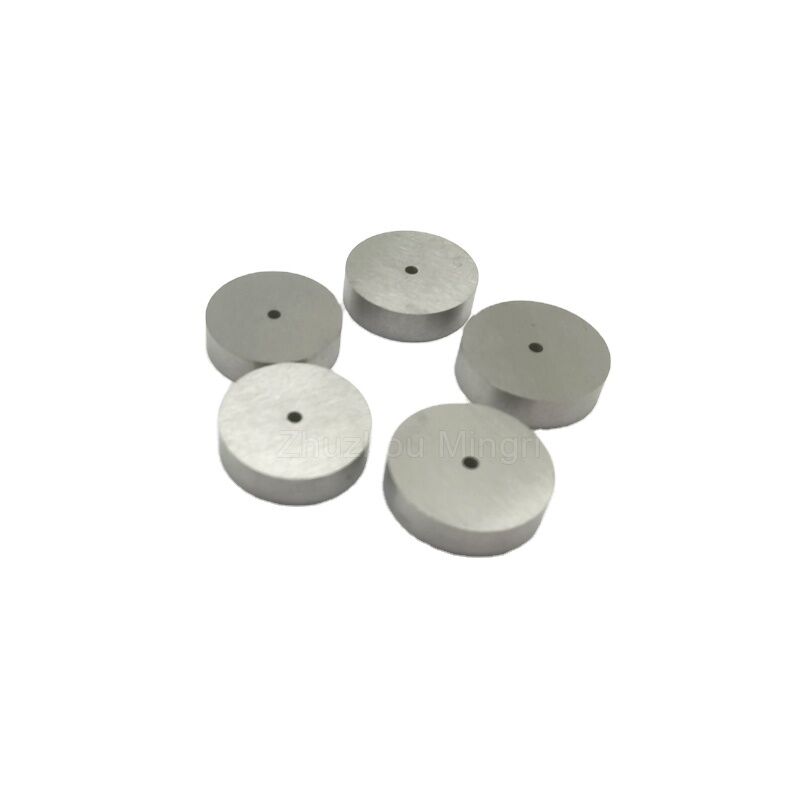

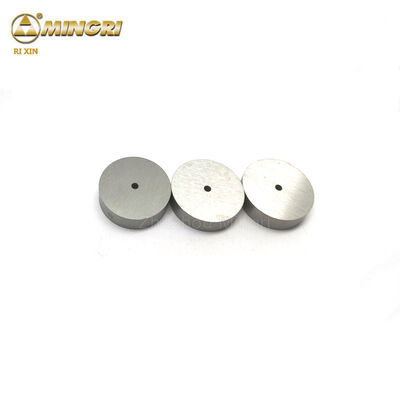

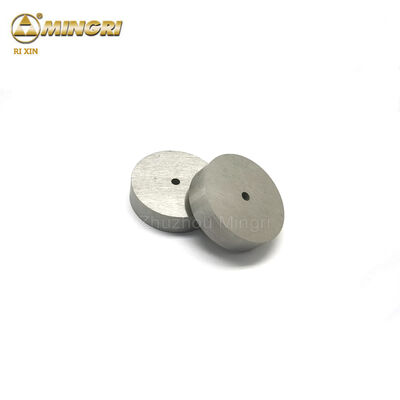

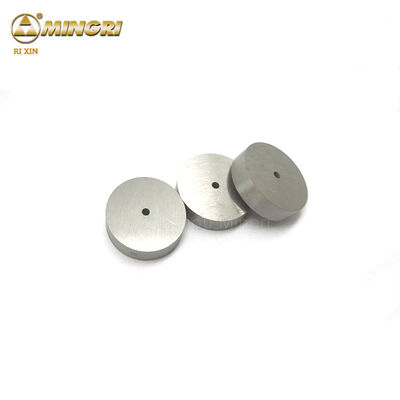

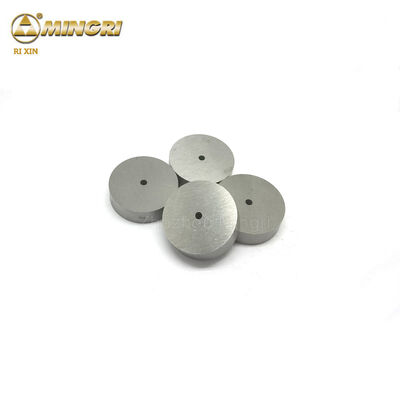

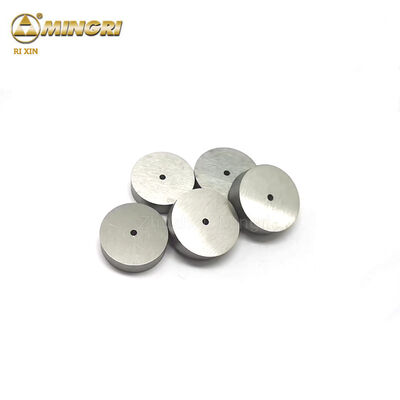

High Precision OEM Tungsten Carbide Cold Heading Die Screw Forming Mould ISO9001:2008 Certified
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | RIXIN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $32-50 |
|
Detail Information |
|||
| Material: | 100% Virgin Tungsten Carbide | Color: | Silvery Grey |
|---|---|---|---|
| Surface Treatment: | Grinding, Sand Blasting | Density: | 14.4 G/cm3 (YG11) |
| Hardness: | 88.5 HRA (YG11) | Tensile Strength: | 2420 Mpa (YG11) |
| Die Blank Diameter: | 10-16 Mm | Die Blank Length: | 15-40 Mm |
| Tolerance: | +/-0.05 | Production Capacity: | 50 Tons/month |
| Workshop Area: | 8000 M2 | Mould Sets: | 10000 Sets |
| Sintering Furnaces: | 10 Sets | HIP Furnaces: | 2 Sets |
| Customization Support: | OEM, ODM | ||
| Highlight: | High Precision Tungsten Carbide Die,OEM Support Cold Heading Die,ISO9001:2008 Certified Screw Forming Mould |
||
Product Description
High Precision OEM Tungsten Carbide Screw Forming Mould Cold Heading Die
RIXIN Brand ISO9001:2008 Certified precision tool parts for industrial manufacturing applications.
Manufacturing Excellence
- Zhuzhou Mingri maintains the richest inventory of carbide punch dies from Zhuzhou manufacturers
- 19 years of stable customer relationships and industry experience
- State-of-the-art tooling facilities and production capabilities
- Largest production capacity with fastest delivery times
- Comprehensive testing equipment for all specifications
- Reliable after-sales service and technical support
Material Specifications
| Grade | Density g/cm³ | Hardness HRA | T.R.S MPa | Performance & Application |
|---|---|---|---|---|
| YG11 | 14.4 | 88.5 | 2420 | Forming or stamping dies for metal powders and nonmetal powders |
| YG15 | 14.0 | 87 | 3000 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and stamping tools under large stress |
| YG20 | 13.5 | 85.5 | 2800 | Manufacturing punching dies for watch parts, leaf spring of musical instrument, battery jars, small sized steel balls, screws, screw caps, etc. |
| YG16C | 13.9 | 85 | 2750 | Suitable for impact-resistant forging dies |
| YG18C | 13.7 | 84 | 2800 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers |
| YG20C | 13.5 | 83 | 2850 | Suitable for wear resistant or impact resistant dies |
| YG22C | 13.3 | 82 | 2900 | Suitable for nut forming dies and high impact-resistant dies |
| YG25C | 13.1 | 81.5 | 2950 | Suitable for stainless screw dies and semifinishing rollers |
Other grades and sizes available according to customer requirements.
Standard Die Blank Sizes
| TYPE | d | D | L |
|---|---|---|---|
| BD0131015 | 10 | 1.3 | 15 |
| BD0171020 | 10 | 1.7 | 20 |
| BD0171230 | 12 | 1.7 | 30 |
| BD0211230 | 12 | 2.1 | 30 |
| BD0211630 | 16 | 2.1 | 30 |
| BD0241015 | 10 | 2.4 | 15 |
| BD0241225 | 12 | 2.4 | 25 |
| BD0291425 | 14 | 2.9 | 35 |
| BD0291640 | 16 | 2.9 | 40 |
| … | … | … | … |
Product Applications
- Carbide precision tooling and machine components
- Fastener industry applications
- Bearing industry components
- Forming tools and dies
- Wear-resistant parts and components
- Standard, impact, and trapped extrusion applications
- Segmented carbide wafer assemblies
- Segmented carbide die inserts and assemblies
Production Process
- RTP powder preparation using wet-grinding machines
- Trial pressing and sintering with comprehensive quality checks
- Bulk production with semi-finished inspection
- Sintering process with HIP (Hot Isostatic Pressing) technology
- Cleaning/tumbling for enhanced appearance
- Precision grinding to tolerance of ±0.05mm
Packaging & Shipping
- Paper wrapping for protection
- Inner carton box packaging
- Outer carton with foam padding
- Secure packaging tape sealing
- Multiple shipping options available (DHL, TNT, UPS, etc.)
Company Profile
Zhuzhou Mingri employs 230 workers in an 8000 m² non-dust workshop with 10,000 sets of molds. Monthly production capacity reaches 50 tons. The RIXIN brand is registered in Europe, with ISO and CE certifications. Strategic location provides one-hour access to Shanghai port, ensuring superior quality and competitive pricing for global customers.
Product Range
Our comprehensive product line includes cold heading dies, wire drawing dies, strips and plates, saw tips, brazed tips, disc cutters, round rods, rock drilling bits and buttons, milling tools, and custom solutions tailored to specific requirements.
Why Choose RIXIN
- Alibaba Trade Assurance protection for buyer benefits
- 21 years of specialized manufacturing experience
- Global customer base with positive feedback and reviews
