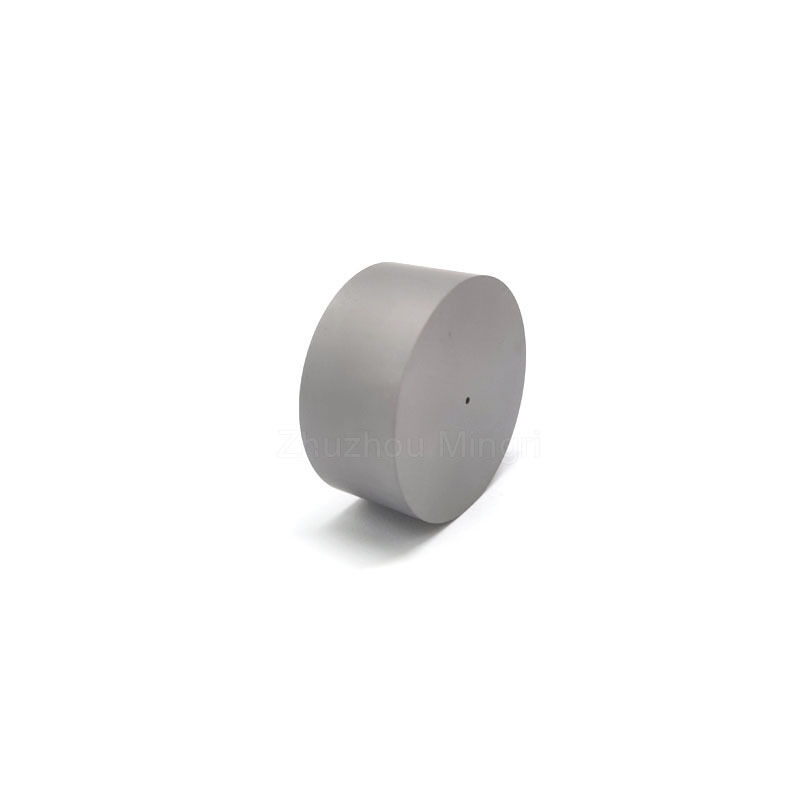

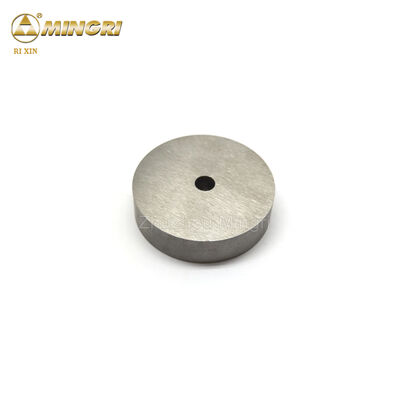

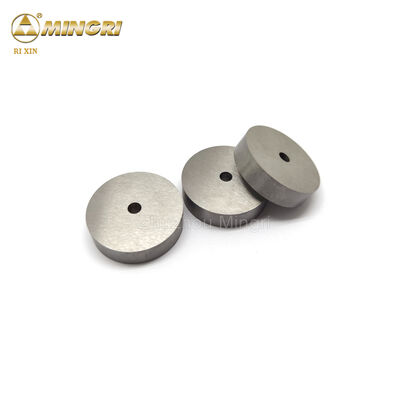

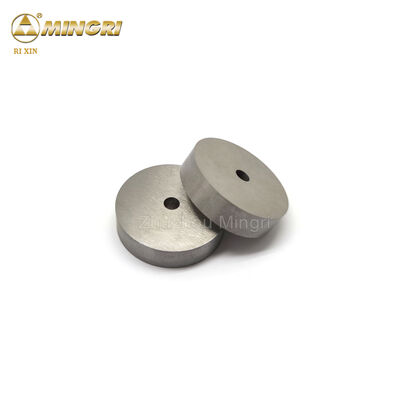

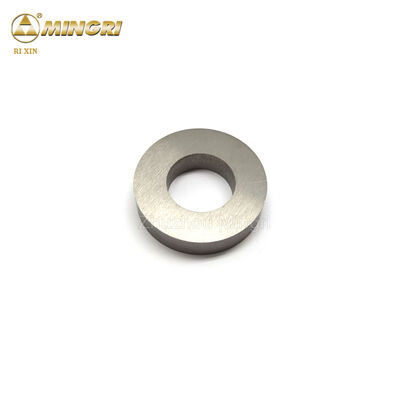

OEM Customizable Hip Sintered 100% Virgin Tungsten Carbide Die and Carbide Heading Die Blanks
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | RIXIN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $71-72.50 |
|
Detail Information |
|||
| Material: | 100% Virgin Tungsten Carbide | Density: | 14.4 G/cm3 (YG11) |
|---|---|---|---|
| Hardness: | 88.5 HRA (YG11) | Tensile Strength: | 2420 Mpa (YG11) |
| Die Blank Diameter: | 10-16 Mm | Die Blank Length: | 15-40 Mm |
| Surface Finish: | Sand Blasting | Tolerance: | +/-0.05 Mm |
| Production Capacity: | 50 Tons/month | Sintering Method: | HIP (Hot Isostatic Pressing) |
| Density Range: | 13.1-14.4 G/cm3 | Hardness Range: | 81.5-88.5 HRA |
| Tensile Strength Range: | 2420-3000 Mpa | Color: | Silvery Grey |
| Customizable Sizes: | As Per Requirement | ||
| Highlight: | OEM Customizable Tungsten Carbide Die,Hip Sintered Carbide Heading Die,100% Virgin Tungsten Carbide Die |
||
Product Description
OEM Customizable Tungsten Carbide Heading Die Blanks
High-performance tungsten carbide hip sintered cemented carbide heading die blanks for industrial tooling applications.
Manufacturing Excellence
Zhuzhou Mingri maintains the richest inventory of carbide forging dies from Zhuzhou manufacturers
21 years of stable customer relationships and industry experience
Advanced tooling facilities and manufacturing capabilities
Largest production capacity with fastest delivery times
Comprehensive testing equipment for all specifications
Reliable after-sales service and technical support
Material Grades & Specifications
| Grade | Density g/cm³ | Hardness HRA | T.R.S MPa | Performance & Application |
|---|---|---|---|---|
| YG11 | 14.4 | 88.5 | 2420 | Forming or stamping dies for metal powders and nonmetal powders |
| YG15 | 14.0 | 87 | 3000 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and stamping tools under large stress |
| YG20 | 13.5 | 85.5 | 2800 | Manufacturing punching dies for watch parts, leaf spring of musical instrument, battery jars, small sized steel balls, screws, screw caps, etc |
| YG16C | 13.9 | 85 | 2750 | Suitable for impact-resistant forging dies |
| YG18C | 13.7 | 84 | 2800 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers |
| YG20C | 13.5 | 83 | 2850 | Suitable for wear resistant or impact resistant dies |
| YG22C | 13.3 | 82 | 2900 | Suitable for nut forming dies and high impact-resistant dies |
| YG25C | 13.1 | 81.5 | 2950 | Suitable for stainless screw dies and semifinishing rollers |
Other grades and sizes available according to customer requirements.
Standard Die Blank Sizes
| Type | d (mm) | D (mm) | L (mm) |
|---|---|---|---|
| BD0131015 | 10 | 1.3 | 15 |
| BD0171020 | 10 | 1.7 | 20 |
| BD0171230 | 12 | 1.7 | 30 |
| BD0211230 | 12 | 2.1 | 30 |
| BD0211630 | 16 | 2.1 | 30 |
| BD0241015 | 10 | 2.4 | 15 |
| BD0241225 | 12 | 2.4 | 25 |
| BD0291425 | 14 | 2.9 | 35 |
| BD0291640 | 16 | 2.9 | 40 |
| … | … | … | … |
Industrial Applications
Carbide precision tooling and machine components
Carbide heading dies for fastener industries
Carbide heading dies for bearing industries
Forming tools for metalworking applications
Wear-resistant parts for industrial machinery
Standard, impact, and trapped extrusion applications
Segmented carbide wafer assemblies in various forms
Segmented carbide die inserts and assemblies
Production Process
Order confirmation initiates RTP powder preparation using wet-grinding machines
Trial pressing and sintering with every mold to verify specifications
Quality verification using micrometers, projectors, and inspection equipment
Bulk production with raw material pressing to shape blanks
Semi-finished inspection before sintering process
HIP sintering with 10 vacuum sintering furnaces and 2 HIP units
Cleaning/tumbling for enhanced appearance
Precision grinding available to tolerance of ±0.05mm
Packaging & Shipping
Individual paper wrapping to prevent damage
Secure inner carton packaging
Outer carton with foam plastic cushioning
Reinforced packaging with protective tape
Flexible shipping options including DHL, TNT, UPS, and others
Company Overview
With 230 skilled workers, 8000 m² dust-free workshops, and 10,000 mold sets, we maintain a production capacity of 50 tons per month. Our "Ri Xin" brand is registered in Europe for 9 years, ISO certified, and located one hour from Shanghai port, ensuring superior quality and competitive pricing for global customers.
Product Range
Our comprehensive product line includes cold heading dies, wire drawing dies, strips and plates, saw tips, brazed tips, disc cutters, round rods, rock drilling bits and buttons, milling tools, and custom solutions tailored to specific requirements.
Quality Assurance
Alibaba Trade Assurance protection for buyer benefits
21 years of specialized manufacturing experience in carbide forging dies
Continuous research and development across diverse types and sizes
Global customer base with positive feedback and reviews from multiple countries
