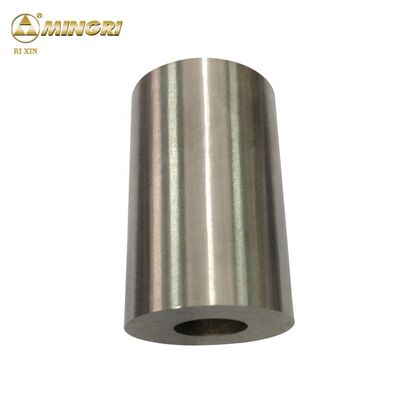

Mingri OEM Customizable Cemented Tungsten Carbide Die with Polished Surface for Grinding Applications
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | rixin |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | CN¥62.99 |
|
Detail Information |
|||
| Material: | WC+Cobalt | Grade: | G15, YG20, YG20C, YG22C, YG25C, GT55, ML40, ML100, ST7, VA90, C5 |
|---|---|---|---|
| TRS: | > 3000 N/mm3 | Hardness: | 85-92HRA |
| Surface Treatment: | Coated, Grinding, Polishing, Sand-blasted | Outer Diameter: | 10-100mm |
| Inner Diameter: | 2-30mm | Length: | 10-60mm |
| Density: | 13.1-14.4 G/cm3 | Bending Strength: | 2420-3100 MPα |
| Impact Resistance: | High | Wear Resistance: | Good |
| Power Source: | Electric | Engine Type: | Electric |
| Tolerance: | Blank, Semi-finished, Finished | ||
| Highlight: | Polished Surface Tungsten Carbide Die,Customizable OEM Carbide Pellet Mold,Grinding Applications Cemented Carbide Die |
||
Product Description

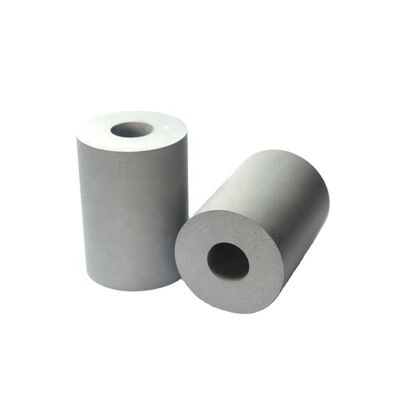

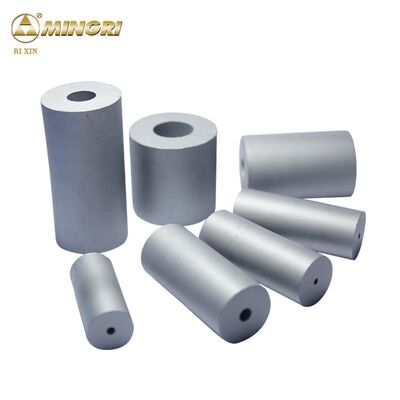

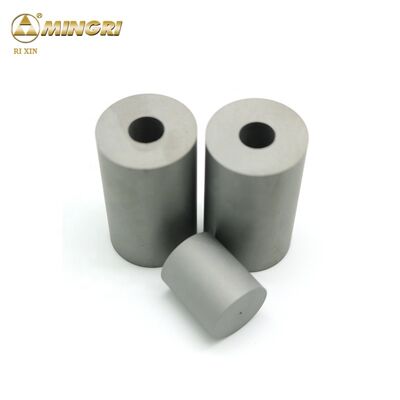

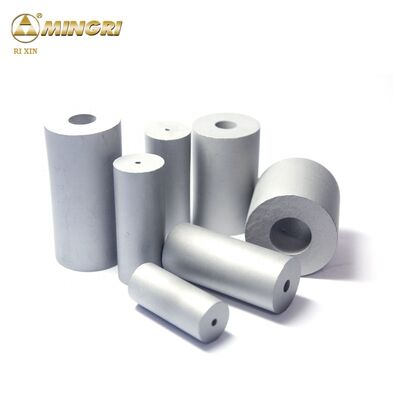

Mingri Cemented Tungsten Carbide Round Pellet Die Mold
Premium cemented tungsten carbide round pellet die molds with polished surfaces, designed for demanding grinding applications and industrial manufacturing processes.
| Item | Tungsten Carbide Die |
| Grade | YG6, YG8, YG11, YG12, YG15, YG20, YG20C, YG22C, YG25C, GT55, ML40, ML100, ST7, VA90, C5 |
| Sizes | Standard or Customized |
| Brand | Rixin |
| Country of Origin | Zhuzhou, China |
| Usage | Die casting mould, punch dies, wire drawing die, machine mold, progressive die, extrusion die, press mold, mould parts, trimming die, cold heading die, forging mold, cold forming die |
- Tungsten carbide die blanks are widely used for making finished die casting mould, punch dies, wire drawing die, machine mold, progressive die, extrusion die, press mold, mould parts, trimming die, cold heading die, forging mold, cold forming die
- Mingri maintains extensive stock of available moulds for various carbide die sizes, providing significant cost savings
- Offers the widest and most stable range of carbide die grades with superior cost performance compared to Kennametal and Cbcarbide
Grade Specifications and Applications
| Grade | Density (g/cm³) | T.R.S (MPa) | Hardness (HRA) | Properties & Applications | Approx Grades in China |
|---|---|---|---|---|---|
| A | 13.5 | 3000 | 83.5 | Good wear resistance and bending strength. Preferred for nut forming dies and high impact-resistant dies. | -- |
| YM11 | 14.4 | 2420 | 88.5 | Forming or stamping dies for metal powders and non-metal powders. | YG11 |
| YM15 | 14.0 | 2500 | 87.5 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and forging tools under large stress. | YG15 |
| YM20 | 13.5 | 2800 | 85.5 | Suitable for manufacturing punching dies for watch parts, leaf spring of musical instruments, battery jars, small sized steel balls, screws, screw caps | YG20 |
| ML32 | 13.9 | 2750 | 85.5 | Suitable for impact-resistant forging dies. | YG16C |
| ML36 | 13.7 | 2800 | 84.5 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers. | YG18C |
| ML40 | 13.5 | 2850 | 83.5 | Suitable for wear resistant or impact resistant dies. | YG20C ZL40.2 |
| ML50 | 13.3 | 2900 | 83.0 | Suitable for nut forming dies and high impact-resistant dies. | YG22C ZL40.5 |
| ML60 | 13.1 | 2950 | 82.5 | Suitable for stainless screw dies and semifinishing rollers. | YG25C ZL40B |
| ML80 | 13.1 | 3050 | 83.4 | Suitable for screw cap forming dies with high strength (highest impact-resistant forging dies). | YG25C GT55 |
| ML100 | 13.1 | 3100 | 84 | Suitable for screw cap forming dies with high strength (highest impact-resistant forging dies). | GT55 plus |
Additional grades of cemented carbide blanks for cold-forging dies available upon customer request.
Standard Dimensions and Specifications
D: 10-100mm
d: 2-30mm
L: 10-60mm
d: 2-30mm
L: 10-60mm
Custom sizes available according to customer requirements.
Packaging and Delivery Information
| Packing | Paper + paper boxes + exported wooden cartons or paper cases. Custom packaging available per buyer requirements. |
| Shipping | UPS, TNT, EMS, Fedex, DHL, or as requested |
| Delivery | 7-10 days after confirming all details |
Product Range and Capabilities
Specialized manufacturer of tungsten carbide profiles and dies, cutting tools, mining tools, wear parts, and high-performance non-standard customized tool parts for industrial applications.
Company Overview
Zhuzhou Mingri Cemented Carbide Co., Ltd was established in 2001 with an investment of $10 million, covering 33,300 square meters with 160 staff members. We hold 35 patents in invention, utility model and design, and maintain ISO9001:2015 Quality Certification and GB/T 24001-2004/ISO 14001:2004 Environmental Certification. Our high-quality tungsten carbide products and technical services are exported to US, Europe, Japan, Taiwan, and South-east Asia, earning trust and support from domestic and international customers.
Manufacturing Facilities
Comprehensive workshops for powder mixing, pressing, sintering, finishing, surface treatment, and mould design, supported by physical and chemical laboratories for quality inspection. Hundreds of updated equipment ensure monthly production capacity of 50 tons with exceptional quality standards.
Quality Assurance Process
All products undergo strict ultrasonic inspection, with only defect-free items shipped. High density, superior wear resistance, and exceptional impact resistance ensure extended product lifetime.
