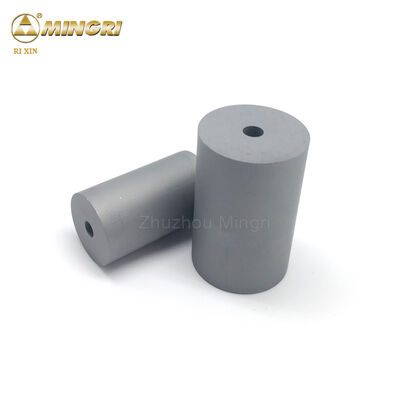

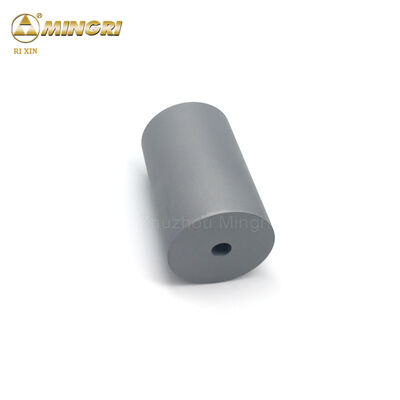

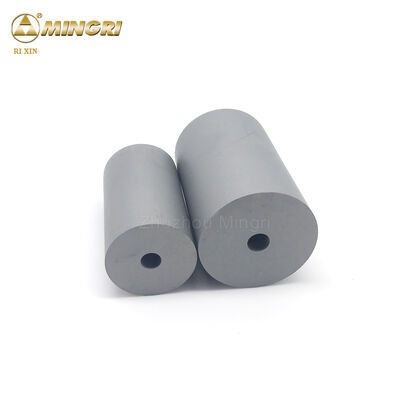

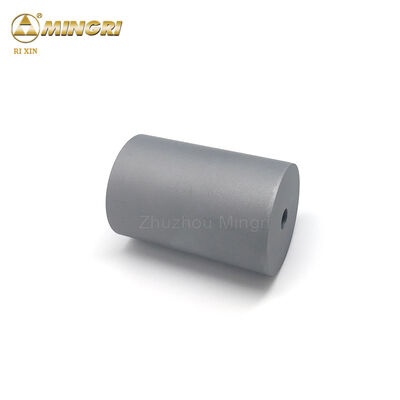

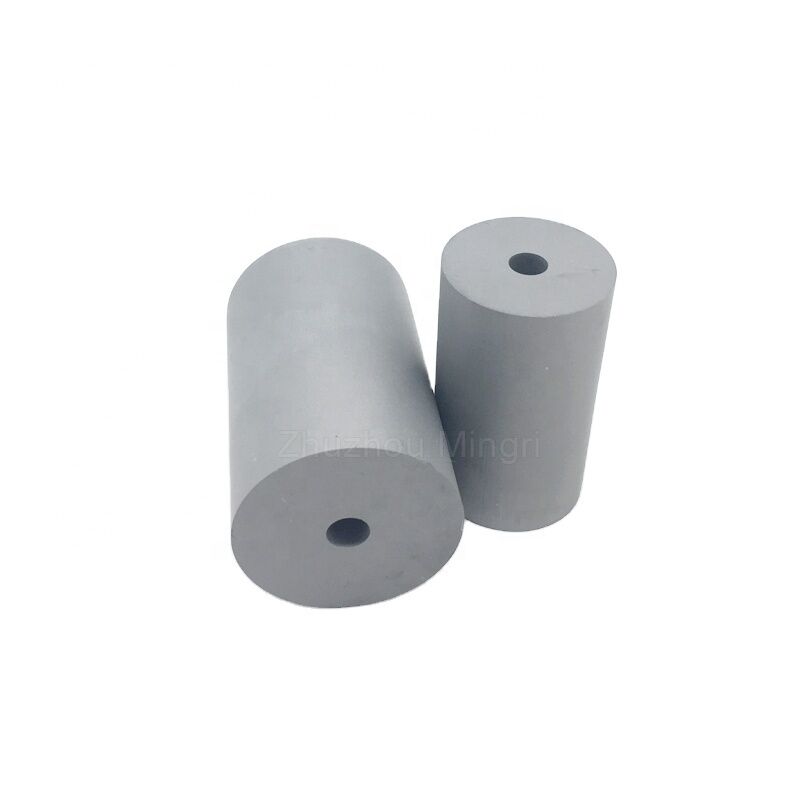

Zhuzhou 100% Virgin Tungsten Carbide Cold Heading Punch Forging Die for Fasteners with OEM Support
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | RIXIN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | CN¥34.99-503.85 |
|
Detail Information |
|||
| Material: | 100% Virgin Tungsten Carbide | Surface Treatment: | Grinding, Sand Blasting |
|---|---|---|---|
| Color: | Silvery Grey | Density: | 14.4 G/cm3 (YG11) |
| Hardness: | 88.5 HRA (YG11) | Tensile Strength: | 2420 Mpa (YG11) |
| Grade Options: | YG11, YG15, YG20, YG16C, YG18C, YG20C, YG22C, YG25C | Dimensional Tolerance: | +/-0.05 |
| Production Capacity: | 50 Tons/month | Sintering Process: | Vacuum Sintering, HIP |
| Workshop Area: | 8000 M2 | Mould Stock: | 10000 Sets |
| Powder Preparation: | Wet-grinding Machine | Sintering Furnaces: | 10 Sets |
| HIP Units: | 2 Sets | ||
| Highlight: | 100% Virgin Tungsten Carbide Die,Fastener Application Cold Heading Punch,OEM Support Forging Die |
||
Product Description
Product Overview
Zhuzhou tungsten cemented carbide cold heading punch forging die for fastener manufacturing applications.
Manufacturing Advantages
- Largest inventory of Zhuzhou carbide punch dies from direct manufacturer
- 19 years of stable customer relationships and industry experience
- Most advanced tooling facilities and production capabilities
- Largest production capacity with fastest delivery times
- Comprehensive testing equipment for all specifications
- Reliable after-sales service and technical support
Technical Specifications
| Grade | Density g/cm³ | Hardness HRA | T.R.S MPa | Performance & Application |
|---|---|---|---|---|
| YG11 | 14.4 | 88.5 | 2420 | Forming or stamping dies for metal powders and nonmetal powders |
| YG15 | 14.0 | 87 | 3000 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and stamping tools under large stress |
| YG20 | 13.5 | 85.5 | 2800 | Suitable for manufacturing punching dies for watch parts, leaf spring of musical instrument, battery jars, small sized steel balls, screws, screw caps, etc |
| YG16C | 13.9 | 85 | 2750 | Suitable for impact-resistant forging dies |
| YG18C | 13.7 | 84 | 2800 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers |
| YG20C | 13.5 | 83 | 2850 | Suitable for wear resistant or impact resistant dies |
| YG22C | 13.3 | 82 | 2900 | Suitable for nut forming dies and high impact-resistant dies |
| YG25C | 13.1 | 81.5 | 2950 | Suitable for stainless screw dies and semifinishing rollers |
| Other grades and sizes can be offered as per customers' requirement | ||||
Product Applications
- Carbide precision tooling & machine components
- Fastener industry punch dies
- Bearing industry applications
- Forming tools and wear parts
- Standard, impact, and trapped extrusion applications
- Segmented carbide wafer assemblies
- Segmented carbide die inserts and assemblies
Production Process
- RTP powder preparation using wet-grinding machines according to customer specifications
- Trial pressing and sintering with comprehensive quality checks using micrometers and projectors
- Bulk production with semi-finished inspection at every stage
- Vacuum sintering and HIP processing with 10 sintering furnaces and 2 HIP units
- Cleaning/tumbling for improved appearance and grinding to +/-0.05 tolerance
Packaging & Shipping
- Paper wrapping to prevent breakage during transit
- Inner carton box packaging for individual protection
- Outer carton with foamed plastic filling for shock absorption
- Secure packaging tape sealing
- Multiple shipping options available including DHL, TNT, UPS
Company Profile
With 230 skilled workers, 8000 m² dust-free workshops, and 18 years of manufacturing experience, we maintain 10,000 sets of molds across multiple specialized workshops. Our monthly production capacity reaches 50 tons, supported by ISO and CE certifications. The "Ri Xin" brand is registered in Europe, and our strategic location provides easy access to Shanghai port, ensuring superior quality and competitive pricing for global customers.
Our product range includes cold heading dies, wire drawing dies, strips and plates, saw tips, brazed tips, disc cutters, round rods, rock drilling bits and buttons, milling tools, and custom solutions tailored to specific requirements.
