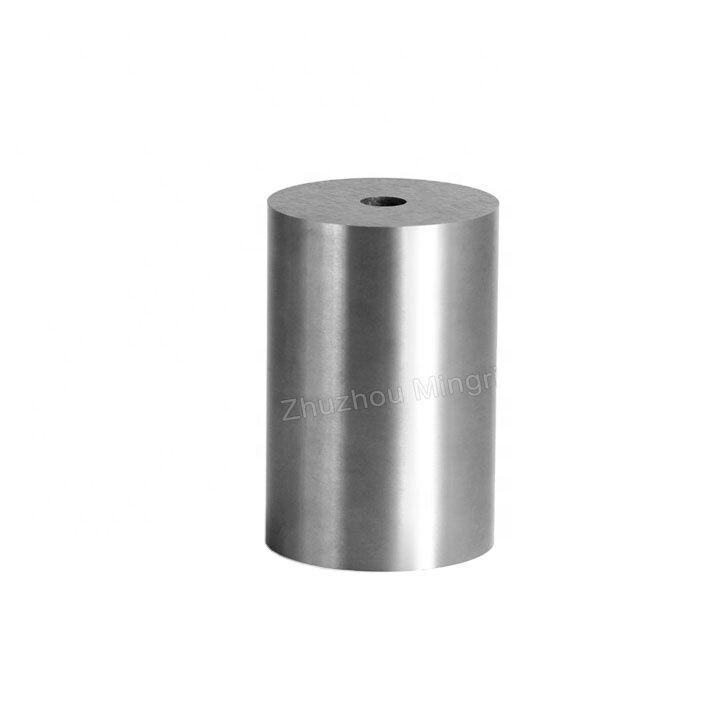

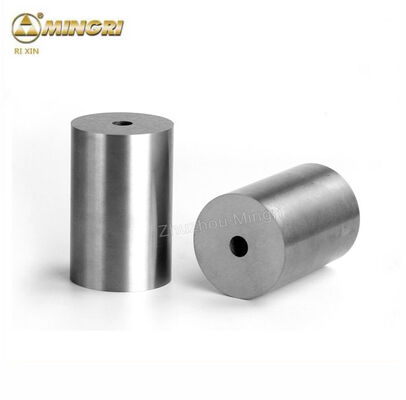

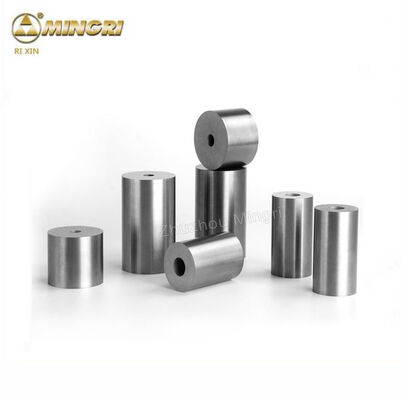

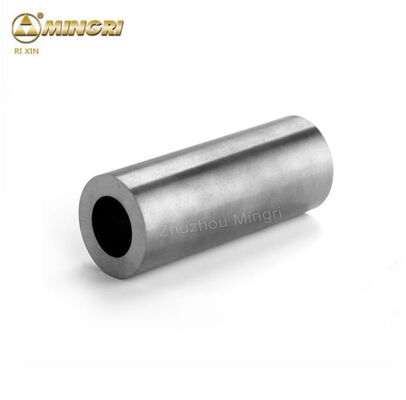

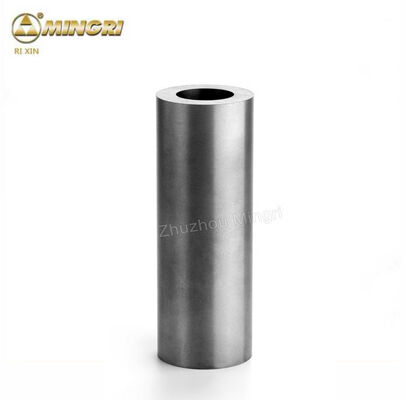

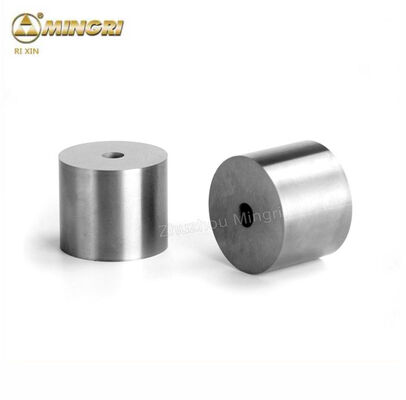

Customizable OEM Wear Resistant Tungsten Carbide Die with 100% Virgin Tungsten Carbide Nibs
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | RIXIN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | CN¥223.94-349.90 |
|
Detail Information |
|||
| Material: | 100% Virgin Tungsten Carbide | Color: | Silvery Grey |
|---|---|---|---|
| Surface Treatment: | Grinding, Sand Blasting | Density YG11: | 14.4 G/cm3 |
| Hardness YG11: | 88.5 HRA | T.R.S YG11: | 2420 Mpa |
| Density YG15: | 14.0 G/cm3 | Hardness YG15: | 87 HRA |
| T.R.S YG15: | 3000 Mpa | Density YG20: | 13.5 G/cm3 |
| Hardness YG20: | 85.5 HRA | T.R.S YG20: | 2800 Mpa |
| Density YG16C: | 13.9 G/cm3 | Hardness YG16C: | 85 HRA |
| T.R.S YG16C: | 2750 Mpa | ||
| Highlight: | Customizable OEM Tungsten Carbide Die,Wear Resistant Carbide Nibs,100% Virgin Tungsten Carbide Nibs |
||
Product Description
Customizable OEM Wearable Fastener Mould Sintered Tungsten Cemented Carbide Pellets
High-performance tungsten carbide pellets designed for demanding industrial applications including nut/bolt forging, fastener manufacturing, and precision tooling.
Company Advantages
- Zhuzhou Mingri maintains the richest inventory of tungsten carbide pellet molds from Zhuzhou manufacturers
- 21 years of stable relationships with global customers
- State-of-the-art tooling facilities and equipment
- Largest production capacity with fastest delivery times
- Comprehensive testing capabilities for all specifications
- Reliable after-sales service and technical support
Technical Specifications
| Grade | Density g/cm³ | Hardness HRA | T.R.S MPa | Performance & Application |
|---|---|---|---|---|
| YG11 | 14.4 | 88.5 | 2420 | Forming or stamping dies for metal powders and nonmetal powders |
| YG15 | 14.0 | 87 | 3000 | Drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and stamping tools under large stress |
| YG20 | 13.5 | 85.5 | 2800 | Manufacturing punching dies for watch parts, leaf spring of musical instrument, battery jars, small sized steel balls, screws, screw caps |
| YG16C | 13.9 | 85 | 2750 | Impact-resistant forging dies |
| YG18C | 13.7 | 84 | 2800 | Impact-resistant forging dies, hot-forging dies and finishing rollers |
| YG20C | 13.5 | 83 | 2850 | Wear resistant or impact resistant dies |
| YG22C | 13.3 | 82 | 2900 | Nut forming dies and high impact-resistant dies |
| YG25C | 13.1 | 81.5 | 2950 | Stainless screw dies and semi-finishing rollers |
Other grades and sizes available according to customer requirements
Product Applications
- Carbide Precision Tooling & Machine Components
- Tungsten carbide pellets for Fastener Industries
- Tungsten carbide pellets for Bearing Industries
- Forming Tools and Dies
- Wear Parts and Components
- Standard, impact, and trapped extrusion applications
- Segmented Carbide Wafer Assemblies
- Segmented Carbide die inserts and assemblies
Production Process
- Order confirmation initiates RTP powder preparation using wet-grinding machines
- Trial pressing and sintering with comprehensive quality checks using micrometers and projectors
- Bulk production with raw material pressing and semi-finished inspection
- Sintering process with HIP treatment and final product inspection
- Cleaning/tumbling for enhanced appearance
- Precision grinding to tolerances of +/-0.05
Packaging & Shipping
- Individual paper wrapping to prevent damage
- Secure inner carton packaging
- Outer carton with foam cushioning
- Reinforced packaging tape sealing
- Flexible shipping options including DHL, TNT, UPS
Company Profile
With 230 skilled workers, 8000 m² dust-free workshops, and 21 years of manufacturing experience, we maintain 10,000 sets of molds across multiple specialized workshops including grinding powder, pressing, sintering, processing, and mold production. Our monthly production capacity reaches 50 tons, supported by the well-known "Ri Xin" brand registered in Europe, ISO and CE certifications, and strategic location one hour from Shanghai port.
Our product range includes cold heading dies, wire drawing dies, strips and plates, saw tips, brazed tips, disc cutters, round rods, rock drilling bits and buttons, milling tools, and custom solutions tailored to customer requirements.
Why Choose Zhuzhou Mingri
- Alibaba Trade Assurance protection with 100% payment refund if contract terms aren't met
- 21 years of specialized experience in tungsten carbide pellet manufacturing
- Continuous research and development for diverse types and sizes
- Global customer base with positive feedback and reviews
