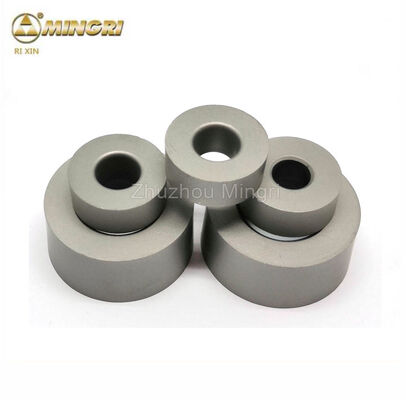

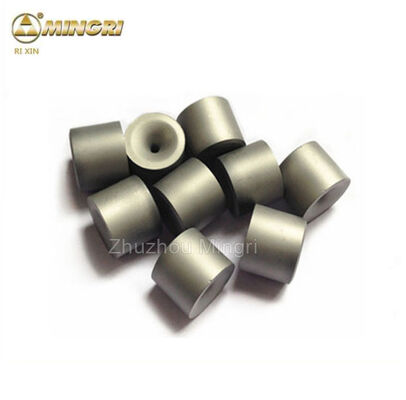

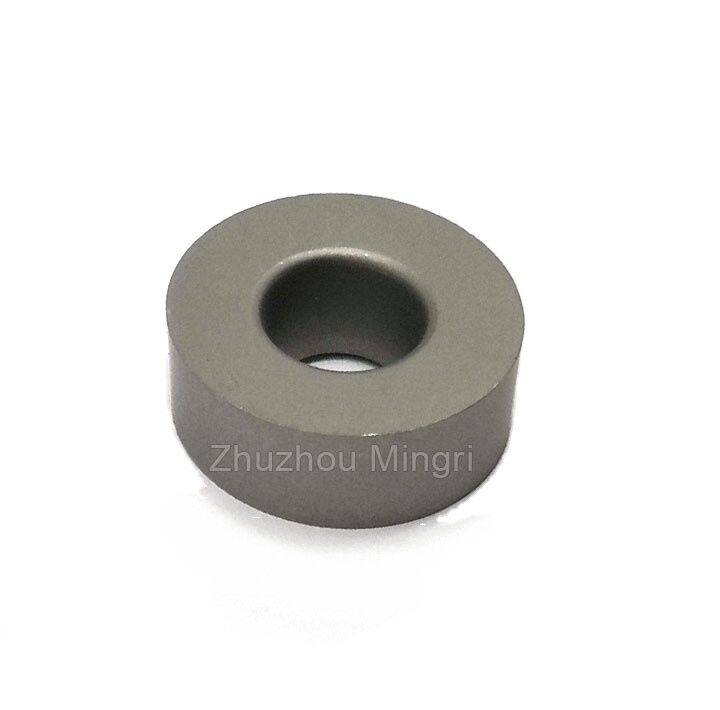

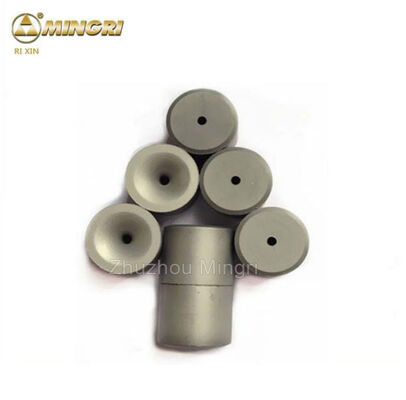

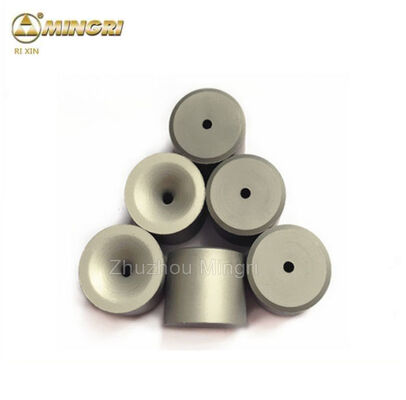

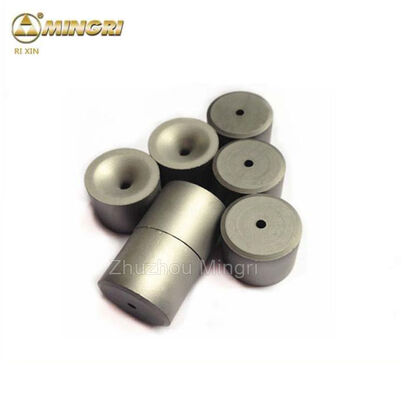

YG8 Grade Tungsten Carbide Wire Drawing Die Customizable for Copper Wire Drawing
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | RIXIN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | CN¥223.94-370.89 |
|
Detail Information |
|||
| Material: | 100% Virgin Tungsten Carbide | Grade: | YG8 |
|---|---|---|---|
| Size: | 30*20*75 Mm | Density: | 14.7 G/cm3 |
| Hardness: | 89.8 HRA | Tensile Strength: | 2800 MPa |
| Wire Diameter Range: | 0.127 - 76.2 Mm | Surface Treatment: | Sand Blasting |
| Shape: | Customizable | Performance: | Good Wear Resistance And Strength |
| Application Stress: | High Stress | Max Bar Diameter: | OD50mm |
| Max Tube Diameter: | OD35mm | RA Value: | 9.6 - 13.5 |
| A Value: | 6 - 18 | ||
| Highlight: | YG8 Grade Tungsten Carbide Die,Customizable Wire Drawing Die,Copper Wire Drawing Hard Metal Die |
||
Product Description
Tungsten Carbide Hard Metal YG8 Wire Drawing Die
Tungsten carbide (WC/TC), also known as cemented carbide, hard metal or widia, is a metal matrix composite where tungsten carbide particles serve as the aggregate and metallic cobalt acts as the matrix. This non-oxidizing ceramic maintains exceptional hardness comparable to corundum or sapphire while withstanding high temperatures.
Material Grades & Specifications
| Grade | Density g/cm³ | Hardness HRA | T.R.S MPa | Performance & Application | ISO |
|---|---|---|---|---|---|
| YG6X | 14.85 | 91.5 | 2300 | Good wear resistance, suitable for drawing steel wires, nonferrous metal wires and alloy wires or bars less than OD6mm under low stress | K10 |
| YG6 | 14.9 | 90.5 | 2400 | Good wear resistance, suitable for drawing steel, nonferrous metal and alloy wires or bars less than OD20mm under low stress, also for drawing tubes less than OD10mm | |
| YG8X | 14.65 | 91.5 | 2900 | Good wear resistance and strength, suitable for drawing all kinds of wires and bars | K20 |
| YG8 | 14.7 | 89.8 | 2800 | Good wear resistance and strength, suitable for drawing steel, nonferrous metal and alloy bars less than OD50mm under high stress, also for drawing tubes less than OD35mm | |
| YG15 | 14 | 87 | 3000 | Suitable for drawing steel bars and tubes under very high stress | K40 |
Other grades may be offered according to customer requirements.
Hard metal drawing dies are available in a wide range of sizes from 0.127 - 76.2 mm (.005 - 3.000") or larger upon request. We also produce custom non-standard hard metal drawing dies according to customer specifications.
Product Applications
Hard metal drawing dies are extensively used in various wire manufacturing processes including:
- Wire drawing (round & shaped)
- Bunching and stranding operations
- Guiding applications
- Split die configurations
- Manufacturing wire or rod products
- Short run applications for trials, testing, or small production lots
Production Process
- Order confirmation initiates RTP powder preparation using wet-grinding machines
- Trial pressing and sintering with each mold, followed by comprehensive quality checks using micrometers and projectors
- Bulk production with raw material pressing into shaped blanks and semi-finished inspection
- Sintering blanks to completion (HIP process) and final product inspection with 10 vacuum sintering furnaces and 2 HIP units ensuring optimal quality and production capacity
- Final processing including cleaning/tumbling for appearance and precision grinding according to customer tolerance requirements
Packaging & Shipping
Our comprehensive packaging process ensures your drawing dies arrive in perfect condition:
- Thorough cleaning before packaging
- Internal foam protection within boxes
- Export-standard strong carton or plywood cases tailored to your needs
Company Overview
Workforce: 230 skilled workers
Facility: 8000 m² dust-free workshop
Experience: 18 years in manufacturing
Production Capacity: 50 tons/month
Certifications: ISO, CE certified
Brand: "Ri Xin" registered in Europe for 6 years
Location: One hour from Shanghai port
Our product range includes cold heading dies, wire drawing dies, strips and plates, saw tips, brazed tips, disc cutters, round rods, rock drilling bits and buttons, milling tools, and custom solutions to meet specific customer requirements.
Why Choose Ri Xin
- Alibaba Trade Assurance ensures 100% payment protection if contract terms are not met
- 18 years of specialized manufacturing experience in hard metal drawing dies
- Continuous research and development for diverse types and sizes
- Global customer base with positive feedback and reviews from numerous countries
