Customizable Tungsten Carbide Die with Polished Surface for Grinding Application and OEM Support
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | rixin |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Material: | WC+Cobalt | Surface: | Grinding, Polishing, Sand-blasted |
|---|---|---|---|
| Grade: | G15, YG20, YG20C, YG22C, YG25C, GT55, ML40, ML100, ST7, VA90, C5 | TRS: | > 3000 N/mm3 |
| Hardness: | 85-92HRA | Density: | 13.5 G/cm3 |
| T.R.S: | 3000 MPα | Diameter (D): | 10-100mm |
| Diameter (d): | 2-30mm | Length (L): | 10-60mm |
| Wear Resistance: | Good | Impact Resistance: | Good |
| Bending Strength: | High | Density Range: | 13.1-14.4 G/cm3 |
| Hardness Range: | 82.5-88.5 HRA | ||
| Highlight: | Customizable Tungsten Carbide Die,Polished Surface Carbide Die,Grinding Application Tungsten Carbide Mould |
||
Product Description

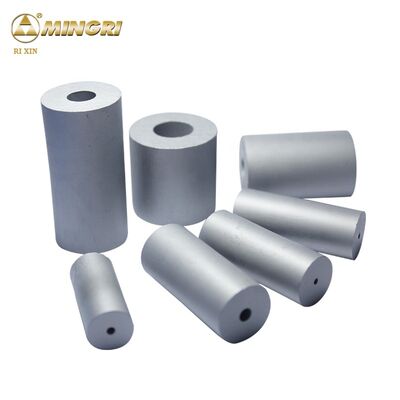

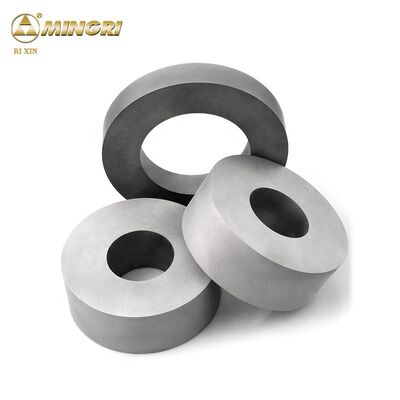

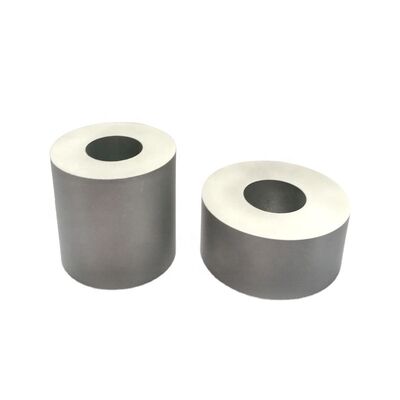

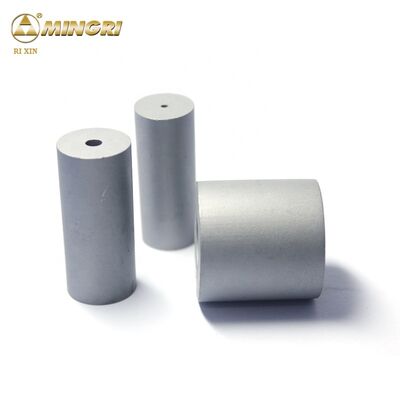

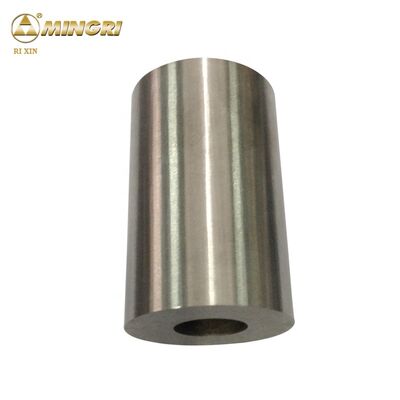

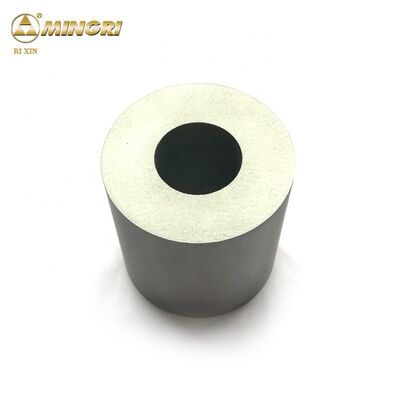

Customizable Tungsten Carbide Dies & Moulds
Premium tungsten carbide die blanks with polished surfaces for grinding applications and OEM support.
Product Specifications
| Item | Tungsten Carbide Die |
| Grade | YG6, YG8, YG11, YG12, YG15, YG20, YG20C, YG22C, YG25C, GT55, ML40, ML100, ST7, VA90, C5 |
| Sizes | Standard or Customized |
| Brand | Rixin |
| Country of Origin | Zhuzhou, China |
| Usage | Die casting mould, punch dies, wire drawing die, machine mold, progressive die, extrusion die, press mold, mould parts, trimming die, cold heading die, forging mold, cold forming die |
- Tungsten carbide die blanks are widely used for making finished die casting moulds, punch dies, wire drawing dies, machine molds, progressive dies, extrusion dies, press molds, mould parts, trimming dies, cold heading dies, forging molds, and cold forming dies
- Extensive inventory of available moulds for various carbide die sizes, saving significant costs for customers
- Wide range of stable carbide die grades with highest cost performance compared to leading competitors
Grade and Usage Specifications
YG25C Tungsten Carbide Cold Heading Dies Pellets Molds Nib Cores
| Grade | Density (g/cm³) | T.R.S (MPa) | Hardness (HRA) | Properties & Applications | Approx Grades in China |
|---|---|---|---|---|---|
| A | 13.5 | 3000 | 83.5 | Good wear resistance and bending strength. Preferred for nut forming dies and high impact-resistant dies. | -- |
| YM11 | 14.4 | 2420 | 88.5 | Forming or stamping dies for metal powders and non-metal powders. | YG11 |
| YM15 | 14.0 | 2500 | 87.5 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and forging tools under large stress. | YG15 |
| YM20 | 13.5 | 2800 | 85.5 | Suitable for manufacturing punching dies for watch parts, leaf spring of musical instruments, battery jars, small sized steel balls, screws, screw caps, etc. | YG20 |
| ML32 | 13.9 | 2750 | 85.5 | Suitable for impact-resistant forging dies. | YG16C |
| ML36 | 13.7 | 2800 | 84.5 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers. | YG18C |
| ML40 | 13.5 | 2850 | 83.5 | Suitable for wear resistant or impact resistant dies. | YG20C ZL40.2 |
| ML50 | 13.3 | 2900 | 83.0 | Suitable for nut forming dies and high impact-resistant dies. | YG22C ZL40.5 |
| ML60 | 13.1 | 2950 | 82.5 | Suitable for stainless screw dies and semifinishing rollers. | YG25C ZL40B |
| ML80 | 13.1 | 3050 | 83.4 | Suitable for screw cap forming dies with high strength (highest impact-resistant forging dies). | YG25C GT55 |
| ML100 | 13.1 | 3100 | 84 | Suitable for screw cap forming dies with high strength (highest impact-resistant forging dies). | GT55 plus |
Other grades of cemented carbide blanks for cold-forging dies may be offered by customers' requirements.
Size and Type Specifications
YG25C Tungsten Carbide Cold Heading Dies Pellets Molds Nib Cores
D: 10-100mm
d: 2-30mm
L: 10-60mm
Other sizes available according to customer requirements
Packaging and Delivery
YG25C Tungsten Carbide Cold Heading Dies Pellets Molds Nib Cores
| Packing | Paper + paper boxes + exported wooden cartons or paper cases. Custom packaging available per buyer requirements. |
| Shipping | UPS, TNT, EMS, Fedex, DHL, or as requested |
| Delivery | 7-10 days after confirming all details |
Main Products
YG25C Tungsten Carbide Cold Heading Dies Pellets Molds Nib Cores
Specialized in all kinds of tungsten carbide profiles and dies, cutting tools, mining tools, wear parts and non-standard customized tool parts with high industry performance.
Company Information
YG25C Tungsten Carbide Cold Heading Dies Pellets Molds Nib Cores
Zhuzhou Mingri Cemented Carbide Co., Ltd was established in 2001 with an investment of $10 million, covering 33,300 square meters with 160 staff members. We have obtained 35 patents in invention, utility model and design, and passed ISO9001:2015 Certification in quality and GB/T 24001-2004/ISO 14001:2004 Certification in environment. We offer high quality tungsten carbide products and technical services to clients worldwide. Our products are exported to US, Europe, Japan, Taiwan and South-east Asia, earning support and trust from customers globally.
Workshop Facilities
We operate comprehensive workshops including powder mixing, pressing, sintering, finishing, surface treatment, mould design, and physical/chemical labs for inspection. With hundreds of updated equipment, we maintain a monthly capacity of 50 tons while ensuring excellent quality standards.
Quality Assurance & Testing
All products undergo strict ultrasonic inspection, with only defect-free items shipped. High density, superior wear and impact resistance ensure extended product lifetime.
