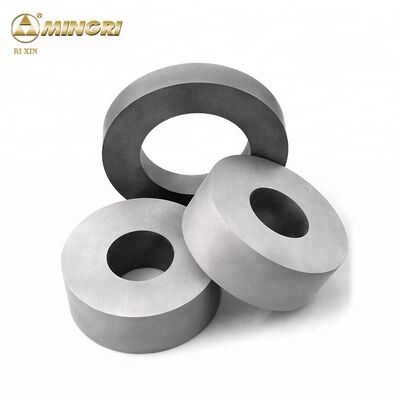

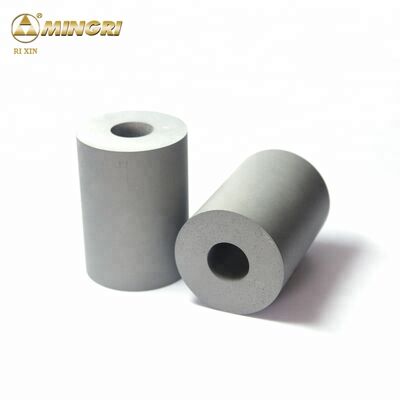

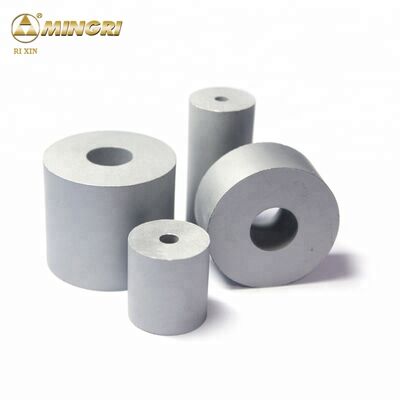

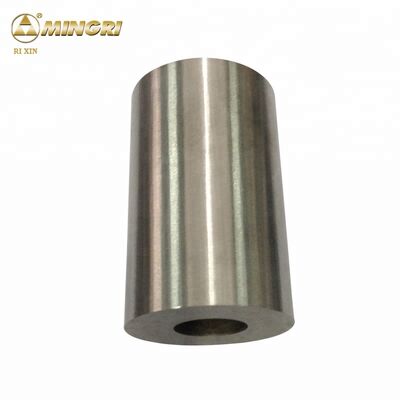

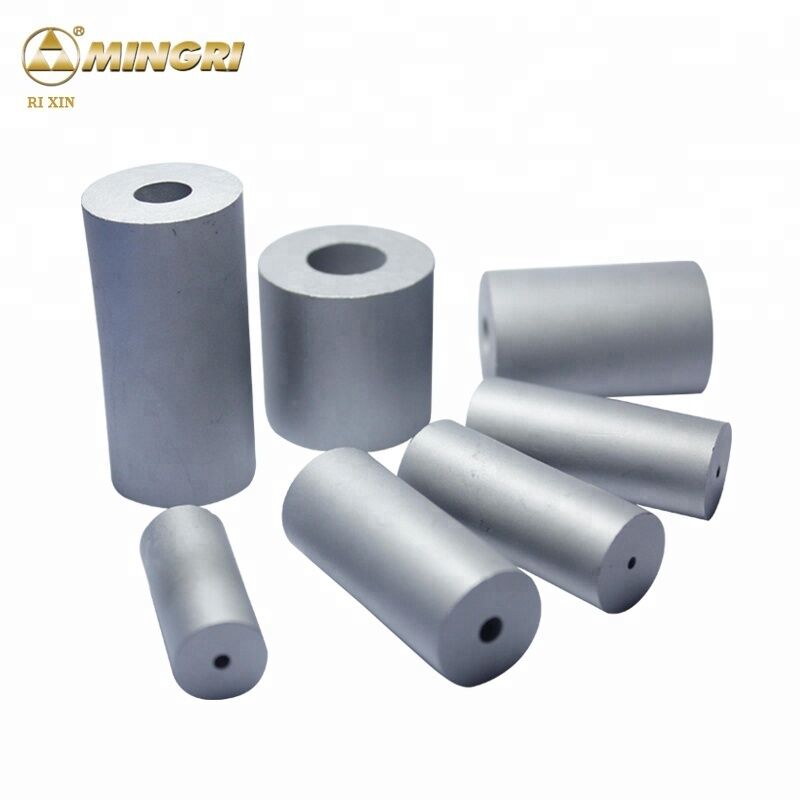

Tungsten Carbide Die and Carbide Punch Die with WC+Cobalt Material for Good Wear Resistance and High Bending Strength
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | RI XIN |
| Model Number: | tungsten carbide die-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Material: | WC+Cobalt | Surface Finish: | Grinding, Polishing, Sand-blasted |
|---|---|---|---|
| Grade Options: | G15, YG20, YG20C, YG22C, YG25C, GT55, ML40, ML100, ST7, VA90, C5 | TRS: | > 3000 N/mm3 |
| Hardness: | 85-92HRA | Outer Diameter: | 10-100mm |
| Inner Diameter: | 2-30mm | Length: | 10-60mm |
| Density Range: | 13.1-14.4 G/cm3 | Bending Strength: | 2420-3100 MPα |
| Impact Resistance: | High | Wear Resistance: | Good |
| Custom Sizes: | Accepted | Production Capacity: | 50 Tons/month |
| Quality Inspection: | Ultrasonic Testing | ||
| Highlight: | WC+Cobalt Material Tungsten Carbide Die,Good Wear Resistance Carbide Punch Die,High Bending Strength Carbide Mold |
||
Product Description
Tungsten Carbide Forging Dies & Molds
Professional tungsten carbide dies and molds for forging, heading, trimming, stamping, progressive extrusion, and punch applications.
Product Specifications
| Item | Tungsten Carbide Die |
| Grade | YG6, YG8, YG11, YG12, YG15, YG20, YG20C, YG22C, YG25C, GT55, ML40, ML100, ST7, VA90, C5 |
| Sizes | Standard or Customized |
| Brand | Rixin |
| Country of Origin | Zhuzhou, China |
| Usage | Die casting mould, punch dies, wire drawing die, machine mold, progressive die, extrusion die, press mold, mould parts, trimming die, cold heading die, forging mold, cold forming die |
- Tungsten carbide die blanks are widely used for manufacturing finished die casting moulds, punch dies, wire drawing dies, machine molds, progressive dies, extrusion dies, press molds, mould parts, trimming dies, cold heading dies, forging molds, and cold forming dies
- Extensive inventory of available moulds for various carbide die sizes, providing significant cost savings
- Comprehensive range of stable carbide die grades with superior cost performance compared to industry leaders
Grade Specifications & Applications
| Grade | Density (g/cm³) | T.R.S (MPa) | Hardness (HRA) | Properties & Applications | Approx Grades in China |
|---|---|---|---|---|---|
| A | 13.5 | 3000 | 83.5 | Good wear resistance and bending strength. Preferred for nut forming dies and high impact-resistant dies. | -- |
| YM11 | 14.4 | 2420 | 88.5 | Forming or stamping dies for metal powders and non-metal powders. | YG11 |
| YM15 | 14.0 | 2500 | 87.5 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and forging tools under large stress. | YG15 |
| YM20 | 13.5 | 2800 | 85.5 | Suitable for manufacturing punching dies for watch parts, leaf spring of musical instruments, battery jars, small sized steel balls, screws, screw caps, etc. | YG20 |
| ML32 | 13.9 | 2750 | 85.5 | Suitable for impact-resistant forging dies. | YG16C |
| ML36 | 13.7 | 2800 | 84.5 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers. | YG18C |
| ML40 | 13.5 | 2850 | 83.5 | Suitable for wear resistant or impact resistant dies. | YG20C ZL40.2 |
| ML50 | 13.3 | 2900 | 83.0 | Suitable for nut forming dies and high impact-resistant dies. | YG22C ZL40.5 |
| ML60 | 13.1 | 2950 | 82.5 | Suitable for stainless screw dies and semifinishing rollers. | YG25C ZL40B |
| ML80 | 13.1 | 3050 | 83.4 | Suitable for screw cap forming dies with high strength (highest impact-resistant forging dies). | YG25C GT55 |
| ML100 | 13.1 | 3100 | 84 | Suitable for screw cap forming dies with high strength (highest impact-resistant forging dies). | GT55 plus |
Other grades of cemented carbide blanks for cold-forging dies may be offered by customers' requirements.
Standard Sizes & Dimensions
D: 10-100mm
d: 2-30mm
L: 10-60mm
Other sizes can be offered according to customers requirements.
Packaging & Delivery
| Packing | Paper + paper boxes + exported wooden cartons or paper cases. As a manufacturer, we can provide any kinds of package as buyer's requirement. |
| Shipping | UPS, TNT, EMS, Fedex, DHL, or as you request. |
| Delivery | 7-10 days after confirming all details. |
Our Product Range
We specialize in all kinds of tungsten carbide profiles and dies, cutting tools, mining tools, wear parts and all kinds of non-standard customized tool parts with high performance in the industry.
Company Information
Zhuzhou Mingri Cemented Carbide Co., Ltd was established in 2001 with the investment of 10 million dollars, area of 33300 square meters and 160 staffs. We have obtained 35 patents in invention, utility model and design, and passed ISO9001:2015 Certification in quality and GB/T 24001-2004/ISO 14001:2004 Certification in environment. We offer all kinds of high quality tungsten carbide products and technical services to all clients. Our products are exported to US, Europe, Japan, Taiwan and South-east Asia etc. We have won support and trust from customers both home and abroad.
Manufacturing Workshop
We have powder mixing, pressing, sintering, finishing, surface treatment, mould design workshops and physical and chemical labs for inspection. We have hundreds of updated equipments to ensure monthly capacity of 50 tons and excellent quality.
Quality Assurance & Testing
All products undergo strict inspection with ultrasonic testing. Only defect-free products (no pores or other harm) are shipped. High density, high wear & impact resistance ensure long operational lifetime.
