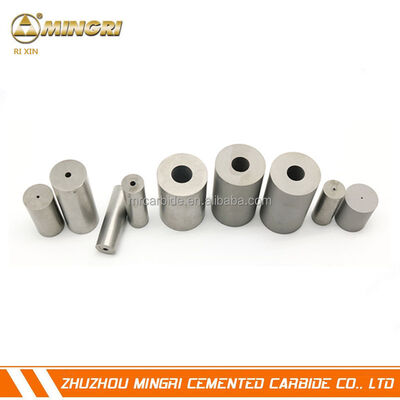

High Impact Resistance Wear Resistance Tungsten Carbide Die with Customized Support for Punching and Forging
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | Ri xin |
| Model Number: | customizable |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | $41 |
|
Detail Information |
|||
| Material: | Tungsten Carbide/cemented Carbide/hard Metal/hard Alloy/TC | Grade: | YG11/YG15/YG16C/YG18C/YG20C/YG22C/YG25C/GT40/GT50/GT55 |
|---|---|---|---|
| Content: | Wc, Co | Shape: | Round/cylinder |
| Surface Treatment: | Sintered Blank/ground/polished/sand Blasting | Density: | 13.5-14.4 G/cm3 |
| Tensile Strength: | 2420-3200 MPα | Hardness: | 82.5-88.5 HRA |
| Impact Resistance: | High | Wear Resistance: | High |
| Bending Strength: | High | Toughness: | High |
| Customizable Size: | Yes | Forming Capability: | Punching/forging/stamping/drawing/nut Forming |
| Application Materials: | Non-ferrous Metal, Ferrous Metal, Alloy | ||
| Highlight: | High Impact Resistance Tungsten Carbide Die,Wear Resistance TC Rod Die,Customized Support Carbide Punching Die |
||
Product Description
Tungsten Carbide Tube Punching Die / TC Rod Dies / Mould and Mandril
High-performance tungsten carbide heading dies designed for cold punching and heading applications for screws and nuts. These dies offer exceptional wear resistance and high toughness, making them ideal for processing non-ferrous metals, ferrous metals, and various alloys.
Grade Specifications and Applications
| Grade | Density (g/cm³) | T.R.S (MPa) | Hardness (HRA) | Properties & Applications | Approx Grades in China |
|---|---|---|---|---|---|
| A | 13.5 | 3000 | 83.5 | Good wear resistance and bending strength. Preferred for nut forming dies and high impact-resistant dies. | -- |
| YM11 | 14.4 | 2420 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | YG11 |
| YM15 | 14.0 | 2500 | 87.5 | Suitable for drawing steel tubes and rods under high compression ratio, manufacturing upsetting, punching and forging tools under large stress. | YG15 |
| YM20 | 13.5 | 2800 | 85.5 | Suitable for manufacturing punching dies for watch parts, leaf spring of musical instruments, battery jars, small sized steel balls, screws, screw caps, etc. | YG20 |
| ML32 | 13.9 | 2750 | 85.5 | Suitable for impact-resistant forging dies. | YG16C |
| ML36 | 13.7 | 2800 | 84.5 | Suitable for impact-resistant forging dies, hot-forging dies and finishing rollers. | YG18C |
| ML40 | 13.5 | 2850 | 83.5 | Suitable for wear resistant or impact resistant dies. | YG20C ZL40.2 |
| ML50 | 13.3 | 2900 | 83.0 | Suitable for nut forming dies and high impact-resistant dies. | YG22C ZL40.5 |
| ML60 | 13.1 | 2950 | 82.5 | Suitable for stainless screw dies and semifinishing rollers. | YG25C ZL40B |
| ML90 | 13.3 | 3200 | 82.0 | Suitable for screw cap forming dies with high strength (highest impact-resistant forging dies). | _ |
Other grades of cemented carbide blanks for cold-forging dies may be offered by customers' requirements.
Custom Sizes and Technical Drawings
Custom sizes available according to customer requirements.

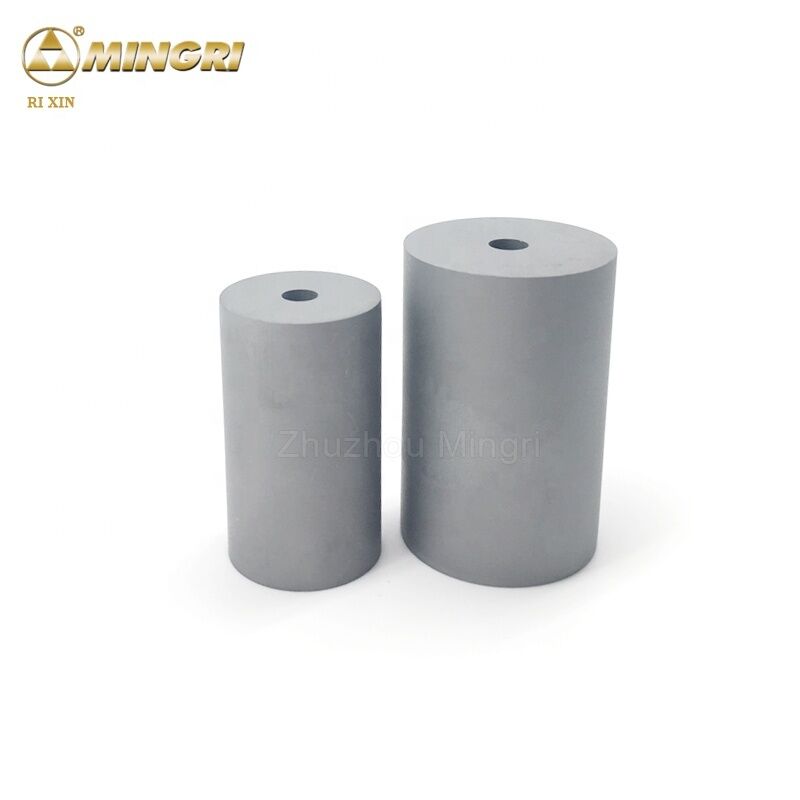

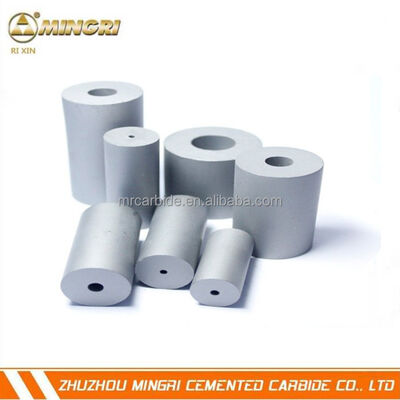

Product Gallery
Packaging and Shipping
Products are packaged in exported wooden cases or paper cartons, or according to your specific requirements.
Company Information
Company Introduction
Located in Liyu Industrial Area, Zhuzhou City, Tianyuan District, Hunan Province, Zhuzhou Mingri Cemented Carbide Co., Ltd was established in May of 2001 with an investment of RMB 40 million. We operate modern production lines with advanced equipment and employ numerous technical experts. We achieved ISO 9001:2000 certification in 2003 and continuously strive to provide customers with high quality products, competitive pricing, and satisfactory services.
We specialize in comprehensive tungsten carbide products including cold heading dies, brazed tips, disc cutters, plates, saw tips, round rods, rock drilling bits and buttons, milling tools, and geological exploration drill tools. Our products are exported to UK, Europe, Japan, Taiwan, and South-east Asia.
We are manufacturers, not just traders!
You're welcome to contact us and visit our factory!
