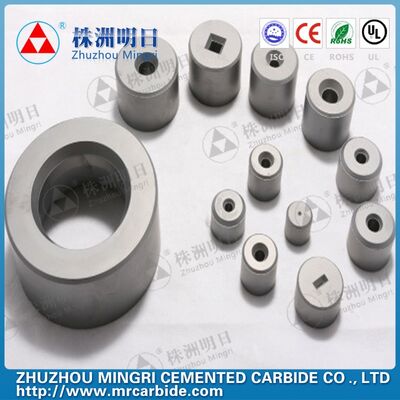

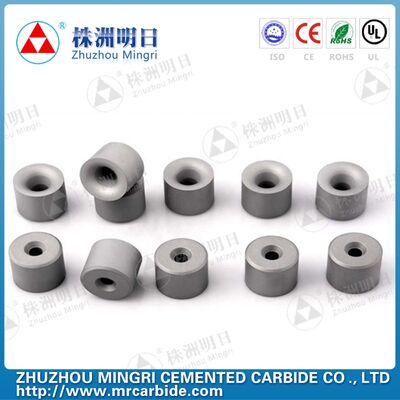

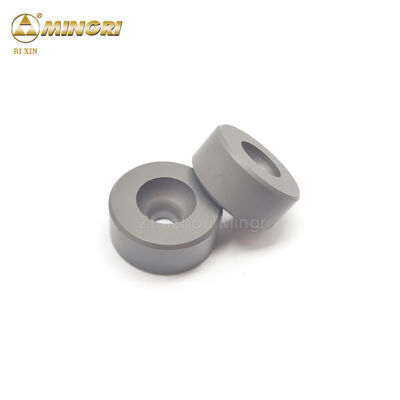

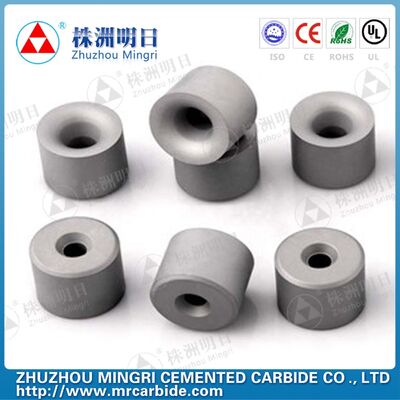

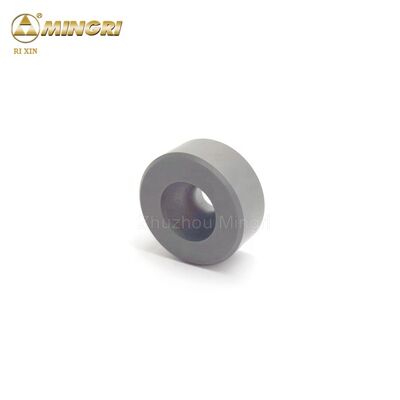

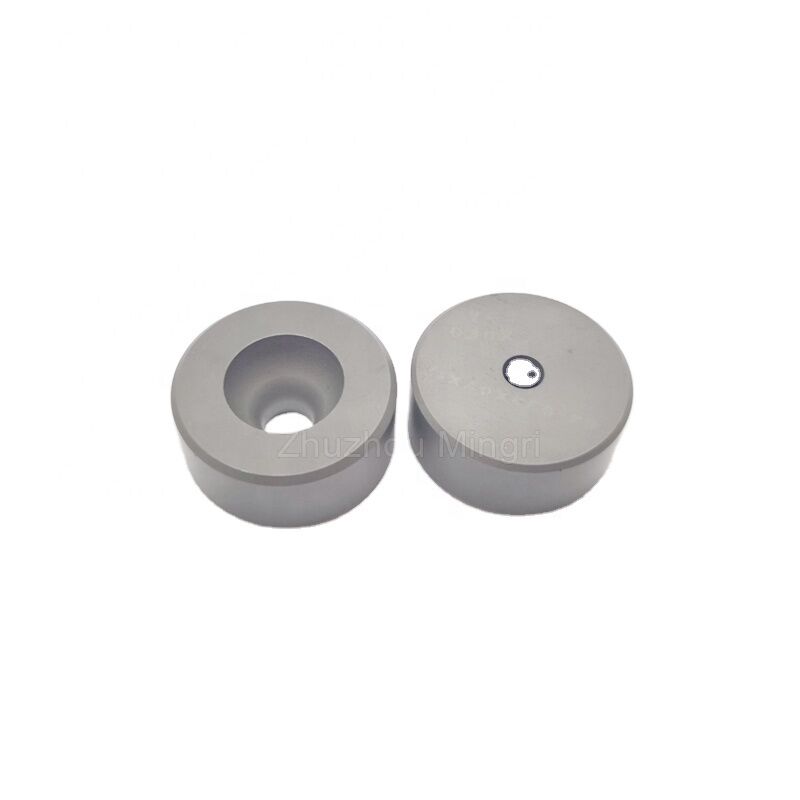

YG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire Moulding
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | rixin |
| Certification: | ISO9001:2008,ISO9001:14001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|
|
Detail Information |
|||
| Material: | Cemented Carbide | Material Grade: | YG15/20C/YG22/25C |
|---|---|---|---|
| Surface Treatment: | Sand Blast, Polishing, Mirror Surface | Hardness HRA: | 82.5 |
| T.R.S: | 2950 MPa | Density: | 14 G/cm3 (YG15) |
| Hardness HRA: | 87 (YG15) | T.R.S MPa: | 3000 (YG15) |
| Performance: | Suitable For Drawing Steel Bars And Tubes Under Very High Stress (YG15) | ISO Grade: | K40 (YG15) |
| Wear Resistance: | Good | Strength: | High |
| Application Stress: | Very High | Surface Finish: | Mirror Surface |
| Density Range: | 14-14.9 G/cm3 | ||
| Highlight: | YG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die,Stainless Steel Tungsten Carbide Wire Drawing Die,Electrical Wire Moulding Carbide Die |
||
Product Description
High-performance tungsten carbide wire drawing dies for stainless steel, electrical wire molding, and OEM applications.
Tungsten carbide (WC/TC), also known as cemented carbide, hardmetal or widia, is a metal matrix composite where tungsten carbide particles are embedded in a cobalt matrix. This non-oxidizing ceramic maintains exceptional hardness comparable to corundum or sapphire even at high temperatures.
| Grade | Density g/cm³ | Hardness HRA | T.R.S MPa | Performance & Application | ISO |
|---|---|---|---|---|---|
| YG6X | 14.85 | 91.5 | 2300 | Good wear resistance, suitable for drawing steel wires, nonferrous metal wires and alloy wires or bars less than OD6mm under low stress | K10 |
| YG6 | 14.9 | 90.5 | 2400 | Good wear resistance, suitable for drawing steel, nonferrous metal and alloy wires or bars less than OD20mm under low stress, also for drawing tubes less than OD10mm | |
| YG8X | 14.65 | 91.5 | 2900 | Good wear resistance and strength, suitable for drawing all kinds of wires and bars | K20 |
| YG8 | 14.7 | 89.8 | 2800 | Good wear resistance and strength, suitable for drawing steel, nonferrous metal and alloy bars less than OD50mm under high stress, also for drawing tubes less than OD35mm | |
| YG15 | 14 | 87 | 3000 | Suitable for drawing steel bars and tubes under very high stress | K40 |
Other grades available upon customer request.
| Packing | Paper + paper boxes + exported wooden cartons or paper cases. Custom packaging available per buyer requirements. |
| Shipping | UPS, TNT, EMS, FedEx, DHL, or as requested |
| Delivery | 7-10 days after confirming all details |
We specialize in manufacturing all kinds of tungsten carbide profiles and dies, cutting tools, mining tools, wear parts, and custom non-standard tool parts with superior industry performance.
Established in 2001 with a $10 million investment, covering 33,300 square meters with 160 employees. We hold 35 patents in invention, utility model and design, and maintain ISO9001:2015 Quality Certification and GB/T 24001-2004/ISO 14001:2004 Environmental Certification. Our high-quality tungsten carbide products and technical services are exported to US, Europe, Japan, Taiwan, and Southeast Asia, earning trust from customers worldwide.
Our comprehensive facilities include powder mixing, pressing, sintering, finishing, surface treatment, mould design workshops, and physical/chemical inspection labs. With hundreds of updated equipment, we maintain a monthly production capacity of 50 tons while ensuring excellent quality standards.
All products undergo strict ultrasonic inspection - only defect-free items are shipped. Our dies feature high density, exceptional wear and impact resistance, ensuring long operational lifetime.
Since passing ISO9001:2000 certification in 2003, we continuously improve quality to provide customers with superior products, competitive pricing, and satisfactory service.
As one of China's leading tungsten carbide manufacturers, Zhuzhou Ming Ri Cemented Carbide Co., Ltd supplies diverse high-quality products globally, adhering to our management principle of "stable quality & reliable cooperation".
