Factory Supply High Purity Tungsten Cobalt Carbide Alloy Ball Yg8
Product Details:
| Place of Origin: | China |
| Brand Name: | Rixin |
| Certification: | CE ROHS UL ISO |
| Model Number: | YG8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1KG |
|---|---|
| Packaging Details: | Cartons |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50+tons+per month |
|
Detail Information |
|||
| Keyword: | Tungsten Carbide Ball | Material: | 100% Raw Material |
|---|---|---|---|
| Usage: | Used For Mill Machine | Component: | WC+CO |
| Tolerance: | As Per Your Requirment | Product Name: | Tungsten Carbide Ball |
| Surface: | Blanks Or Polished | Size: | 3mm, 6mm, 10mm Ect |
| Grade: | YG6,YG8 | HS Code: | 820900 |
| Highlight: | Yg8 Tungsten Cobalt Carbide Alloy Ball,Tungsten Cobalt Carbide Alloy Ball |
||
Product Description

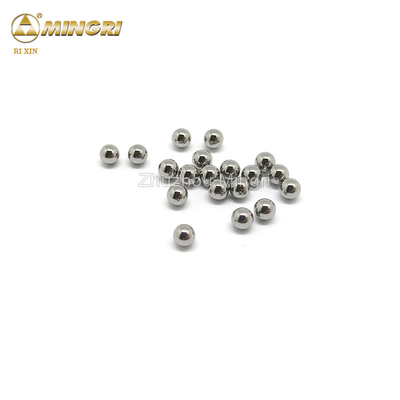

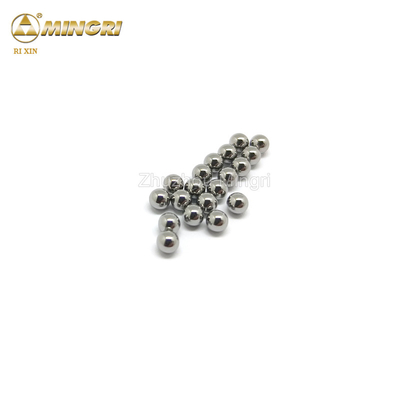

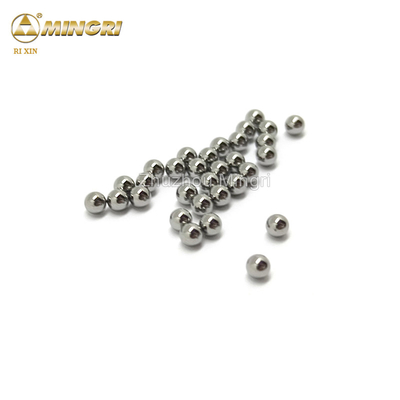

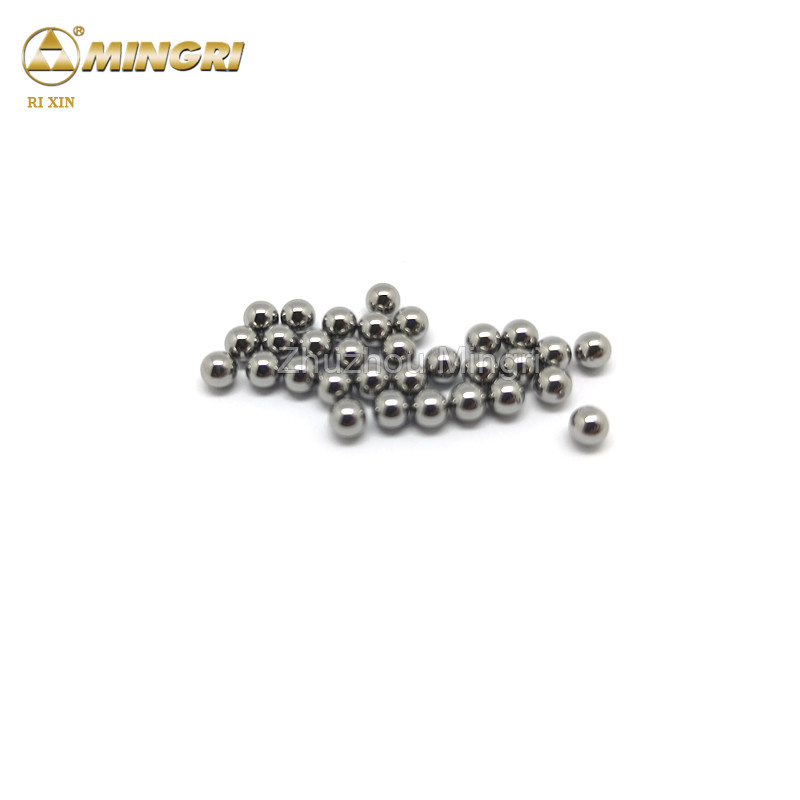

Factory Supply High Purity Tungsten Cobalt Carbide Alloy Ball Yg8
Specification of tungsten carbide ball
1, High stability, long lifespan circle.
2, Customized as your requirements.
3, Approved factory for oil and natural gas industry TOP5 customers.
4, With ASP9100 certificate , API certificate, ISO9001:2015
5, With a Special Thread Processing Workshop
Mingri produce various grade of solid tungsten carbide rods, such as YG6 YG12 YG10 YG15 YG20. Each grade has different Chemical composition and physical properties for different application.
| Grade | Density ( g/cm3) | Hardness ( HRA) | T.R.S(MPa) | Grain size ( μm) | Composition ( % ) | Equal to ISO |
| YL10.2 | 14.4~14.6 | ≥91.8 | ≥3000 | 0.6~0.8 | 10%CO 90%WC | K30 |
| YG6X | 14.9~15.0 | ≥91.5 | ≥2300 | 0.8~1.0 | 6% CO 94%WC | K10 |
| YG15 | 14.0~14.1 | ≥87 | ≥3000 | 1.2~2.0 | 15%CO 85%WC | / |
| YG10 | 14.4~14.6 | ≥88 | ≥2400 | 1.2~1.6 | 10%CO 90%WC | K20 |
| YG8 | 14.65~14.8 | ≥89.5 | ≥2800 | 1.2~1.6 | 8%CO 92%WC | K20 |
| YG6 | 14.85~15.0 | ≥90.2 | ≥2400 | 1.2~1.6 | 6%CO 94%WC | K10 |
Sizes of tungsten carbide ball
Mingri also can produce the other customized carbide parts, not only the sizes & shape, but also the grades based on your using purpose. If you need more specification of the tungsten carbide ball, please kindly contact us.
Product DIA. specifications:
| 2mm | 2.381mm (3/32") |
3mm | 3.175mm (1/8") |
4mm | 4mm |
| 6mm | 6.35mm (1/4") |
8mm | 8.5mm | 12mm | 11.1125mm (7/16") |
| 14mm | 14.2875mm (9/16") |
15mm | 15.875mm (5/8") |
20mm | 22.225mm (7/8") |
Application of tungsten carbide ball
Tungsten carbide balls are used in applications requiring extreme hardness and resistance to wear and abrasion; and are able to with stand hard shocks and impacts.
Common applications include ball valves, flow meters, ball bearings, linear bearings, tungsten carbide grinding balls, and ball screws.
