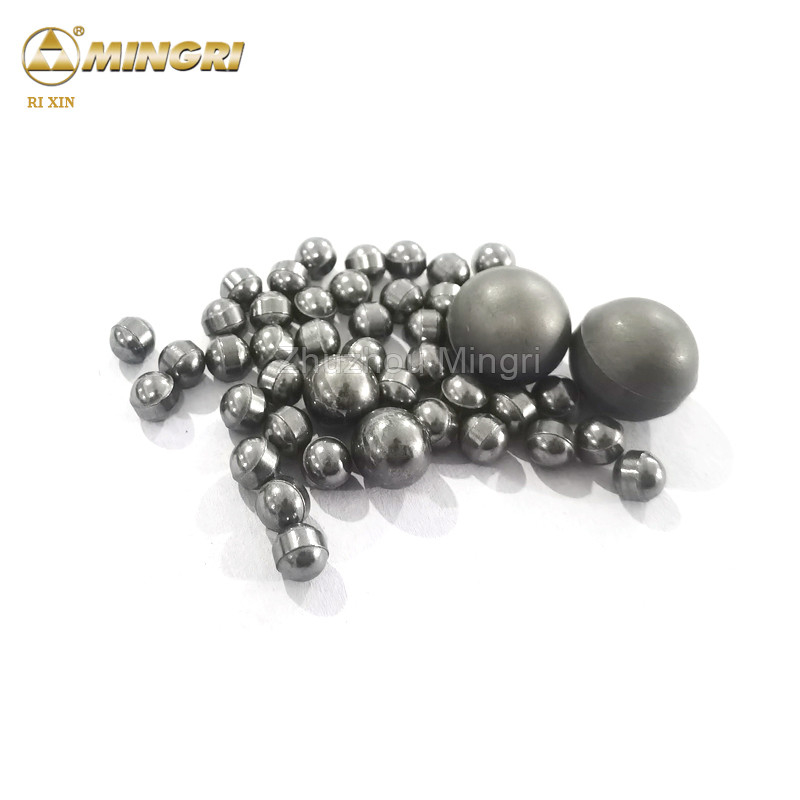

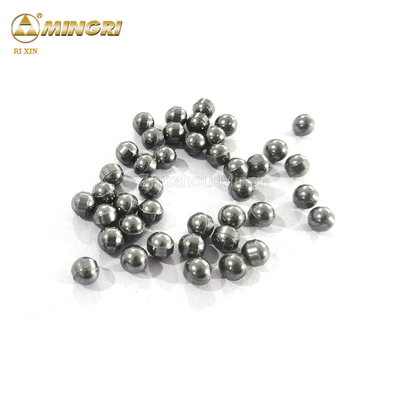

Mining Tungsten Carbide Bearings Ball Blanks 3/32" Wear Resistant

Mining Tungsten Carbide Bearings Ball Blanks 3/32" Wear Resistant

Product Details:

Place of Origin: China
Brand Name: Rixin
Certification: CE ROHS UL ISO
Model Number: YG8

Payment & Shipping Terms:

Minimum Order Quantity: 1KG
Packaging Details: Cartons
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 50+tons+per month
Get Best Price Contact Now

Detail Information

Keyword: Carbide Ball, Tunsten Carbide Ball Material: 100% Raw Material
Usage: Valves , Bearing , Casting Fittings , Punching Parts , Grinding Component: WC+CO
Tolerance: As Per Your Requirment Product Name: Manufacturer Wholesale Tungsten Carbide 3/32" Bearings Ball
Size: 0.5mm-50.8mm Application: Bearing Accessories,Mining,valve Ball Etc,valves
Grade: G3 - G1000,YG6/YG8/YG10X/YG20C,G10-G1000
High Light:

Tungsten Carbide 3/32 Bearings Ball

,

Tungsten Carbide Bearings Ball Blanks

,

Wear Resistant Tungsten Carbide Ball

Product Description

Manufacturer Wholesale Tungsten Carbide 3/32" Bearings Ball, Carbide Ball Blanks






Tungsten carbide balls are used where extreme hardness and wear resistance is required; in such applications as bearings, ball screws, valves and flow meters. These balls are also used for coining and as pivots, detents and tips for gauges and tracers. Tungsten carbide itself is practically inert and extremely strong. Any attack is usually on the binder. Since other material is less expensive, the selection of tungsten carbide solely for corrosion resistance is usually not justified. In highly corrosive conditions, carbides with a more resistant binder can be supplied.

Mining Tungsten Carbide Bearings Ball Blanks 3/32" Wear Resistant 0


Grade and Usage

Factory Supply High Hardness TC Ball Tungsten Carbide Ball for Oil Industry

Grade

Hardness

(HRA)

Density

(g/cm)

Strength

( N/mm²)

Application
YG6X ≥92.0 14.9 ≥2200 Suitable for grinding, best wear resistance.
YG6 ≥90.0 14.95 ≥2800 Suitable for grinding, bearing ball, valve seat ball, more widely adapted.
YG8 ≥89.0 14.75 ≥3200 Suitable for grinding, bearing ball, valve seat ball, good versatility.
YN6 ≥90.0 14.8 ≥2150 This brand is a non-magnetic alloy, generally used for bearing ball, valve seat ball, good corrosion resistance, wear resistance is better than YN9.
YN9 ≥88 14.8 ≥2500 This brand is a non-magnetic alloy, generally used for bearing ball, valve seat ball, good corrosion resistance, strength is better than YN6.


Size and Type

.jpg





Diameter Tolerance Diameter Tolerance
mm mm mm mm
Φ4.3 0~+0.15 Φ18.45 0~+0.2
Φ4.85 0~+0.15 Φ19.45 0~+0.2
Φ5.2 0~+0.15 Φ22.7 0~+0.2
Φ5.85 0~+0.15 Φ24.3 0~+0.25
Φ6.3 0~+0.15 Φ24.5 0~+0.25
Φ6.7 0~+0.15 Φ27.6 0~+0.25
Φ7.05 0~+0.15 Φ29.2 0~+0.25
Φ8.3 0~+0.15 Φ30.6 0~+0.3
Φ9.05 0~+0.15 Φ32.4 0~+0.3
Φ9.25 0~+0.15 Φ35.3 0~+0.3
... ... ... ...




Application of tungsten carbide ball



Tungsten carbide ball was widely used in precision tools drawing and punching,high precision bearings,high precision measuring instrument and appratus,water pump and brake pump,and various machinery sealing accessories part in high-tech industry.
