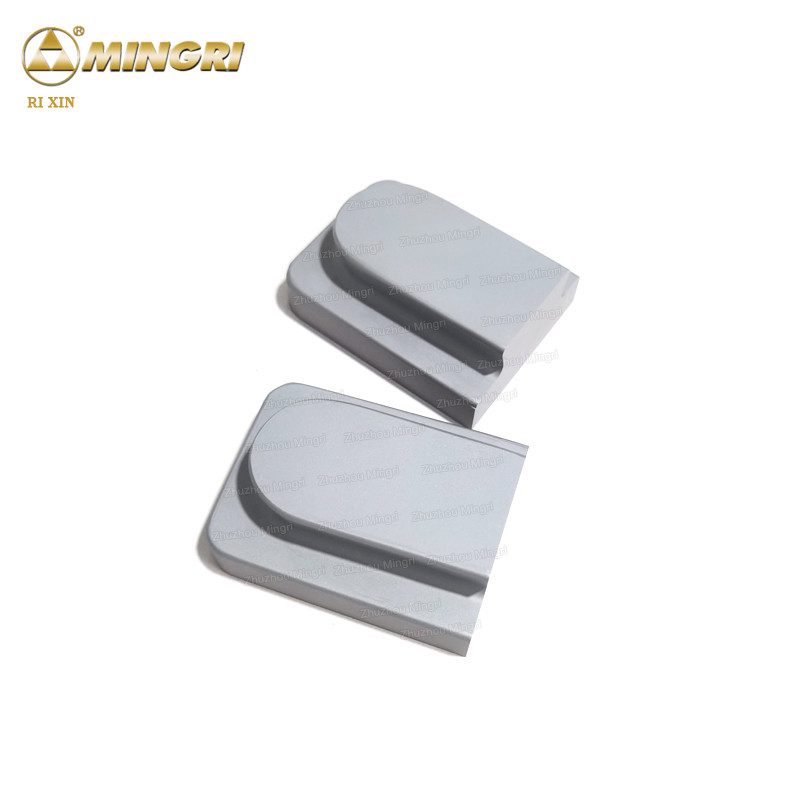

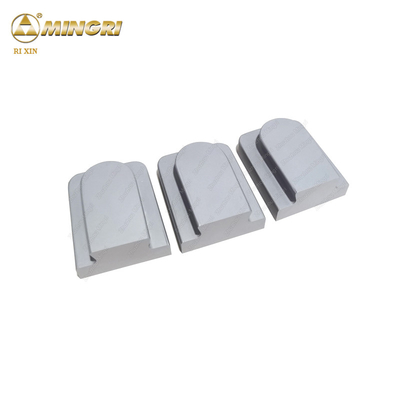

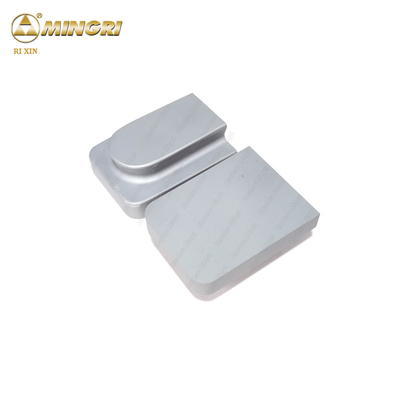

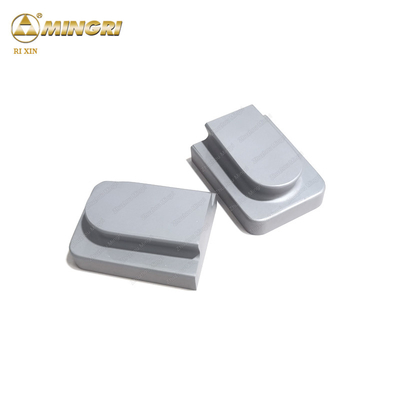

Factory Supply Iron Ore Processing Plant Tungsten Carbide HPGR Edge Block
Product Details:
| Place of Origin: | China |
| Brand Name: | Rixin |
| Certification: | CE ISO ROHS UL |
| Model Number: | MR-Z2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50KG |
|---|---|
| Packaging Details: | first put in inner box, then put into outter carton |
| Delivery Time: | 7-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50+tons+per month |
|
Detail Information |
|||
| Product Name: | Carbide HPGR Block | Material: | Tungsten Carbide |
|---|---|---|---|
| Model: | MR-Z2 | Shape: | Customized |
| Grade: | RX-11 RX-15 RX650 RX20 | Finish: | Rough/fine Machining |
| Keywords: | Carbide HPGR Block | ||
| High Light: | Tungsten Carbide HPGR Edge Block,Carbide HPGR Edge Block,Tungsten Carbide Hpgr Block |
||
Product Description
Factory Supply Iron Ore Processing Plant Tungsten Carbide HPGR Edge Block
Specification
1. cladding welding
2. cold pressing
3. hot setting
4. gluing
High pressure roller presses are gradually gaining recognition in the market for their high crushing efficiency, low energy consumption and high material yield. The performance of the carbide roller press nails determines the operating conditions of the roller press.
| Grades | D(g/cm3) | HRA |
≥ N/mm2 |
| RX-11 | 14.4 | 87 | 2700 |
| RX-15 | 14 | 87 | 3000 |
| RX650 | 13.8 | 88.2 | 3100 |
| RX20 | 13.5 | 85.5 | 3200 |
The above grades are all unique grades developed by our company for the use of carbide HPGR block for roller press, with good wear resistance and compressive strength, suitable for cement, metal ore rock crushing, such as cement raw material, clinker, iron ore, quartz stone and other operating requirements, high working efficiency.The service life of the nail is more than 25,000 hours for cement raw material, more than 30,000 hours for clinker and more than 8,000 ~ 10,000 hours for iron ore.
Application
If rolling machine uses carbide HPGR block, it gets high density,high strength and good impacting property. Lifetime of Cemented carbide stud is over 10 times more than surfacing material.
