Valve Pair Co6% Tungsten Carbide Balls For Oil Industry Tungsten Carbide Ball Valve

Valve Pair Co6% Tungsten Carbide Balls For Oil Industry Tungsten Carbide Ball Valve

Product Details:

Place of Origin: China
Brand Name: Rixin
Certification: CE ROHS UL ISO
Model Number: YG8

Payment & Shipping Terms:

Minimum Order Quantity: 1KG
Packaging Details: Cartons
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 50+tons+per month
Get Best Price Contact Now

Detail Information

Product Name: Co6% Tungsten Carbide Balls For Valve Pair For Oil Industry, Tungsten Carbide Ball Valve Size: 0.5mm-50.8mm
Grade: G3 - G1000,YG6/YG8/YG10X/YG20C,G10-G1000 Surface: High Polished,Sintered,Grounded,Polishing Finish,Polishing Finish/blank
Material: Tungsten Carbide,YG8,Tungsten-cobalt Alloy/ Nickel Free Alloy/titanium Carbide,WC Usage: Tungsten Carbide Ball For Valve And Bearing,Subtle Bearings,precision Sealing,measurement Tools
Package: Carton,brown Paper Box,wooden Case
High Light:

Co6% Tungsten Carbide Balls

,

Valve Pair Tungsten Carbide Balls

,

Co6% Tungsten Carbide Ball Valve

Product Description

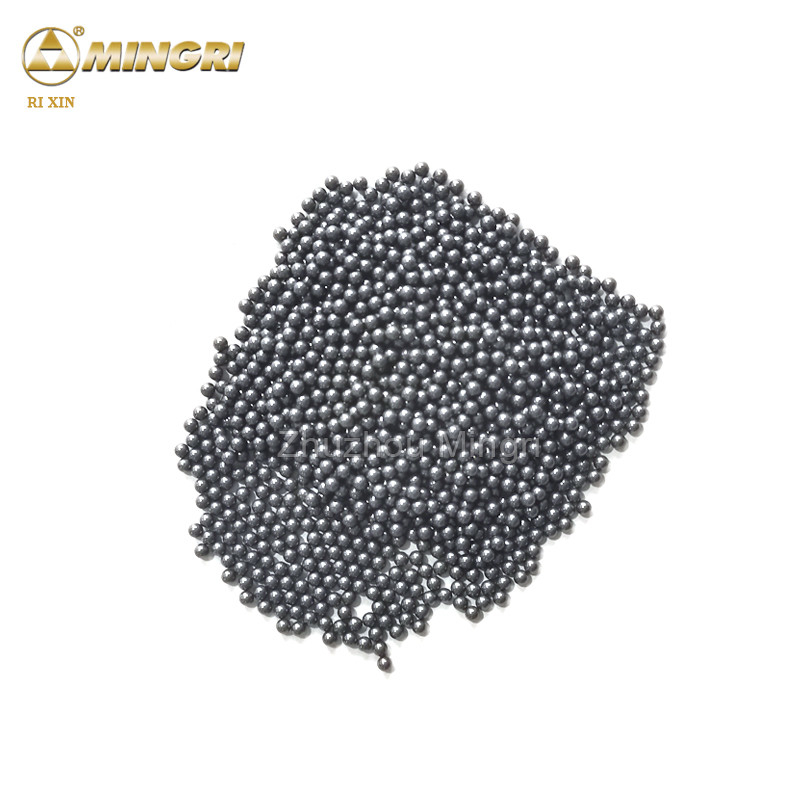

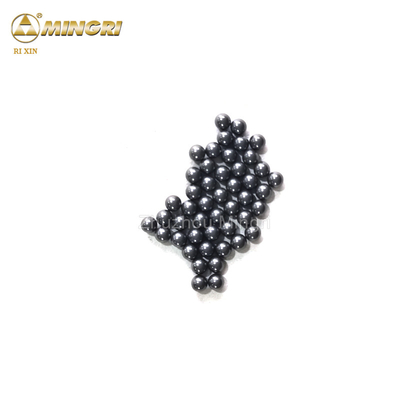

Co6% Tungsten Carbide Balls for Valve Pair for Oil Industry, tungsten carbide ball valve



Item Tungsten carbide ball
Grade YG6 , YG6X , YG8 , YG10 , YG13, YN6 , YN8 , YN10 , YN12
Type G10 - G100
Brand Rixin
Country of Origin Zhuzhou, China
Usage hardware industrial , valves , bearing , casting fittings , punching parts , grinding , measurement .





Tungsten carbide has a high strength level, especially for a material that is three times as rigid as steel, and 4-5 times as rigid as iron. It resists deformation well, has good impact resistance, and can handle extremely low and high temperatures easily.

These properties make tungsten carbide ball products a popular option for situations where traditional steel has failed. Our tungsten carbide ball bearings will therefore suit any situations where high temperatures and stresses combine.

The material is made from a combination of tungsten and carbon (with the chemical formula: WC). However, cobalt and nickel may be added as a binder to enhance the balls' performance.


Valve Pair Co6% Tungsten Carbide Balls For Oil Industry Tungsten Carbide Ball Valve 0


Grade and Usage
Grade

Hardness

(HRA)

Density

(g/cm)

Strength

( N/mm²)

Application
YG6X ≥92.0 14.9 ≥2200 Suitable for grinding, best wear resistance.
YG6 ≥90.0 14.95 ≥2800 Suitable for grinding, bearing ball, valve seat ball, more widely adapted.
YG8 ≥89.0 14.75 ≥3200 Suitable for grinding, bearing ball, valve seat ball, good versatility.
YN6 ≥90.0 14.8 ≥2150 This brand is a non-magnetic alloy, generally used for bearing ball, valve seat ball, good corrosion resistance, wear resistance is better than YN9.
YN9 ≥88 14.8 ≥2500 This brand is a non-magnetic alloy, generally used for bearing ball, valve seat ball, good corrosion resistance, strength is better than YN6.


Size and Type



Grade

Diameter

(μm)

Roundness

(μm)

Surface roughness

(μm)

Base diameter

(μm)

Batch diameter

(μm)

3 0.0762 (0.003”) 0.0762 (0.003”) 0.127 (0.005”) ±0.0762 (±0.003”) 0.127 (0.005”)
5 0.127 (0.005”) 0.127 (0.005”) 0.02 (0.0008”) ±0.127 (±0.005”) 0.254 ( 0.01”)
10 0.254 ( 0.01”) 0.254 ( 0.01”) 0.254 ( 0.01”) ±2.54 (±0.1”) 0.508 (0.02”)
15 0.381 (0.015”) 0.381 (0.015”) 0.254 ( 0.01”) ±2.54 (±0.1”) 0.762 (0.03”)
16 0.4064 (0.016”) 0.4064 (0.016”) 0.254 ( 0.01”) ±2.54 (±0.1”) 0.8128 (0.032”)
24 0.6096 (0.024”) 0.6096 (0.024”) 0.0508 (0.002”) ±2.54 (±0.1”) 1.2192 (0.048”)
25 0.635 (0.025”) 0.635 (0.025”) 0.0508 (0.002”) ±2.54 (±0.1”) 1.27 (0.05”)
48 1.2192 (0.048”) 1.2192 (0.048”) 0.0762 (0.003”) ±5.08 (±0.2”) 2.4384 (0.096”)
50 1.27 (0.05”) 1.27 (0.05”) 0.0762 (0.003”) ±7.62 (±0.3”) 2.54 (0.1”)
100 2.54 (0.1”) 2.54 (0.1”) 0.127 (0.005”) ±12.7 (±0.5”) 5.08 (0.2”)
200 5.08 (0.2”) 5.08 (0.2”) 0.2032 (0.008”) ±25.4 (±1.0”) 10.16 (0.4”)
300 7.62 (0.3”) 7.62 (0.3”)   ±25.4 (±1.0”) 15.24 (0.6”)
500 12.7 (0.5”) 12.7 (0.5”)   ±50.8 (±2.0”) 25.4 (1.0”)
1000 25.4 (1.0”) 25.4 (1.0”)   ±127.0 (±5.0”) 50.8 (2.0”)
2000 50.8 (2.0”) 50.8 (2.0”)   ±127.0 (±5.0”) 101.6 (4.0”)
3000 76.2 (3.0”) 76.2 (3.0”)   ±127.0 (±5.0”) 152.4 (6.0”)




Application of tungsten carbide ball



Tungsten carbide ball was widely used in precision tools drawing and punching,high precision bearings,high precision measuring instrument and appratus,water pump and brake pump,and various machinery sealing accessories part in high-tech industry.

Valve Pair Co6% Tungsten Carbide Balls For Oil Industry Tungsten Carbide Ball Valve 3
