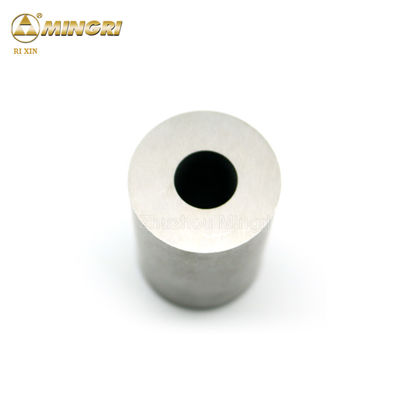

Hip Sintered Tungsten Carbide Cold Forging Die Mold Standard Size
Product Details:
Place of Origin: | Zhuzhou, Hunan, China |
Brand Name: | RiXin |
Certification: | ISO9001:2008; ISO14001:2004 |
Model Number: | Tungsten carbide die |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 KG |
---|---|
Price: | USD+49~69+KG |
Packaging Details: | paper, then paper boxes, then exported wooden cartons or paper cases,or packed as customers'requirement. |
Delivery Time: | 7 to 10 working days depending on the order quantity and requirements |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50 tons/month hip sintered tungsten carbide cold forging / heading / cold heading mold forging dies |
Detail Information |
|||
Product Name: | Hip Sintered Tungsten Carbide Cold Forging / Heading / Cold Heading Mold Forging Dies | Keywords: | Carbide Die, Die Casting Mould, Punch Dies, Wire Drawing Die, Machine Mold, Progressive Die, Extrusion Die, Press Mold, Mould Parts, Trimming Die, Cold Heading Die, Forging Mold, Cold Forming Die |
---|---|---|---|
Grade: | YG6, YG8, YG11, YG12, YG15, YG20, YG20C, YG22C, YG25C, GT55, ML40, ML100, ST7, VA90, C5 | Material: | TC, Widia, Tungsten Carbide |
Hardness: | 83 - 92 | Surface: | Ground, Sintered Blasting |
Usage: | Die Casting Mould, Punch Dies, Wire Drawing Die, Machine Mold, Progressive Die, Extrusion Die, Press Mold, Mould Parts, Trimming Die, Cold Heading Die, Forging Mold, Cold Forming Die Etc. | Shaping Mode: | Punching Mold, Compression Mould |
Mould Life: | According To Your Requirement,250000-300000shots | Advantage: | Durable,High Wear &corrosion,High Toughness & Good Wear Resistance,20years Production Experience In Tungsten Carbide Field |
Product: | Extrusion Mold,mold Parts,drawing Die | ||
Highlight: | Carbide Cold Forging Die,Hip Sintered Tungsten Carbide Die,Tungsten Carbide Mold Standard Size |
Product Description
hip sintered tungsten carbide cold forging / heading / cold heading mold forging dies
Description
Item | Tungsten carbide die |
Grade | YG6, YG8, YG11, YG12, YG15, YG20, YG20C, YG22C, YG25C, GT55, ML40, ML100, ST7, VA90, C5 |
Sizes | standard or customized. |
Brand | Rixin |
Country of Origin | Zhuzhou, China |
Usage | die casting mould, punch dies, wire drawing die, machine mold, progressive die, extrusion die, press mold, mould parts, trimming die, cold heading die, forging mold, cold forming die etc. |
The primary advantage of tungsten carbide is its strength. Carbide dies, which are notable for offering more satisfactory performance than steel.
Grades:
Grade | Density g/cm3 |
T.R.S MPα |
Hardness HRA |
Properties & Applications | Approx Grades in China |
A | 13.5 | 3000 | 83.5 | Good wear resistance and bending strength. It is often preferrd by nut forming dies and high impact-resistant dies. | — |
YM11 | 14.4 | 2420 | 88.5 | Forming or stamping dies for metal powders and non-metal powders. | YG11 |
YM15 | 14.0 | 2500 | 87.5 | It is suitable for drawing steel tubes and rods under high compression ratio, manufactuing upsetting, punching and forging tools under large stress. | YG15 |
YM20 | 13.5 | 2800 | 85.5 | It is suitable for manufacturing punching dies for watch parts, leaf spring of musical instruments, battery jars, small sized steel balls, screws, screw caps, etc. | YG20 |
ML32 | 13.9 | 2750 | 85.5 | It is suitable for impact-resistantant forging dies. | YG16C |
ML36 | 13.7 | 2800 | 84.5 | It is suitable for impact-resistant forging dies, hot-forging dies and finishing rollers. | YG18C |
ML40 | 13.5 | 2850 | 83.5 | It is suitable for wear resistant or impact resistant dies. | YG20C ZL40.2 |
ML50 | 13.3 | 2900 | 83.0 | It is suitable for nut forming dies and high impact-resistantant dies. | YG22C ZL40.5 |
ML60 | 13.1 | 2950 | 82.5 | It is suitable for stainless screw dies and semifinishing rollers. | YG25C ZL40B |
ML80 | 13.1 | 3050 | 83.4 | It is suitable for screw cap forming dies with high strength ( highest impact-resistant forging dies). | YG25C GT55 |
ML100 | 13.1 | 3100 | 84 | It is suitable for screw cap forming dies with high strength ( highest impact-resistant forging dies). | GT55 plus |
Other grades of cemented carbide blanks for cold-forging dies may be offered by customers' requirements |
Sizes:
Type |
Dimension |
Applicable |
|||
d | D | L Range of L |
|||
BDP00710- | 0.7 | 10 | 12.0-20.0 | M1 | |
BDP01010- | 1.0 | 10 | 12.0-20.0 | M1.5-M2 | |
BDP01013- | 1.0 | 13 | 15.0-40.0 | M1.5-M2 | |
BDP01213- | 1.2 | 13 | 15.0-40.0 | M1.5-M2 | |
BDP01510- | 1.5 | 10 | 12.0-25.0 | M2 | |
BDP01516- | 1.5 | 16 | 15.0-45.0 | M2 | |
BDP01813- | 1.8 | 13 | 12.0-45.0 | M2.5 | |
BDP01816- | 1.8 | 16 | 20.0-45.0 | M2.5 | |
BDP02113- | 2.1 | 13 | 15.0-30.0 | M3 | |
BDP02116- | 2.1 | 16 | 25.0-45.0 | M3 | |
BDP02316- | 2.3 | 16 | 15.0-45.0 | M3 | |
BDP02522- | 2.5 | 22 | 20.0-60.0 | M3 | |
BDP02813- | 2.8 | 13 | 15.0-30.0 | M4 | |
BDP02816- | 2.8 | 16 | 25.0-40.0 | M4 | |
BDP02818- | 2.8 | 18 | 20.0-50.0 | M4 | |
BDP02820- | 2.8 | 20 | 20.0-50.0 | M4 | |
BDP02822- | 2.8 | 22 | 20.0-60.0 | M4 | |
BDP02825- | 2.8 | 25 | 20.0-60.0 | M4 | |
BDP03216- | 3.2 | 16 | 15.0-45.0 | M4 | |
BDP03218- | 3.2 | 18 | 15.0-50.0 | M4 | |
BDP03616- | 3.6 | 16 | 20.0-50.0 | M5 | |
BDP03618- | 3.6 | 18 | 20.0-60.0 | M5 | |
BDP03822- | 3.8 | 22 | 20.0-40.0 | M5 | |
BDP03830- | 3.8 | 30 | 50.0-60.0 | M5 |
…
Other types can be offered according to customers' requirement.
Application:
Package:
Packing | Paper+paper boxes+exported wooden cartons or paper cases. As a manufacturer, Mingri can provide any kinds of package as buyer's requirement. |
Shipping | UPS,TNT,EMS,Fedex,DHL,or as you request. |
Delivery | 7-10 days after confirm all details. |
Main products:
We are specialized in all kinds of tungsten carbide profiles and dies, cutting tools, mining tools, wear parts and all kinds of non-standard customized tool parts with high performance in the industry.
For details about the below products, please click the More on below pictures:
For details about our company, equipments, inspection and quality, please refer to
http://www.tungstencarbide-tools.com/aboutus.html
http://www.tungstencarbide-tools.com/factory.html
http://www.tungstencarbide-tools.com/quality.html
FAQ:
Q1 : Are you Factory or trading company ?
We are Factory with 18 years of production experience.
Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is 4 hour away from Shanghai ,
Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
