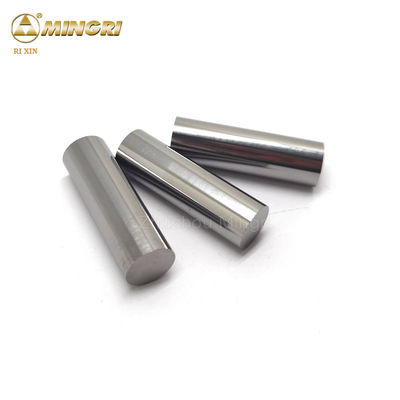

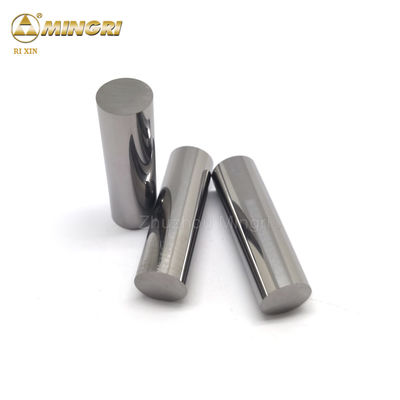

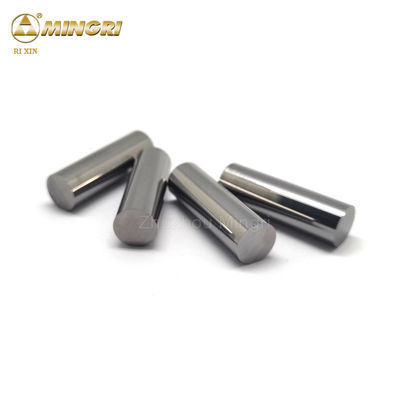

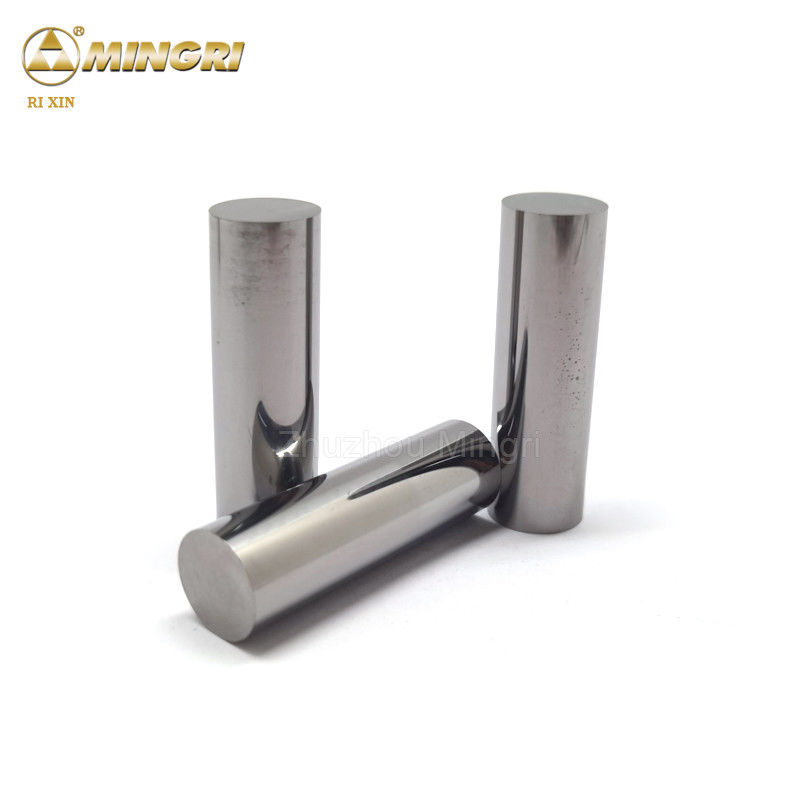

Yg15 Yg8 Cemented Tungsten Carbide Rod Bar With HIP Sintering
Product Details:
| Place of Origin: | China |
| Brand Name: | Rixin |
| Certification: | CE ROHS UL ISO |
| Model Number: | Ф15*100mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1KG |
|---|---|
| Packaging Details: | Cartons |
| Delivery Time: | 7-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50+tons+per month |
|
Detail Information |
|||
| Keyword: | YL10.2 Carbide Rods | Material: | 100% Raw Material |
|---|---|---|---|
| Usage: | Used For Cut Metal | Component: | WC+CO |
| Tolerance: | H6 | Product Name: | YL10.2 Carbide Rods |
| Size: | Ф15*100mm | ||
| High Light: | Yg15 Tungsten Carbide Rod,Cemented Tungsten Carbide Rod Bar,HIP Sintering Tungsten Carbide Rod |
||
Product Description
Hot sale Yg15 Yg8 cemented Tungsten carbide rod bar
Our Advantage
A > Extrusion rods and HIP sintering.
B > Ultrafine grain size powders.
C > Run-out and Roundness can be less than 5 micron(0.005mm).
D > Carbide rods is solid or with straight/helix coolant holes.
Recommanded of YL10.2 carbide rods
| Grades | MR09U | MR06U | MR08U | MR12U | MR10F |
| Co | 9 | 6 | 8 | 12 | 10 |
| WC | 91 | 94 | 92 | 88 | 90 |
| Grain size | 0.3 | 0.4 | 0.4 | 0.4 | 0.8 |
| Density (G/CM3) | 14.5 | 14.9 | 14.7 | 14.3 | 14.4 |
| Hardness (HRA) | 93.7 | 94.0 | 93.6 | 92.5 | 91.8 |
| TRS (MPa) | 3500 | 3800 | 3800 | 3500 | 3500 |
| Other grades may be offered by customers' requirements | |||||
| Classification | Grain size |
| Sub fine grain | 0.5-0.6 |
| Fine grain | 0.6-0.8 |
| Medium fine grain | 1.0-1.2 |
| Medium grain | 1.2-1.6 |
| Medium grain | 1.6-2.0 |
| Mixed grain | 0.8-1.6 |
Type of YL10.2 carbide rods
| Diameter (mm) | Length (mm) | grinding and polishing |
| 0.3 ~ 1.0 | 5 ~ 330 | h6,h7,H6 or H7 |
| 1.0~3.0 | 5~330 | h6,h7,H6 or H7 |
| 4.0~80 | 5~1000 | h6,h7,H6 or H7 |
Application of YL10.2 carbide rods
1, YL10.2 carbide rods are mostly applied for end mill and drill .
2, it is used for non-ferrous precision cutting and wood cutting .
3, it is used for fibreglass reinforced plastics,titanium alloys,hardened steel .
FAQ
Q:Can you make the product with my design?
A: Yes, we can,we supply customized service.You can send us all the details of what you need,then we will provide detailed quotation.
Q: What products do you mainly supply?
A: We mainly supply tungsten, molybdenum, titanium, tantalum, niobium and their alloy products and tungsten carbide products.
