Cemented Tungsten Carbide Die For Punching Stamping Cold Heading Molds

Cemented Tungsten Carbide Die For Punching Stamping Cold Heading Molds

Product Details:

Brand Name: RI XIN
Certification: ISO9001:2008 ISO14001:2004
Model Number: rixin-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 KG
Price: Price varies according to the grade,weight and size
Packaging Details: First in small cartons filled with cotton, then in bigger cartons.
Delivery Time: 7-20 business days
Payment Terms: D/A, L/C, D/P, T/T, Western Union
Supply Ability: 50 Tons per month
Get Best Price Contact Now

Detail Information

Grades: YG11,YG15,YG20,YG16C,YG18C,YG20C,YG22C,YG25C,GT55 Material: Tungsten ,Cobalt
Application: Cold Heading Die,Cold Forging Die,Nut Forming Dies,Flow Restrictor Etc. Surface Treatment: Grinding,Sand-blasting,Polishing
Density: 13.1-14.4 HRA: 81.5-88.5
Strength: 3200 Key Word: Cemented Carbide Nib Pellets
High Light:

tungsten carbide tools


tungsten carbide tooling


Punching Cemented Tungsten Carbide Die

Product Description

G50 long lifetime cemented carbide dies for punching stamping cold heading molds
Size outer diamter: ∅2-∅380mm
        inside diameter: φ1-∅360mm
        length: 1-200mm

The whole die set must be able to withstand the radial pressure during the operations to hold the tolerances in the horizontal cross-section of the component to be formed .

The die (carbide die inserts and punches ) experiences impact and sliding wear and quite often sees abrasive wear patterns during progressive stamping ,especially on thicker components ,It also sees adhesive wear through friction because of the metal-metal motion of the top punch sections when leaving the ides

Therefore,tools should effectively resist wear ,corrosion,galling and impact .So we create our new grade for tungsten carbide dies .,it will increase 2-9 times of the lifetime of molds with superior corrosion resistance ,superior toughness and anti-galling characteristics

Bolts&nibs,Nut forming dies,non standard dies
Homogeneous property,good wear resistance ,high impact resistance
Application :
Mould and die industry ,such as cold heading dies,powder metallurgy dies and all kinds of hardware forging dies,etc
Company information
Located in zhuzhou city,hunan province--the gungsten carbide base of China,zhuzhou mingri cemented carbide co. ltd .was established in May,2001 with the investment of 10 million dollars area of 33300 ㎡.With up-to-date production line ,advanced equipments,professional technicians and experts with national awards  as the full time consultants,we have obtained 35 patents in invention,utility model and design,We have also passed ISO9001:2015 Certification in quality and ISO9001:14001 Certification in environment ,In recent years ,our capacity,quality and service have beeen further greatly improved due to plant expansion,introducion of advanced technologies and equipments at home and abroad and applicaition of 6S management.
1, tungsten carbide die use puching and stamping machine parts
2, tungsten carbide die use for drawing steel tubes and rods
3, tungsten carbide die ues for impact-resistant forging die, hot forging die and finished rollers
4, also use for nut wear resistant or impact resistant dies
5, use for nut forming die and high impact-resistant die
6, use for punching dies
Our Advantages:
1. Retain size within required tolerance

2. Galling resistance improves surface finish

3. Minimizes breakage and extends wear life

4. Provides an advantage in reduced manufacturing costs


How do we recommend or create a grade for a specific application such as stamping ?


Grade Density
Properties & Applications Approx Grades in China
YM20 13.5 2800 85.5 It is suitable for manufacturing punching dies for watch parts, leaf spring of musical instruments, battery jars, small sized steel balls, screws, screw caps, etc. YG20
ML32 13.9 2750 85.5 It is suitable for impact-resistantance forging dies. YG16C
ML36 13.7 2800 84.5 It is suitable for impact-resistant forging dies, hot-forging dies and finishing rollers. YG18C
ML40 13.5 2850 83.5 It is suitable for wear resistant or impact resistant dies. YG20C ZL40.2
ML50 13.3 2900 83.0 It is suitable for nut forming dies and high impact-resistantance dies.               YG22C ZL40.5
ML60 13.1 2950 82.5 It is suitable for stainless screw dies and semifinishing rollers. YG25C ZL40B
ML100 13.1 3050 83.4 It is suitable for screw cap forming dies with high strength ( highest impact-resistant forging dies). YG25C GT55
Other grades of cemented carbide blanks for cold-forging dies may be offered by customers' requirements

Including but not limited to the following types.

YG25C Tungsten Carbide Die for Cold Heading / Cold Forging

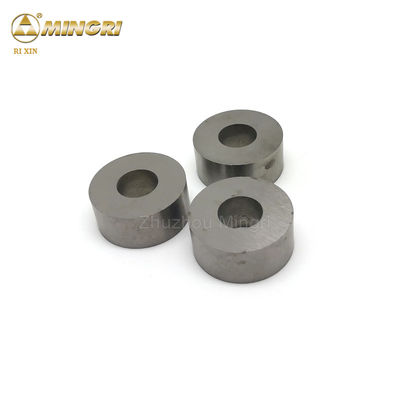

Cemented Tungsten Carbide Die For Punching Stamping Cold Heading Molds 1
Why choose us?
1. Zhuzhou Mingri has the richest molds stock of  all kinds of cold and hot punching dies.
2. With stable relationship with our customers.
3. The most advanced tooling warehouse.
4. The largest production capacity and fastest delivery .
5. The most reliable testing machines for all specifications.
6. The best and reliable after service.
