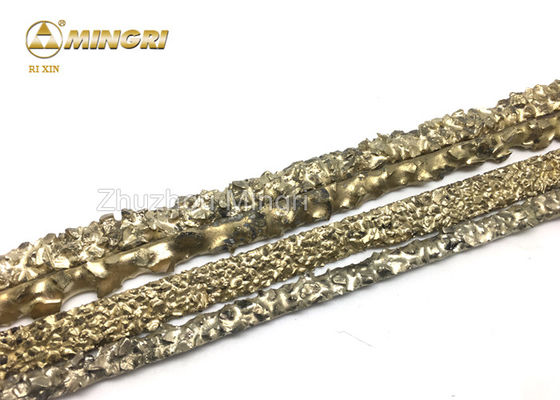

Tungsten Cemented Carbide Composite Rod , Carbide Welding Rod Use In Endmill
Product Details:
| Place of Origin: | China |
| Brand Name: | Rixin |
| Certification: | CE ROHS UL ISO |
| Model Number: | K20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1KG |
|---|---|
| Packaging Details: | Cartons |
| Delivery Time: | 7-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50+tons+per month |
|
Detail Information |
|||
| Keyword: | Tungsten Carbide Composite Rod | Material: | 100% Raw Material |
|---|---|---|---|
| Usage: | Used In Endmill | Component: | WC+CO |
| Tolerance: | As Per Your Requirment | Product Name: | Tungsten Carbide Composite Rod |
| High Light: | Cemented carbide rods,solid carbide rods |
||
Product Description
Tungsten Cemented Carbide Composite Rod , Carbide Welding Rod Use In Endmill
Specification of carbide composite welding rod
| Grade | Chemical composition | ||
| Cu+Zn+Sn | WC | Co | |
| Cu-40 | 40±2 | 53-56 | 4.6-4.8 |
| Cu-45 | 45±2 | 48-52 | 4.2-4.5 |
| Cu-50 | 50±2 | 44-48 | 3.8-4.2 |
| Grade | Chemical composition | ||
| Ni+Zn+Sn | WC | Co | |
| Ni-40 | 40±2 | 53-57 | 4.6-5.0 |
| Ni-45 | 45±2 | 49-52 | 4.2-4.5 |
| Ni-50 | 50±2 | 44-48 | 3.8-4.1 |
Production of carbide composite welding rod
(1) clean up the workpiece, make the welding workpieces surface with metallic luster.
(2) the flat position of welding, therefore can use the appropriate clamping fixture for control of surfacing layer thickness
(3) with a neutral flame preheating, flame core not contact surface, the distance to 25 mm is advisable.
(4) carbide surfacing welding layer.With YD type electrode surfacing, the use of neutral flame (can be slightly carbonizing flame) tip is steady on the workpiece surface movement, the flame of the alloy electrode heating (be careful not to make flame cone tip contact alloy particles), tire body in the electrode alloy melt, carbide particles are also falling.Before the tire body of molten metal solidification, the particles arrange, can use left hand of the alloy electrode fingers, or another person holding a base electrode or pull rod on graphite rod in a quick stir particles, making them evenly aligned neatly.Surfacing layer thickness control according to the requirements of design.
(5) after the workpiece welding, where no ventilation, slow cooling, cannot quench, conditional usable asbestos blanket cover.
(6) the workpiece after cooling to room temperature, if necessary, grinding surface surfacing to required size and shape.
(7) clean up the workpiece, remove all splash, slag, etc.
Application of carbide composite welding rod
1, carbide composite welding rod is mainly used for surfacing welding the oil, mining, coal mining ect.
2, and used for other industries in some serious wear and tear or artifacts of both cutting.
2, such as: milling shoes, grinding, centralizer, reamer, drill pipe joints, hydraulic cutter, scraper, plough planer knives, core bit, piling drill, twist drill, etc.
