High Strength Hot Pressing Punch And Die , Punch Press Dies Long Life Time
Product Details:
Place of Origin: | ZHUZHOU,HUNAN,CHINA |
Brand Name: | RI XIN |
Certification: | ISO9001:2008 ISO14001:2004 |
Model Number: | rixin-1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 KG |
---|---|
Price: | Price varies according to the grade,weight and size |
Packaging Details: | First in small cartons filled with cotton, then in bigger cartons. |
Delivery Time: | 7-20 business days |
Payment Terms: | D/A, L/C, D/P, T/T, Western Union |
Supply Ability: | 50 Tons per month |
Detail Information |
|||
Grades: | YG11,YG15,YG20,YG16C,YG18C,YG20C,YG22C,YG25C,GT55 | Material: | Tungsten ,Cobalt |
---|---|---|---|
Application: | Cold Heading Die,Cold Forging Die,Nut Forming Dies,Flow Restrictor Etc. | Surface Treatment: | Grinding,Sand-blasting,Polishing |
Density: | 13.1-14.4 | HRA: | 81.5-88.5 |
Strength: | 3200 | Key Word: | Cemented Carbide Nib Pellets |
High Light: | tungsten carbide tools,tungsten carbide tooling,Hot Pressing Punch And Die |
Product Description

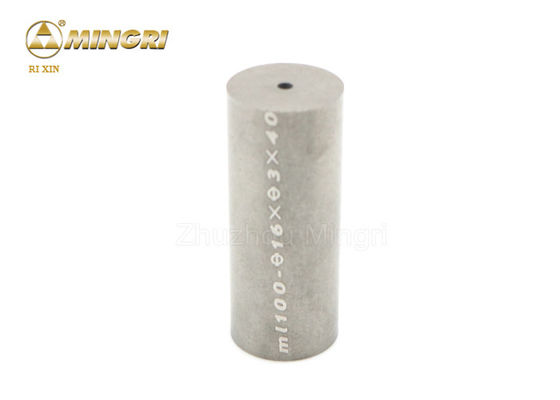

tungsten carbide hot pressing punching dies with long lifetime
Description:
Size outer diamter: ∅2-∅380mm
inside diameter: φ1-∅360mm
length: 1-200mm
Bolts&nibs,Nut forming dies,non standard dies
Characteristics:
Homogeneous property,good wear resistance ,high impact resistance
Application :
Mould and die industry ,such as cold heading dies,powder metallurgy dies and all kinds of hardware forging dies,etc
Company information
Zhuzhou Mingri Tungsten Carbide Co., Ltd. was established in May of 2001 with the investment of RMB 40 million. We have up-to-date production machine line and a lot of technicians.
Zhuzhou MingRi Cemented carbide co.,ltd is located in the tungsten carbide hometown , convenient transportation, from changsha airport just 40 minutes, wuhan just 1.5 hour, from guangzhou just 2 hours. A favorable peripheral environment for cemented carbide manufacturing provides a natural barrier. Convenient traffic for tomorrow's internationalization laid a wide road.
Applications:
Tungsten carbide pellets are widely used in cold heading,forging,stamping and punching dies for maufacturing nuts, screw caps, bolts, cans and many other products.
Our Advantages:
1, Focusing on manufacturing tungsten carbide products over 19 years.
2, Specialist manufacturer equipped with advanced processing machines and over160 technicians.
3, Over 50 tons/month productivity to assure sustainable supply of products
4, Owing mould workshop to design & produce moulds for nonstandard products, and with mould
stocks over 10 thousand sets for different products.
5, Full ability to accept OEM & ODM orders.
6, Stringent quality control and quality consistency.
7, Professional mechanical & chemical inspecting labs to control the quality of raw material and inspect physical & mechanical properties of finished products.
Grade:
Grade | Density g/cm3 |
T.R.S MPα |
Hardness HRA |
Properties & Applications | Approx Grades in China |
A | 13.5 | 3000 | 83.5 | Good wear resistance and bending strength. It is often preferrd by nut forming dies and high impact-resistant dies. | — |
YM11 | 14.4 | 2420 | 88.5 | Forming or stamping dies for metal powders and non-metal powders. | YG11 |
YM15 | 14.0 | 2500 | 87.5 | It is suitable for drawing steel tubes and rods under high compression ratio, manufactuing upsetting, punching and forging tools under large stress. | YG15 |
YM20 | 13.5 | 2800 | 85.5 | It is suitable for manufacturing punching dies for watch parts, leaf spring of musical instruments, battery jars, small sized steel balls, screws, screw caps, etc. | YG20 |
ML32 | 13.9 | 2750 | 85.5 | It is suitable for impact-resistantance forging dies. | YG16C |
ML36 | 13.7 | 2800 | 84.5 | It is suitable for impact-resistant forging dies, hot-forging dies and finishing rollers. | YG18C |
ML40 | 13.5 | 2850 | 83.5 | It is suitable for wear resistant or impact resistant dies. | YG20C ZL40.2 |
ML50 | 13.3 | 2900 | 83.0 | It is suitable for nut forming dies and high impact-resistantance dies. | YG22C ZL40.5 |
ML60 | 13.1 | 2950 | 82.5 | It is suitable for stainless screw dies and semifinishing rollers. | YG25C ZL40B |
ML100 | 13.1 | 3050 | 83.4 | It is suitable for screw cap forming dies with high strength ( highest impact-resistant forging dies). | YG25C GT55 |
Other grades of cemented carbide blanks for cold-forging dies may be offered by customers' requirements |
Specifications:
Including but not limited to the following types.
Why choose us?
1.Zhuzhou Mingri has the richest molds stock of all kinds of cold and hot punching dies.
2.With stable relationship with our customers.
3.The most advanced tooling warehouse.
4.The largest production capacity and fastest delivery .
5.The most reliable testing machines for all specifications.
6.The best and reliable after service.
