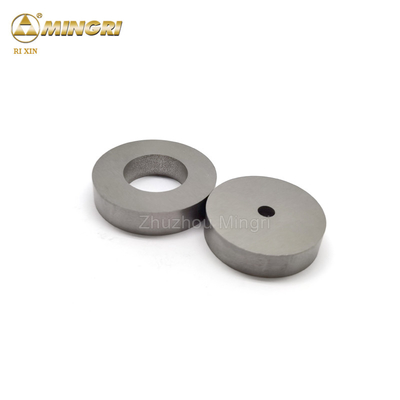

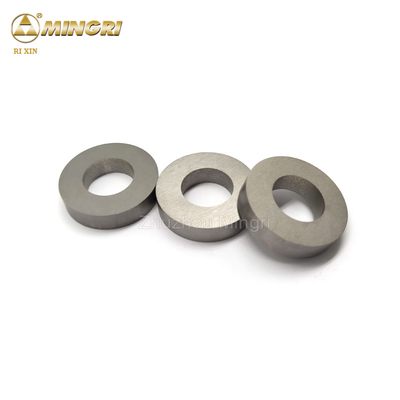

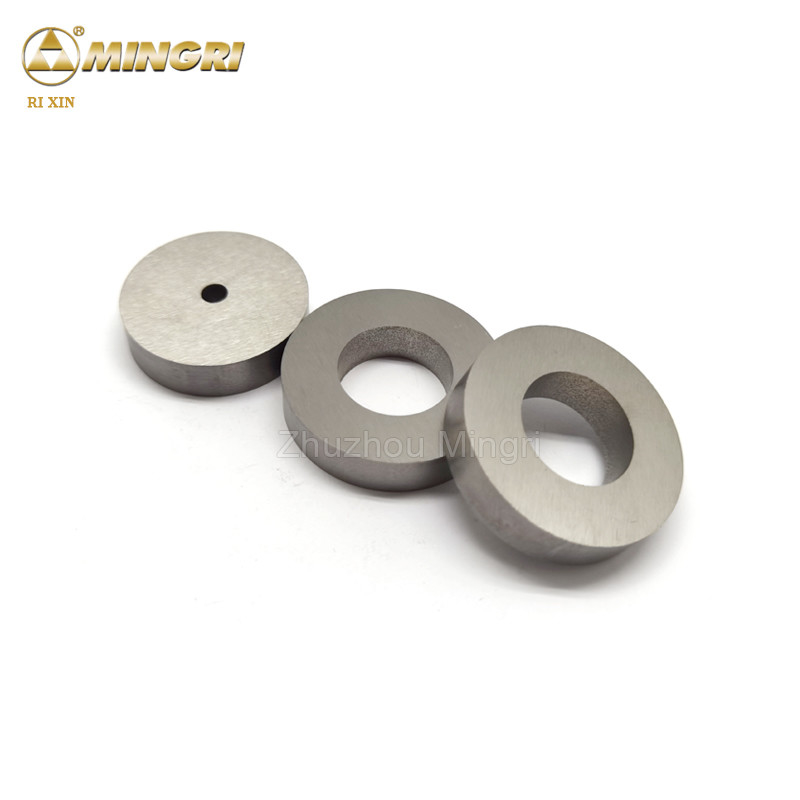

Punching / Stamping Tools Tungsten Carbide Pellets Carbide Cold Heading Die
Specification of carbide cold heading die
1. Size: We have hundreds of moudles available now.Different sizes offered.
2. High wear&corrosion&abrasive resistance.
3. Advanced producing equipment.
4. ISO9001:2008,ISO9001:14001 certificated.
5. YG11 YG15 YG20 YG16C YG18C YG20C YG22C YG25C YG25 grades available.
6. Types: dies for punching,stamping,screw, bolts,nibs and non-standard dies.
Application of carbide cold heading die
The tcarbide cold heading die are used for cold punching and heading of srews and nuts, with high wear resistance and high toughness. Also, it is the ideal material in making non-ferrous metal, ferrous metal and other alloy.
Decription of carbide cold heading die
carbide cold heading die area is one of the main applications of tungsten carbide material. carbide cold heading die usually can be divided into punching die and bushing die , used in cold heading, warm heading and hot heading technology situation.
carbide cold heading die is a process technology which make the work piece transformation and the shape close to the finished product to the utmost extent in few processes. It is the milestone of modern mechining and automobile industry.
Why we need carbide cold heading die?
carbide cold heading die improves the products'structure.
|Grade||Density g/cm3||Hardness HRA||T.R.S MPa||Performance&application recommended|
|YG11||14.4||88.5||2420||Forming or stamping dies for metal powders and nonmetal powders|
|YG15||14||87||3000||It is suitable for drawing steel tubes and rods under high compression ratio,manufacturing upsetting,punching and stamping tools under large stress|
|YG20||13.5||85.5||2800||It is suitable for manufacturing punching dies for watch parts,leaf spring of musical instrument,battery jars,small sized steel balls,screws,screw caps,etc|
|YG16C||13.9||85||2750||It is suitable for impact-resistant forging dies|
|YG18C||13.7||84||2800||It is suitable for impact-resistant forging dies,hot-forging dies and finishing rollers|
|Other grades and sizes can be offered as per customers' requirements|
Production of carbide cold heading die
1, Soon after the order is confirmed, carbide cold heading die products will start to prepare the RTP powder as per customer’s requirement with our wet-grinding machine
2, Before mass production, we need to do a trial pressing and sintering using every mould, and we check the appearances and the sizes of the samples with micrometer, projectors etc. to ensure that the requirements of the drawings can be met before batch production
3, Bulk production ,press the raw materials to shape blanks,and all carbide cold heading die blanks must be passed by semi finished inspection,
4, Then sinter blanks to finish (HIP) and finished products inspection, we have 10 sets of vacuum sintering furnace and 2 sets of HIP in the factory ensure the best quality and production capacity.
5, 1). cleaning/tumbling is to make the carbide cold heading die look more beautiful.
2).The carbide cold heading die can be ground according to customers’ order to a tolerance of +/-0.05
Packing and delivery of carbide cold heading die
step 1, wrapped carbide cold heading die in paper to avoid carbide cold heading die to broke
step 2, put the carbide cold heading dies in inner small carton box
step 3, put the inner box into outter carton and fill the carton with foamed plastic
step 4, wrap the carton with packaging tape
step 5, you can choose any delivery way such as DHL,TNT,UPS ect.
Our exhibition of carbide cold heading die
18 years of manufacturering and exporting experience for overseas customers
