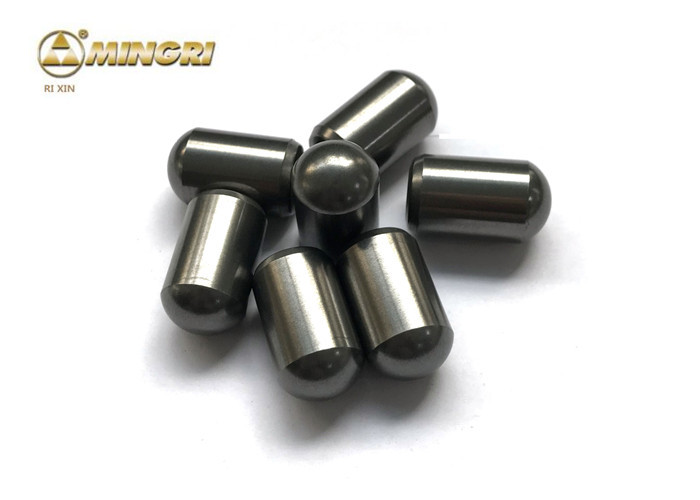

    Grade MK6 Tungsten Cemented Carbide Buttons , DTH Carbide Button Bit for Mining

    Product Details:

    Place of Origin: China
    Brand Name: Rixin
    Certification: CE ROHS UL ISO
    Model Number: MK6

    Payment & Shipping Terms:

    Minimum Order Quantity: 5KG
    Price: USD+65~32+10kg~60kg
    Packaging Details: Cartons
    Delivery Time: 5-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 50+tons+per month
    Get Best Price Contact Now

    Detail Information

    Keyword: Cemented Carbide Buttons Material: 100% Raw Material
    Usage: Mining Tools Place Of Origin: Hunan, China(Mainland)
    Product Name: Cemented Carbide Buttons Surface: Finished
    Tolerance: Customized Density: 14.9 G/cm3
    Hardness: 90.5 HRA T.R.S: 2600 MPa
    High Light:

    carbide button bit

    ,

    cemented carbide buttons

    Product Description

    Grade MK6 Tungsten Cemented Carbide Buttons , DTH Carbide Button Bit for Mining

    Grade MK6 Tungsten Cemented Carbide Buttons , DTH Carbide Button Bit for Mining





    Advantage of tungsten carbide button



    Our durable carbide with excellent fracture resistance dramatically improve tool life with high penetration rates. The consistent performance and tolerance are mainly attributed to our pure raw materials and strict ISO quality control.

    All of our carbide mining tips and inserts are made from virgin raw materials and HIP sintered for the top good quality and high performance.

    Various sizes and styles are available here and we can also make the tips in any new design and sizes to meet our customers' requirement.



    Tungsten carbide tips, inserts, buttons, wear parts for mining, rock drilling, oil exploration, geological prospecting, road digging, snow plowing and construction engineering,we all can provide.







    Desciption of tungsten carbide button



    Grade Density g/cm3 Hardness HRA

    T.R.S MPa

    Performance&application recommend
    MK4 15.1 90.0 1800



    mainly used as small buttons for percussion bits to cut soft and medium hard formations



    MK6 14.9 90.5 2600



    for coring crowns,electric coal drill bits,coal cutting picks,oil cone bits and scraping knife bits,used in geological prospecting,coal mining and oil well boring









    Grade MK6 Tungsten Cemented Carbide Buttons , DTH Carbide Button Bit for Mining 0







    TYPE D H SR

    β°

    SQ0610 6.25 9.9 3.4 20

    26.5

    SQ0812 8.25 12.2 4.4 20 26.5
    SQ0914 9.25 13.9 5.0 20 26.5
    SQ1019 10.25 18.9 5.5 20 27
    SQ1119 11.30 19.0 6.0 20 27







    Application of carbide button



    Cemented carbide button bits is widely used in petroleum drilling, snow plow equipment, cutting tools, mining machinery, road maintenance and coal drilling tools.It is also can used as excavating tools for Tunneling, quarrying, mining and Construction. In addition, it can be applied as drill accessories for rock drilling machine and deep hole-drilling tools.

    timg (7)_.jpg



    Production process of cemented carbide button



    1, Soon after the order is confirmed, cemented carbide button products will start to prepare the RTP powder as per customer’s requirement with our wet-grinding machine

    2, Before mass production, we need to do a trial pressing and sintering using every mould, and we check the appearances and the sizes of the samples with micrometer, projectors etc. to ensure that the requirements of the drawings can be met before batch production

    3, Bulk production ,press the raw materials to shape blanks,and all cemented carbide button blanks must be passed by semi finished inspection,


    4, Then sinter blanks to finish (HIP) and finished products inspection, we have 10 sets of vacuum sintering furnace and 2 sets of HIP in the factory ensure the best quality and production capacity.



    5, 1). cleaning/tumbling is to make the cemented carbide button look more beautiful.
    2).The cemented carbide button can be ground according to customers’ order to a tolerance of +/-0.05







    company information



    zhuzhou Mingri Tungsten Carbide Co., Ltd. was established in May of 2001 with the investment of RMB 40 million. We have up-to-date production machine line and a lot of technicians.



    Zhuzhou MingRi Cemented carbide co.,ltd is located in the tungsten carbide hometown , convenient transportation, from changsha airport just 40 minutes, wuhan just 1.5 hour, from guangzhou just 2 hours.



    A favorable peripheral environment for cemented carbide manufacturing provides a natural barrier. Convenient traffic for tomorrow's internationalization laid a wide road.









    FAQ



    Q1. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

    Q2. What is your terms of payment?
    A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

    Q3. What is your terms of delivery?
    A: EXW, FOB, CFR, CIF, DDU.

    Q4. How about your delivery time?
    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery
