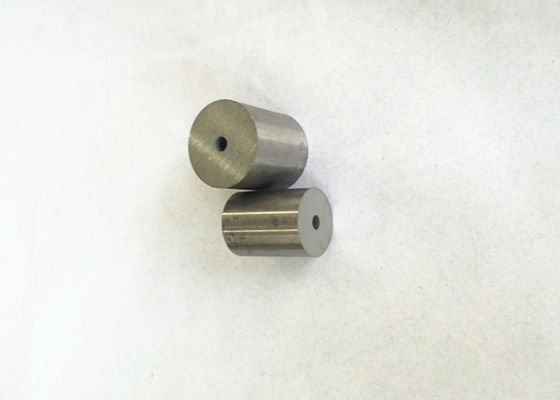

High hardness Cold heading dies, Tungsten carbide dies,YG11,YG15,WC,Cobalt
Product Details:
| Place of Origin: | ZHUZHOU,HUNAN,CHINA |
| Brand Name: | RI XIN |
| Certification: | SO9001:2008 ISO14001:2004 |
| Model Number: | YG11,YG15,YG20,YG16C,YG18C,YG20C,YG22C,YG25C,GT55 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KG |
|---|---|
| Price: | Price varies according to the grade,weight and size |
| Packaging Details: | First in small cartons filled with cotton, then in bigger cartons.Or wood carton recommended |
| Delivery Time: | 7-20 days according to the products |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 50 Tons per month |
|
Detail Information |
|||
| Features: | High Hardness,Good Wear Resistance,High Impact Resistance | Grades: | YG11,YG15,YG20,YG16C,YG18C,YG20C,YG22C,YG25C,GT55 |
|---|---|---|---|
| Material: | Tungsten ,Cobalt | Application: | Cold Heading/forging Die,Valve Seat,Flow Restrictor Etc. |
| Finished: | Grounded,Ungrounded,Sand-blasted,Polished | Size: | Customizable |
| Service: | ODM,OEM | ||
| High Light: | tungsten carbide tools,tungsten carbide pellets |
||
Product Description
YG11,YG15,YG20,YG16C,YG18C,YG20C,YG22C,YG25C,GT55 TUNGSTEN CARBIDE FOR COLD HEADING /COLD FORGING DIES.
Customers can choose the grade and decide the size of moulds.
Description:
1.Widely used for cold heading dies and forging dies.
2.We also can make nonstandard sizes of carbide pellets based on customer request.
3.All carbide pellets are strictly inspected by ultrasonic flaw detector to avoid blowholes or cracks to ensure the quality.
4.Material:100%Virgin material with submicron grain size.
5.High wear resistance,high hardness and impact toughness.
6.Precision grinding and polishing.
Applications:
Cemented carbide pellets are widely used in cold heading,forging,stamping and punching dies for maufacturing nuts, screw caps, bolts, cans and many other products.
Our Advantages:
1.Strong R&D team. Professional engineers serve for clients, recommending product and grades as per your applications. We also offer after-sale service.
2.Strong Mould R&D team. We support product customization as per requirements, and ensure high working efficiency and product quality.
3.Successful cooperate case: We cooperate with clients in domestic and abroad, and get good feedback from them.
Grade:
| Grade | Density g/cm3 |
T.R.S MPα |
Hardness HRA |
Properties & Applications | Approx Grades in China |
| A | 13.5 | 3000 | 83.5 | Good wear resistance and bending strength. It is often preferrd by nut forming dies and high impact-resistant dies. | — |
| YM11 | 14.4 | 2420 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | YG11 |
| YM15 | 14.0 | 2500 | 87.5 | It is suitable for drawing steel tubes and rods under high compression ratio, manufactuing upsetting, punching and forging tools under large stress. | YG15 |
| YM20 | 13.5 | 2800 | 85.5 | It is suitable for manufacturing punching dies for watch parts, leaf spring of musical instruments, battery jars, small sized steel balls, screws, screw caps, etc. | YG20 |
| ML32 | 13.9 | 2750 | 85.5 | It is suitable for impact-resistant forging dies. | YG16C |
| ML36 | 13.7 | 2800 | 84.5 | It is suitable for impact-resistant forging dies, hot-forging dies and finishing rollers. | YG18C |
| ML40 | 13.5 | 2850 | 83.5 | It is suitable for wear resistant or impact resistant dies. | YG20C ZL40.2 |
| ML50 | 13.3 | 2900 | 83.0 | It is suitable for nut forming dies and high impact-resistant dies. | YG22C ZL40.5 |
| ML60 | 13.1 | 2950 | 82.5 | It is suitable for stainless screw dies and semifinishing rollers. | YG25C ZL40B |
| ML80 | 13.1 | 3050 | 83.4 | It is suitable for screw cap forming dies with high strength ( highest impact-resistant forging dies). | YG25C GT55 |
| Other grades of cemented carbide blanks for cold-forging dies may be offered by customers' requirements | |||||
Specifications:
Including but not limited to the following types.
Type |
Dinension |
Appllcable |
|||
| d | D | L Range of L |
|||
| BDP00710- | 0.7 | 10 | 12.0-20.0 | M1 | |
| BDP01010- | 1.0 | 10 | 12.0-20.0 | M1.5-M2 | |
| BDP01013- | 1.0 | 13 | 15.0-40.0 | M1.5-M2 | |
| BDP01213- | 1.2 | 13 | 15.0-40.0 | M1.5-M2 | |
| BDP01510- | 1.5 | 10 | 12.0-25.0 | M2 | |
| BDP01516- | 1.5 | 16 | 15.0-45.0 | M2 | |
| BDP01813- | 1.8 | 13 | 12.0-45.0 | M2.5 | |
| BDP01816- | 1.8 | 16 | 20.0-45.0 | M2.5 | |
| BDP02113- | 2.1 | 13 | 15.0-30.0 | M3 | |
| BDP02116- | 2.1 | 16 | 25.0-45.0 | M3 | |
| BDP02316- | 2.3 | 16 | 15.0-45.0 | M3 | |
| BDP02522- | 2.5 | 22 | 20.0-60.0 | M3 | |
| BDP02813- | 2.8 | 13 | 15.0-30.0 | M4 | |
| BDP02816- | 2.8 | 16 | 25.0-40.0 | M4 | |
| BDP02818- | 2.8 | 18 | 20.0-50.0 | M4 | |
| BDP02820- | 2.8 | 20 | 20.0-50.0 | M4 | |
| BDP02822- | 2.8 | 22 | 20.0-60.0 | M4 | |
| BDP02825- | 2.8 | 25 | 20.0-60.0 | M4 | |
| BDP03216- | 3.2 | 16 | 15.0-45.0 | M4 | |
| BDP03218- | 3.2 | 18 | 15.0-50.0 | M4 | |
| BDP03616- | 3.6 | 16 | 20.0-50.0 | M5 | |
| BDP03618- | 3.6 | 18 | 20.0-60.0 | M5 | |
| BDP03822- | 3.8 | 22 | 20.0-40.0 | M5 | |
| BDP03830- | 3.8 | 30 | 50.0-60.0 | M5 | |
