90.5 HRA Tungsten Carbide Brazed Tips YT5 / P30 Model C 2200 MPa

China 90.5 HRA Tungsten Carbide Brazed Tips YT5 / P30 Model C 2200 MPa supplier

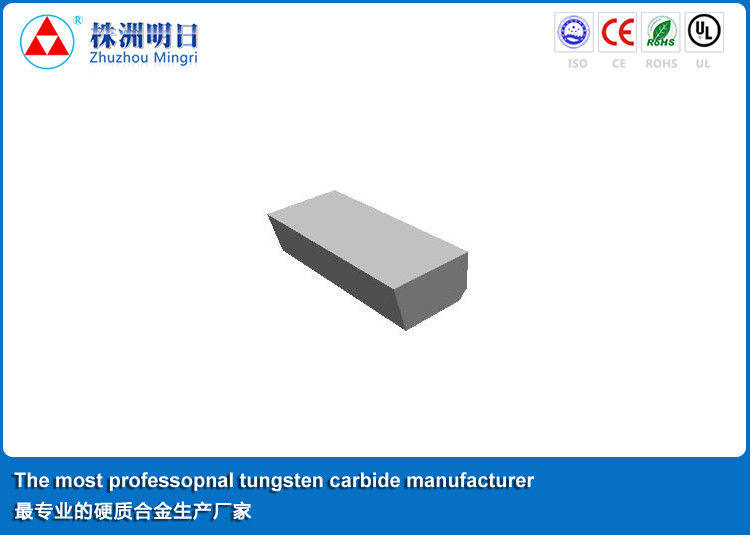

Large Image :  90.5 HRA Tungsten Carbide Brazed Tips YT5 / P30 Model C 2200 MPa

Product Details:

Place of Origin: CHINA
Brand Name: Rixin
Certification: ISO9001:2008
Model Number: Model C

Payment & Shipping Terms:

Minimum Order Quantity: 10KG
Price: $ 45.00-65.00USD per kilogram
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing.
Delivery Time: 7-20 days depending on the quantity
Supply Ability: 30 tons per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide, Cobalt Product Name: Welding Blades Model C
Application: Cutting Tools Size: Standard
Grade: YT5/P30 ,K05-K20,P10-P30 Hardness: 90.5 HRA
T.R.S: 2200 MPa Density: 12.9 G/cm³

90.5 HRA Tungsten Carbide Brazed Tips YT5 / P30 Model C 2200 MPa

Description:


1, Used for steel, stainless steel, cast steel and cast iron cutting and processing.
2, Good toughness
3, Superior wear resistance & high strength
4, A comprehensive range of types with molds
5, Short deliver period,with some types always in stock
6, Full-automatic press machine,which brings stable quality and high efficiency

Specifications:


90.5 HRA Tungsten Carbide Brazed Tips YT5 / P30 Model C 2200 MPa

Type C unit:mm
Type Dimensions (mm)
L t S
C5 5 3 2 -
C6 6 4 2.5 -
C8 8 5 3 -
C10 10 6 4 18
C12 12 8 5 18
C16 16 10 6 18
C20 20 12 7 18
C25 25 14 8 18
C32 32 18 10 18
C40 40 22 12 18
C50 50 25 14 18

90.5 HRA Tungsten Carbide Brazed Tips YT5 / P30 Model C 2200 MPa



Applications:



Grade

   ISO

 Code

Density Hardness T.R.S Applications recommended
g/cm3 HRA MPa
YM3 K05 15.1 92 1400 Suitable for finishing of cast iron and nonferrous metal.
YM6X K10 14.95 91.5 1800

The finishing & semi-finishing of cast iron and nonferrous metals
 and also for the machining of manganese steel and hardening steel.

YM6 K15 14.95 90.5 1900

Suitable for the roughing of cast iron and light alloys
and also for the milling of cast iron and low-alloy steel.

YM8 K20 14.8 89.5 2200
YW1 M10 13.1 91.6 1600

Suitable for finishing and semi-finishing of stainless
 steel and conventional alloy steel.

YW2 M20 13 90.6 1800

The grade can be used for the semi-finishing of stainless steel
and low-alloy steel and it is mainly used for the machining of
railway wheel hubs.

YT15 P10 11.4 91.5 1600

Suitable for the finishing and semi-finishing for steel and
cast steel with a moderate feed rate and rather high cutting speed.

YT14 P20 11.6 90.8 1700 Suitable for the finishing and semi-finishing of steel and cast steel.
YT5 P30 12.9 90.5 2200

Suitable for the heavy duty rough turning of and cast
 steel with a big feed rate at a medium and low speed
under unfavorable working conditions.
