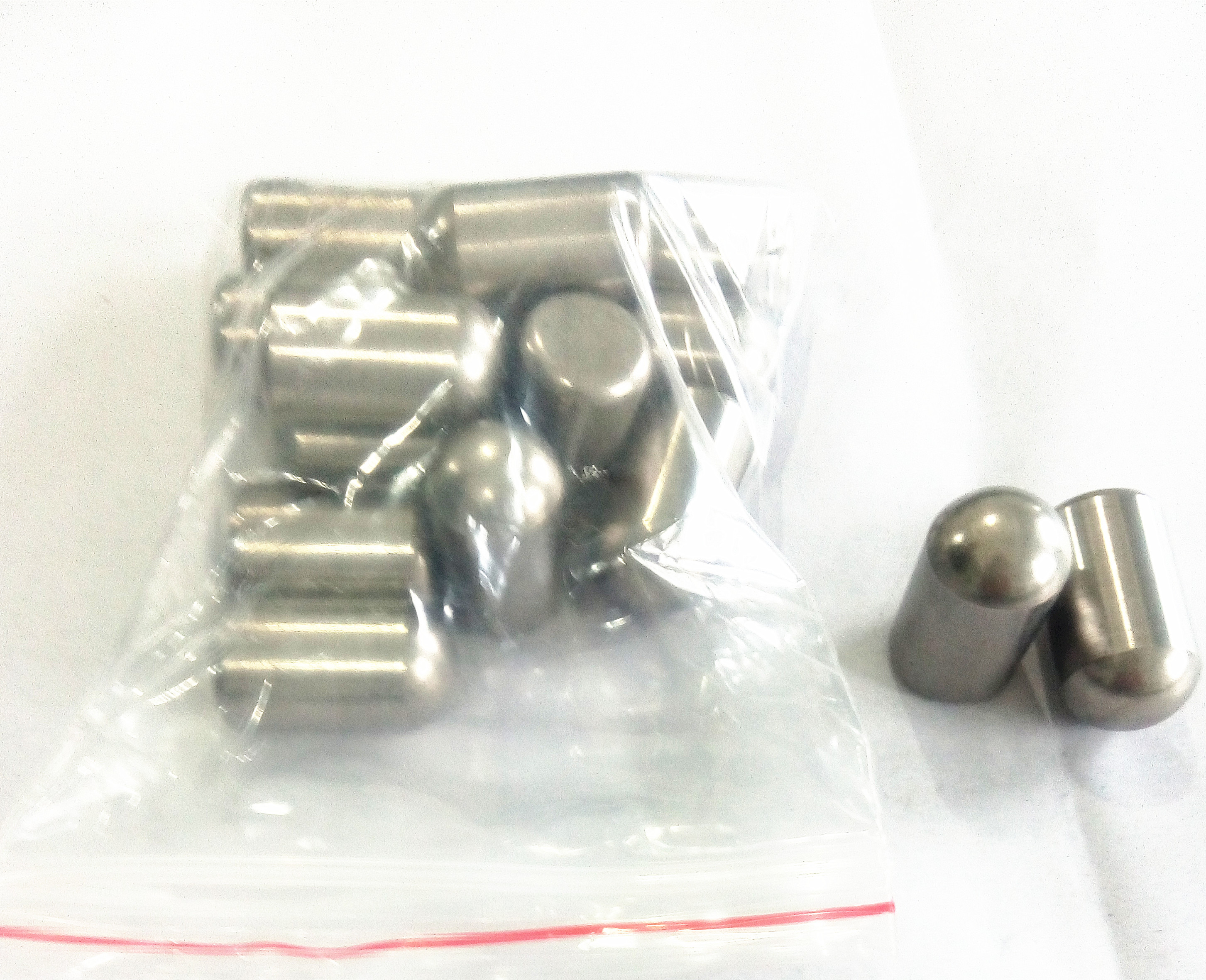

    Oil Cone Drill Bits Carbide Button Bit Fit Medium Soft And Medium Hard Rocks

    Product Details:

    Place of Origin: china
    Brand Name: Ri Xin
    Certification: ISO9001:2008 ISO14001:2004
    Model Number: Various

    Payment & Shipping Terms:

    Minimum Order Quantity: 5KG
    Packaging Details: First in small cartons filled with cotton, then in bigger cartons.
    Delivery Time: 7-20 days depending on the quantity
    Supply Ability: 30TON PER MONTH
    Get Best Price Contact Now

    Detail Information

    Product Name: YG6 YK05 YG8 YG8C YG11C Tungsten Carbide Button Insert For Oil-field Drill Bits Material: Tungsten Carbide, Cemented Carbide, Hard Metal, TC,
    Grade: YG6, YG8, YG8C, YG11C Grain Size: Medium Or Coarse
    Type: Buttons, Cap Tips, Auger Tips Surface: Unground Or Ground
    Application: Button Bits
    High Light:

    carbide button bit

    ,

    tungsten carbide tips

    Product Description

    Oil Cone Drill Bits Carbide Button Bit Fit Medium Soft And Medium Hard Rocks

    YG6 YK05 YG8 YG8C YG11C Tungsten Carbide Button Insert for oil-field drill bits





    1. Description:

    YG15C  For oil cone drill bits, for medium soft and medium-hard rocks.



    Our advantage of making tungsten carbide button bits is that we are using HIP sintering for minimizing the

     porosity of carbide blank for increasing the transverse rupture strength (TRS). It is very suitable for high

     quality requirement for making carbide buttons to be used in high and medium pressure DTH Drilling. As

    its unique working performance, tungsten carbide button bits are widely applied to oil filed drilling and snow

     removal, snow plough machines or equipments.

    --Dimension: diameter from 8-22mm, length from 10-30mm;

    --HIP sintering;

    --ground and unground;



    2. Grade and Applications:



    Grades

    Density

    g/cm³

    T.R.S

    Mp α

    Hardness

    HRA

    Performance &application recommended

    Approx grades in China

    MK4

    15.1

    1800

    90.0

    Mainly used as small buttons for percussion bits to cut soft and medium hard formations.

    YG4C

    MK6

    14.9

    2100

    90.0

    For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.

    YG6

    MK8

    14.7

    2400

    89.5

    For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.

    YG8

    MK10

    14.7

    2450

    88.5

    Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.

    YG8C

    MK15

    14.6

    2450

    87.8

    Suitable for strips, conical buttons for rotary percussion drill bits, geological prospecting buttons, cut soft and medium hard formations.

    YK15

    YG9C

    MK20

    14.4

    2550

    87.0

    Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.

    YK20

    YG10C

    MK25

    14.5

    2600

    87.5

    Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.

    YK25

    MK30

    14.4

    2600

    87.0

    Largely used for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard and very hard formations.

    YG11C

    MK40

    14.2

    2650

    86.5

    Mainly used for the buttons of tricone bits, and inserts of rotary percussion bits to cut hard and very hard formations.

    YK40

    YG13C

    MK50

    14.0

    2700

    86.5

    For oil cone drill bits, for medium soft and medium-hard rocks.

    YG15C

    MK60

    14.0

    2500

    87.5

    Good strength and less wear resistance, for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks.

    YG15



    3. Size and drawing:



    Oil Cone Drill Bits Carbide Button Bit Fit Medium Soft And Medium Hard Rocks 0



    Dimension

    D

    H

    SR

    α.

    β.

    6.25

    9.9

    3.4

    20

    26.5

    8.25

    12.2

    4.4

    20

    26.5

    9.25

    13.9

    5.0

    20

    26.5

    10.25

    18.9

    5.5

    20

    27

    11.30

    19.0

    6.0

    20

    27

    12.35

    20.9

    6.6

    20

    28

    12.35

    20.0

    6.3

    25

    24.75

    13.35

    19.9

    7.0

    20

    27

    14.35

    22.1

    7.7

    20

    16

    14.35

    24.0

    7.34

    25

    25

    16.35

    24.9

    8.8

    20

    16

    19.35

    30.4

    9.76

    20

    30

    21.65

    31.9

    11.8

    20

    30



    Oil Cone Drill Bits Carbide Button Bit Fit Medium Soft And Medium Hard Rocks 1



    Dimension

    D

    H

    SR

    e

    α.

    8.25

    10.0

    4.4

    1.5

    18

    8.25

    12.0

    4.4

    1.5

    18

    18.25

    27.1

    9.2

    1.5

    18

    8.25

    12.2

    4.4

    0.7

    30

    9.25

    14.9

    5.0

    0.7

    30

    10.25

    13.0

    5.5

    0.7

    30

    11.30

    14.0

    6.0

    0.7

    30

    12.35

    16.0

    6.6

    0.7

    30

    13.35

    18.0

    7.0

    0.7

    30

    14.35

    18.1

    7.7

    0.7

    30

    16.35

    24.6

    8.8

    0.7

    30

    20.45

    30.0

    11.5

    0.7

    30

    22.45

    30.0

    12.0

    0.7

    30



    Oil Cone Drill Bits Carbide Button Bit Fit Medium Soft And Medium Hard Rocks 2



    Dimension

    D

    H

    SR

    e

    α.

    13.35

    13.5

    7.0

    1.5

    18

    13.35

    19.9

    7.0

    1.5

    18

    14.35

    20.0

    7.2

    3.0

    18

    14.35

    15.0

    7.5

    1.7

    18

    16.35

    19.0

    8.8

    2.2

    18

    16.35

    21.9

    8.8

    2.2

    18
