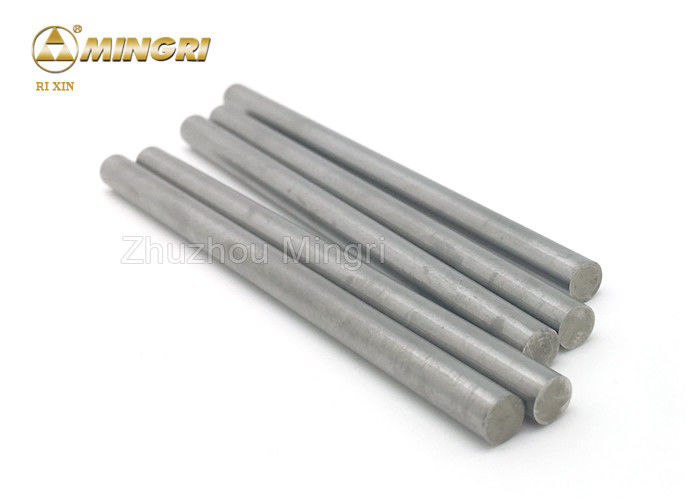

    YG10X YL10.2 Tungsten Carbide Rod

    Product Details:

    Place of Origin: china
    Brand Name: Ri Xin
    Certification: ISO9001:2008 ISO14001:2004
    Model Number: Various

    Payment & Shipping Terms:

    Minimum Order Quantity: 5kg
    Packaging Details: First in small cartons filled with cotton, then in bigger cartons.
    Delivery Time: 7-20 days depending on the quantity
    Supply Ability: 30 ton per month
    Get Best Price Contact Now

    Detail Information

    Product Name: YG10X YL10.2 YG12X YG13 YG15 Tungsten Carbide Rod For End Mill And Drill Material: Tungsten Carbide, Cemented Carbide, Hard Metal, TC, Hard Alloy, Widia
    Grade: K10, K20, K30, K40, YG10X, YL10.2, YG13, YG12X, YG15 Grain Size: Medium Or Fine
    Type: Solid Carbide Rods, Rods With Double Helix Holes, Rods With Single Straight Hole, Rods With Two Straight Holes Application: End Mill, Drill, Punch, Mould, Burr
    High Light:

    Cemented carbide rods

    ,

    Tungsten Carbide Round Bar

    Product Description

    YG10X YL10.2 Tungsten Carbide Rod

    YG10X YL10.2 YG12X YG13 YG15 Tungsten Carbide Rod for End Mill and Drill





    Description:

    With high hardness and wear / corrosion resistance, suitable for the manufacturing of various kind of

    solid cemented carbide tools for the machining of heat-resistant alloy and Ti alloy,also suitable for

    the manufacturing of micro drills used for machining PCB.

    --Dimension: diameter from 3-25mm, length from 38-330mm;

    --with one coolant hole or two coolant holes or without coolant hole;

    --ground and unground;



    Applications:

    Used in welding/ making the drill bits/  endmills / reamers .automobile special cutters, printed circuit board

    special cutters, engine special cutters, Horologe processing special cutters, integral vertical milling cutter,

    graver and etc. Besides, they can bu used for making of cemented carbide stamping head, Core

    bar and perforation tools.



    Grade:

    Grade

    Density
    g/cm3

    T.R.S
    MPα

    Hardness
    HRA

    Properties & Applications

    YL50

    13.86

    2060

    1095

    It is suitable for manufacturing punching dies and tools.

    YU06

    14.7

    3000

    2050

    It is suitable for manufacturing milling cutters for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy etc.

    YU08

    14.56

    4000

    1900

    It is suitable for manufacturing micro-drills with diameter less than 0.8mm for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy etc.

    YU09

    14.36

    3900

    1950

    It is suitable for manufacturing micro-drills for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy etc.

    YU12

    14.05

    4000

    1750

    It is suitable for manufacturing solid cemented carbide tools for machining steels that are corrosion and heat resistant steel, stainless steel, titanium alloy, and non-ferrous metals.

    YF06

    14.86

    3800

    1800

    It is suitable for manufacturing drills with big diameters of 3.2-6.3mm for machining PCB, drills of 0.8-3.2mm and mills, and it is also suitable for making solid carbide tools for machining aluminum alloy, plastic, PTFE and compound materials, such as carbon fiber, etc.

    YF08

    14.55

    3900

    1800

    It is suitable for manufacturing micro-drills for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy, etc.

    YG6X

    14.8

    1800

    1550

    It is suitable for manufacturing solid carbide tools and wear parts.

    YG8

    14.6

    2400

    1400

    It is suitable for manufacturing carbide core rods and wear parts.

    YL10.2

    14.5

    4000

    1550

    It is suitable for manufacturing various kinds of solid cemented carbide tools for machining heat-resistant alloys and Ti alloy etc. It is also suitable for manufacturing micro-drills for machining PCB.



    Size and drawing:



    Solid carbide rod

    YG10X YL10.2 Tungsten Carbide Rod 0



    (Unit):mm



    Diameter

    Tolerance

    Length

    Tolerance

    D≤5

    0-0.3

    330<L

    0-6.0

    5<D≤20

    0-0.4

    20<D

    0.1-0.6



    310mm or 330mm



    (Unit):mm



    Diameter

    Tolerance

    Diameter

    Tolerance

    1.2


    +0.20

    16.7


    +0.50

    1.7

    17.2

    2.2

    17.7

    2.7

    18.2


    +0.60

    3.2

    18.7

    3.7

    19.2

    4.2

    19.7

    4.7

    20.2

    5.2

    20.7

    5.7


    +0.25

    21.2

    6.2

    21.7

    6.7

    22.2

    7.2

    22.7

    7.7

    23.2

    8.2


    +0.30

    23.7

    8.7

    24.2


    +0.70

    9.2

    25.2

    9.7

    25.7

    10.2

    26.2

    10.7

    27.2

    11.2


    +0.35

    28.2

    11.7

    29.2

    12.2

    30.2

    12.7


    +0.45

    31.2

    13.2

    32.2

    13.7

    33.2

    0.80

    14.2


    +0.50

    34.2

    14.7

    35.5

    15.2

    36.2

    15.7

    382

    16.2

    40.2





    Usage



    End mills:



    YG10X YL10.2 Tungsten Carbide Rod 1



    Package:



    YG10X YL10.2 Tungsten Carbide Rod 2
