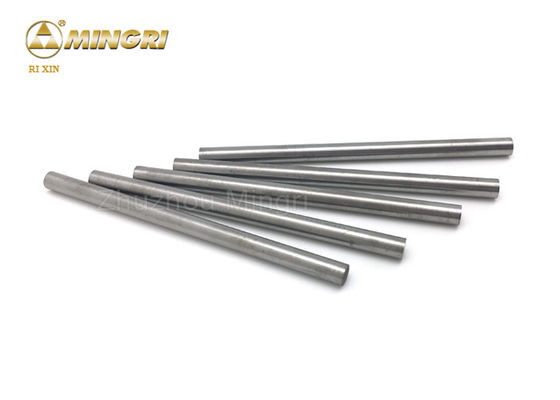

Iso Cemented Carbide Rod Grade Round Welding Solid Hard Alloy Bar Cutting Tools

Iso Cemented Carbide Rod Grade Round Welding Solid Hard Alloy Bar Cutting Tools

Product Details:

Place of Origin: China,Hunan
Brand Name: rixin
Certification: ISO9001:2015
Model Number: XQ-YB-01

Payment & Shipping Terms:

Minimum Order Quantity: 5kg
Price: 56.36$/kg
Packaging Details: step 1, wrapped carbide solid rods in paper to avoid carbide solid rods to broke step 2, put the carbide solid rods in inner small carton box step 3, put the inner box into outter carton and fill the carton with foamed plastic step 4, wrap the carton wi
Delivery Time: 15-25 business days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50tons/month
Get Best Price Contact Now

Detail Information

Material: Cemented Carbide Grade: YL10.2/YG10X/YU08/09/12
Size: OD3-10mm,Length:300-330mm Type: Polished Parts Or Blanks
Density: 13.9/14.9 Hardness: 87/92
T.R.S: 2400/4000 Dimension: OD 3-20 Mm Length 330 Mm
High Light:

Cemented carbide rods

,

solid carbide rods

Product Description



OD 3-20 mm Length 330 mm cemented carbide rods grade round welding solid alloy bar tools



e manufacture carbide thread boring rods in stock with HIP sintering and 100% virgin material.Our grade include ISO K05 to K40, from machining carbon steel to aluminum , non-ferrous metals and titanium or we develop grade for your applications.



Standard ultra-fine grade covers a number of applications in cutting tools. The stability and high performance of the series bring many benefits to our customers and inspires them to develop quality products.

Grades D(g/cm3) HRA

N/mm2

YL50 13.9 87 2200
YU06 14.7 2050 3000
YU08 14.56 1900 4000
YU09 14.36 1950 3900








Production



1, Soon after the order is confirmed, carbide thread boring rods products will start to prepare the RTP powder as per customer’s requirement with our wet-grinding machine

2, Before mass production, we need to do a trial pressing and sintering using every mould, and we check the appearances and the sizes of carbide thread boring rods samples with micrometer, projectors etc. to ensure that the requirements of the drawings can be met before batch production

3, Bulk production ,press the raw materials to shape blanks,and carbide thread boring rods blanks must be passed by semi finished inspection,


4, Then sinter blanks to finish (HIP) and finished products inspection, we have 10 sets of vacuum sintering furnace and 2 sets of HIP in the factory ensure the best quality and production capacity.



5, 1). cleaning/tumbling is to make the carbide thread boring rods look more beautiful.
2).The carbide thread boring rods can be ground according to customers’ order tolerance requirement



Application



Tungsten carbide rods are mostly applied for end mill and drill with sub-micron grain grade YG10X,for non-ferrous precision cutting and wood cutting with sub-micron grain grade YG6X,and for fibreglass reinforced plastics,titanium alloys,hardened steel with ultra-fine grain grade YG8X,ECT. It maintains features as stable mechanical properties, easy to welding, high wear-resisting, etc. All of our tungsten Carbide Products are made from the high-purity Original/Virgin Raw Materials and HIP/Sintered, be of very high quality and excellent performances.



Grade Density T.R.S Hardness Properties & Applications
g/cm3 MPα HRA
YL50 13.86 2060 1095.0 for manufacturing punching dies and tools.
YU06 14.7 3000 2050.0

for manufacturing milling cutters for machining PCB.

also for manufacturing various kinds of solid cemented carbide tools for machining

glass fiber, wood, plastics, paper and brass, Al alloy etc.

YU08 14.56 4000 1900.0

for manufacturing micro-drills with diameter less than 0.8mm for machining PCB.

also for manufacturingvarious kinds of solid cemented carbide tools formachining

glass fiber, wood, plastics, paper and drass, Al alloy etc.

YU09 14.36 3900 1950.0

for manufacturing micro drills for machining PCB.

It is also suitable for manufacturing various for machining glass fiber,

wood, plastics, paper and brass, Al alloy etc.kinds of solid cemented carbide tools.

YU12 14.05 4000 1750.0

for manufacturing solid cemented carbide tools for

machining steels that are corrosion and heat resistant steel,stainless steel, titanium alloy,

steels that are corrosion and heat resistant steel, stainless steel, titanium alloy,

YF06 14.86 3800 1800.0 for manufacturing drills with big diameters of 3.2-6.3mm for machining PCB, drills of 0.8-3.2mm and mills, and it is also suitable for making solid carbide PCB, drills of 0.8-3.2mm as carbon fibre, etc.



Iso Cemented Carbide Rod Grade Round Welding Solid Hard Alloy Bar Cutting Tools 0

Packing



step 1, wrapped carbide thread boring rods in paper to avoid carbide thread boring rods to broke
step 2, put the carbide thread boring rods in inner small carton box
step 3, put the inner box into outter carton and fill the carton with foamed plastic
step 4, wrap the carton with packaging tape
step 5, you can choose any delivery way such as DHL,TNT,UPS ect.
